Intel NUC 11 Pro NUC11TNHi7 Tiger Canyon Home & Business Mini PC Mini Desktop 11th Gen Intel® Core i7-1165G7 Processor Upto 4.7 GHz Turbo,4 Cores,8 Threads,12 MB L3 Cache(Without RAM&SSD)
- Processor: 11th Generation Intel® Core i7-1165G7 processor 2.8 GHz@28W, up to 4.7 GHz Turbo, 4 Cores, 8 Threads, 12 MB L3 Cache
- Intel offers 3 years warranty on barebone NUC, WEELIAO offers 3 years warranty on SSD and RAM
- Please Note:The manufacturer box maybe opened for it to be tested and inspected and to install the upgrades to achieve the specifications as advertised. Defects & blemishes are significantly reduced by our in-depth inspection & testing.
- Graphics: Intel® Iris® Xe Graphics, Up to 96 EUsMemory: Dual-channel DDR4 SODIMM slotsStorage: M.2 22x80 M-key slot for up to Gen 4 NVMe SSD, M.2 22x42 B-key slot for SATA SSD, and 2.5" drive bay (7mm)
- Other Features & Technology: Two HDMI 2.0b ports | Two Thunderbolt ports (incl. DP 1.4a and USB 4.0) on select SKUs | Intel® i225-LM Ethernet port | Three USB 3.2 Gen 2 type A ports | One USB 2.0 type A port | Qualified for 24x7 operation | Display emulation via HDMI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core Processors
Code Name Products formerly Tiger Canyon
Supported Operating Systems Windows 11 Home* | Windows 11 Pro* | Windows 10 Home | 64-bit* | Windows 10 IoT Enterprise* | Windows 10 Pro | 64-bit* | Red Hat Linux* | Ubuntu 20.04 LTS*
Board Number NUC11TNBi7
Board Form Factor UCFF (4 x 4)
Socket Soldered-down BGA
Internal Drive Form Factor M. 2 and 2.5 Drive
# of Internal Drives Supported 3
TDP 28 W
DC Input Voltage Supported 12-20 VDC
Processor Included Intel® Core i7-1165G7 Processor (12M Cache | up to 4.70 GHz)
Total Cores 4
Total Threads 8
Lithography 10 nm SuperFin
Max Turbo Frequency 4.70 GHz
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIM
Ms
Max # of Memory Channels 2
Max # of DIM
Ms 2
ECC Memory Supported No
Processor Graphics
Integrated Graphics Yes
Graphics Output Dual HDMI 2.0 b w/HDMI CEC | Dual DP 1.4 a via Type C
# of Displays Supported 4
Expansion Options
PCI Express Revision Gen 4 (m. 2 22×80 slot); Gen 3 (otherwise)
PCI Express Configurations PCIe x4 Gen 4: M. 2 22×80 (key M) PCIe x1
Gen 3: M. 2 22×42 (key
B) PCIe x1: M. 2 22×30 (key E)
M. 2 Card Slot (wireless) 22×30 (E)
M. 2 Card Slot (storage) 22×80 NVMe (M); 22×42 SATA (B)
I/O
Specifications
# of USB Ports 4

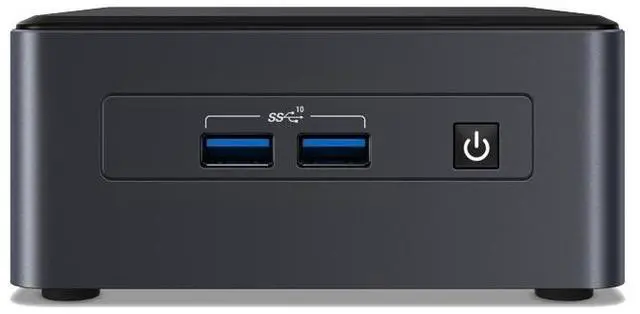

USB Configuration Front: 2x USB 3.2

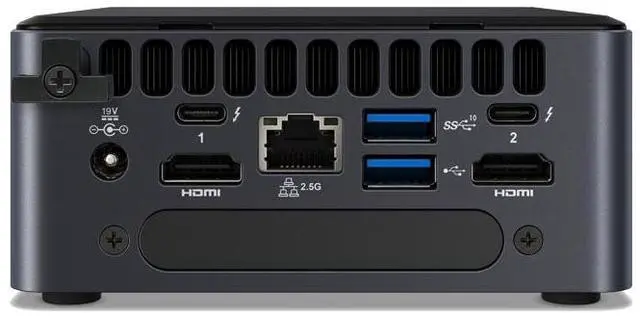

Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0
Internal: 1x USB 3.2 on m. 2 22×42 (pins) | 2x USB 2.0 (headers)
Total # of SATA Ports 1
Serial Port via Internal Header Yes
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless Intel® Wi-Fi 6 AX201
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR | RST | 5V | 5Vsby | 3.3V sby); Internal 2×2 power connector
# of Thunderbolt Ports 1x Thunderbolt 4 | 1x Thunderbolt 3
Package
Specifications

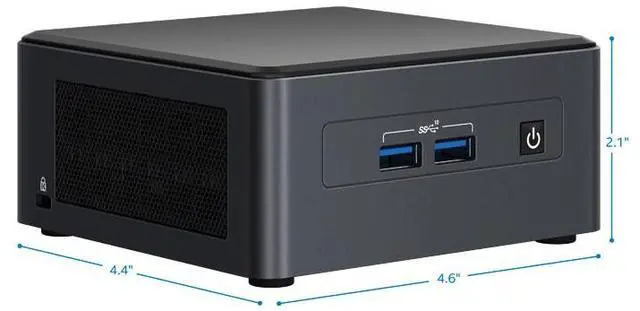

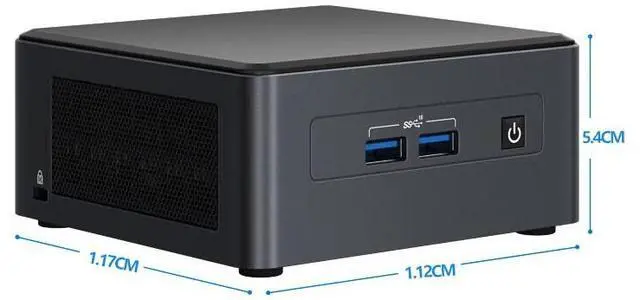

Chassis Dimensions 117 x 112 x 54 [mm] (LxWxH)
Advanced Technologies
Intel® Optane Memory Supported No
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® ME Firmware Version 15
Intel® Virtualization Technology (VT-x) Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes
