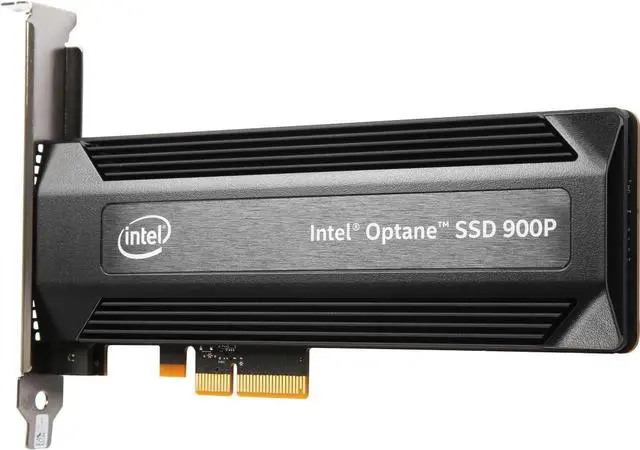

Main image of Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

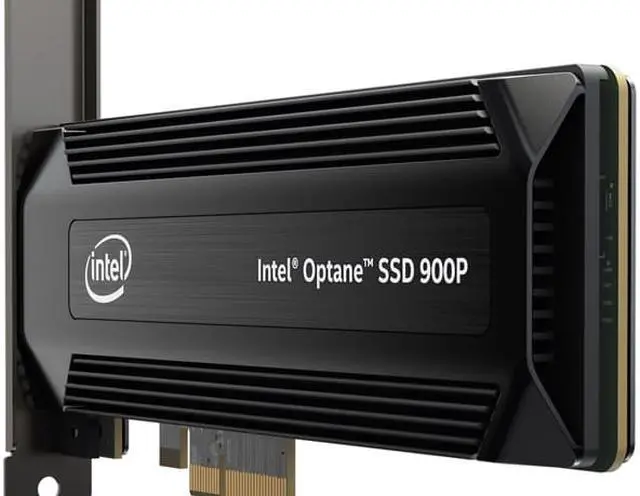

Alt view image 2 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

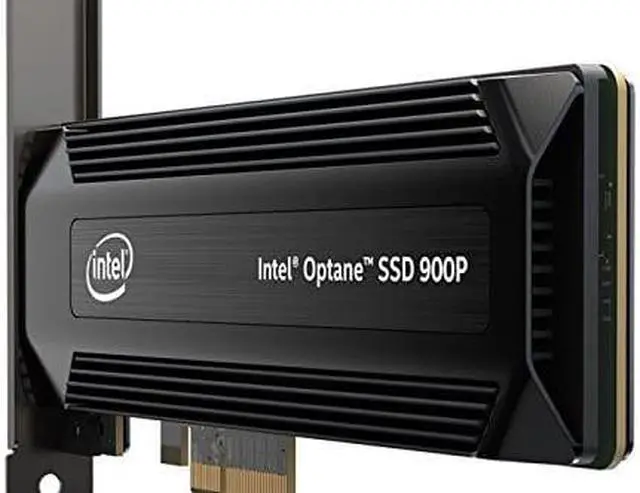

Alt view image 3 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

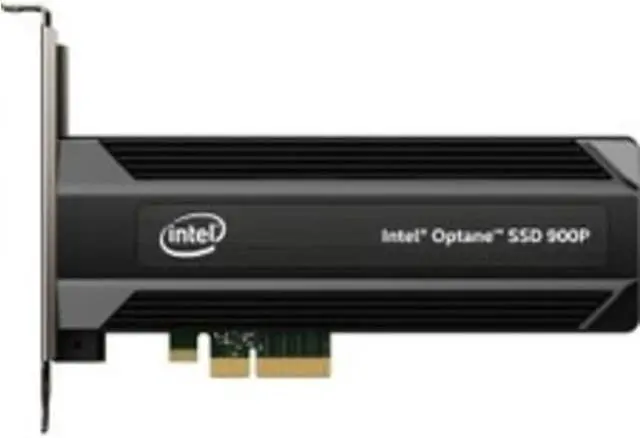

Alt view image 4 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Alt view image 5 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Alt view image 6 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Alt view image 7 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Alt view image 8 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Alt view image 9 of 9 - Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Shop All Intel Products

Intel Optane SSD 900P (280GB, AIC PCIe 3.0 x4, 20nm, 3D XPoint)

Be the first to review this product...

AIC
280GB
PCI-Express 3.0 x4

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel Optane 900P 280 GB Internal Solid State Drive - PCI Express - Plug-in Card - 2.44 GB/s Maximum Read Transfer Rate - 1.95 GB/s Maximum Write Transfer Rate - 1 Pack - 256-bit
Encryption StandardStorage Capacity: 280
GBEncryption Standard: 256-bitMaximum
Read Transfer Rate: 2.44
GB/sMaximum Write Transfer Rate: 1.95
GB/sWireless LAN: NoDrive
Interface: PCI ExpressDrive
Interface Standard: PCI Express 3.0 x4Operating
Power Consumption: 14
WDrive Type: InternalForm
Factor: Plug-in
CardWeight (Approximate): 8.11 ozLimited
Warranty: 5 Year

Model
Brand	Intel
Series	Optane SSD 900P Series
Model	SSDPED1D280GAX1
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Details
Form Factor	AIC
Capacity	280GB
Memory Components	3D XPoint
Interface	PCI-Express 3.0 x4

Performance
Max Sequential Read	Up to 2500 MBps
Max Sequential Write	Up to 2000 MBps
4KB Random Read	Up to 550,000 IOPS
4KB Random Write	Up to 500,000 IOPS
Read Latency	10 µs
Write Latency	10 µs
MTBF	1,600,000 hours

Features
Features	Near-Symmetric Read/Write performance Ultra-low Latency High performance at low queue depth Intel quality and reliability

Environmental
Power Consumption (Idle)	5W
Power Consumption (Active)	14W
Operating Temperature	0°C ~ +70°C
Max Shock Resistance	50G (11 ms)
Max Vibration Resistance	Operating: 2.17 GRMS (5-700 Hz) Non-Operating: 3.13 GRMS (5-800 Hz)

Dimensions & Weight
Weight	230.00g

Additional Information
First Listed on Newegg	February 27, 2018
