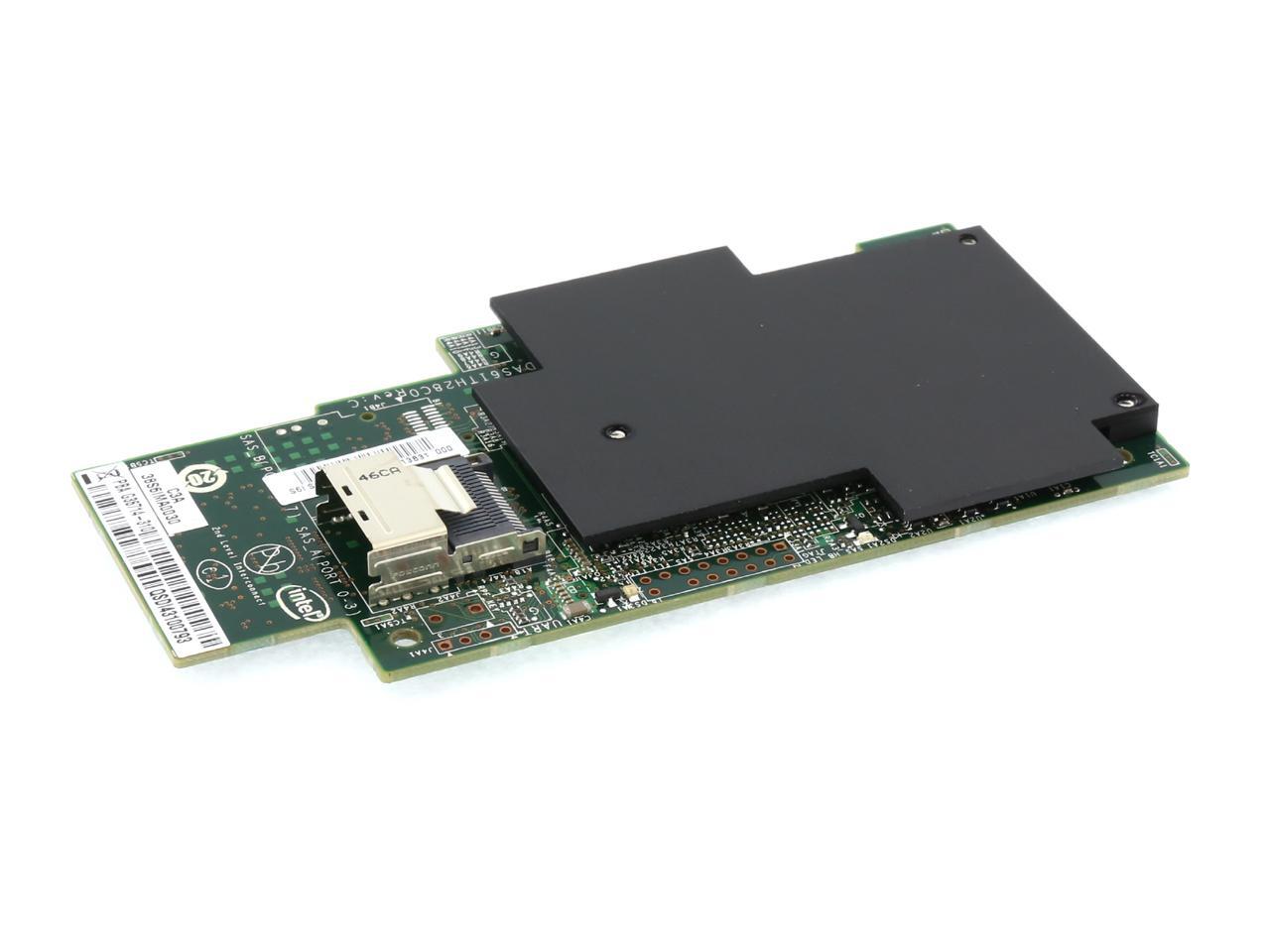

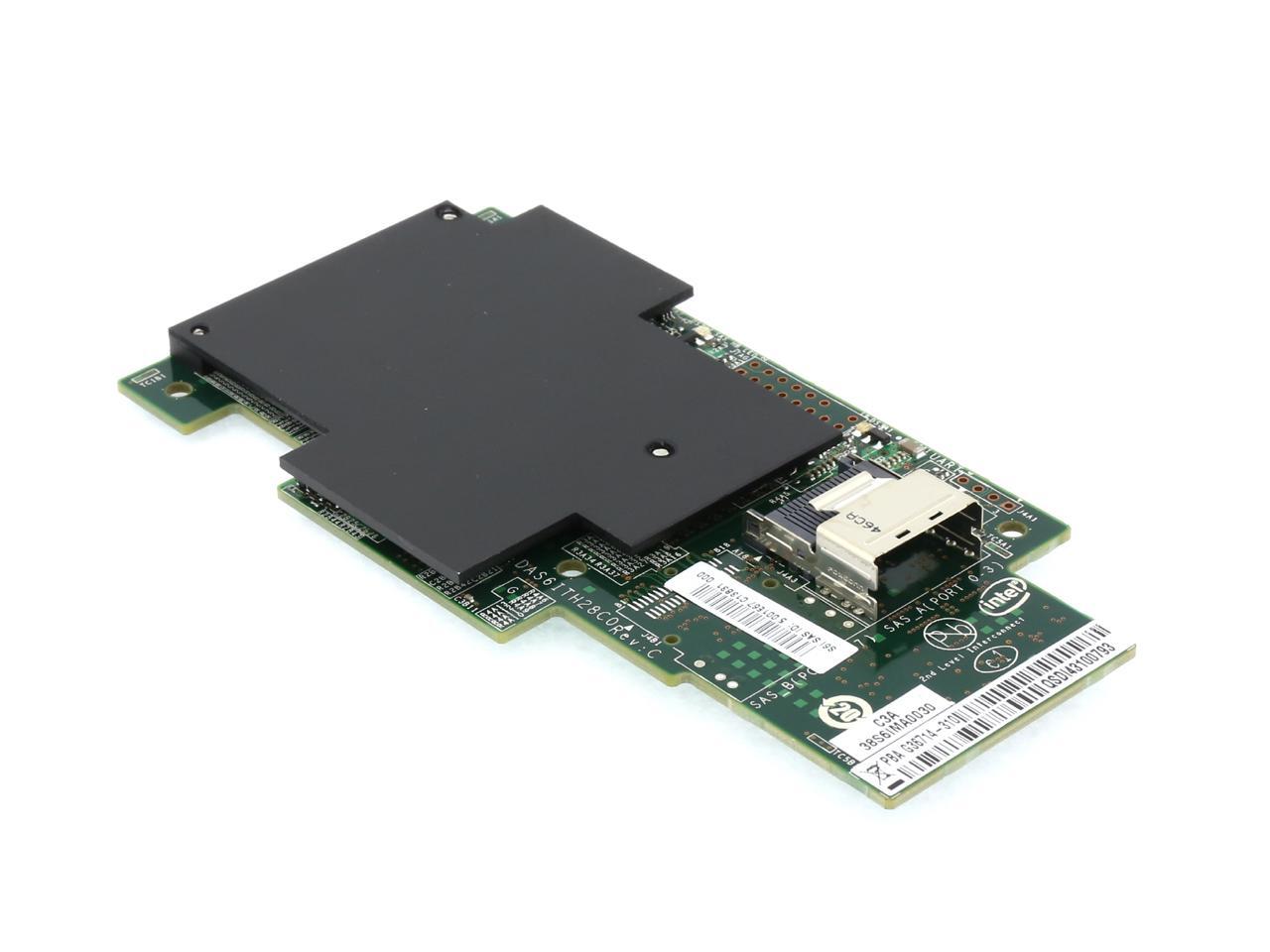

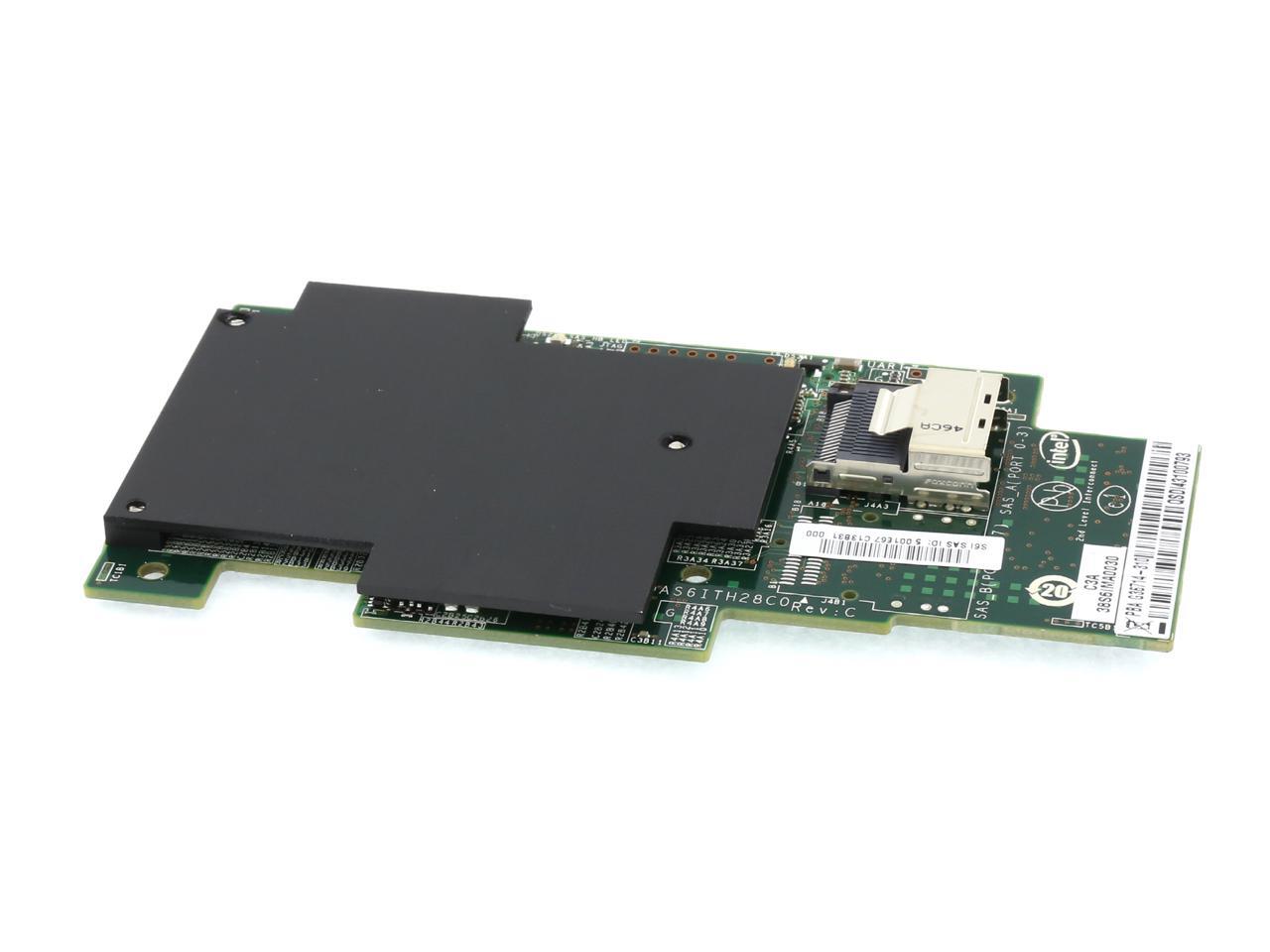

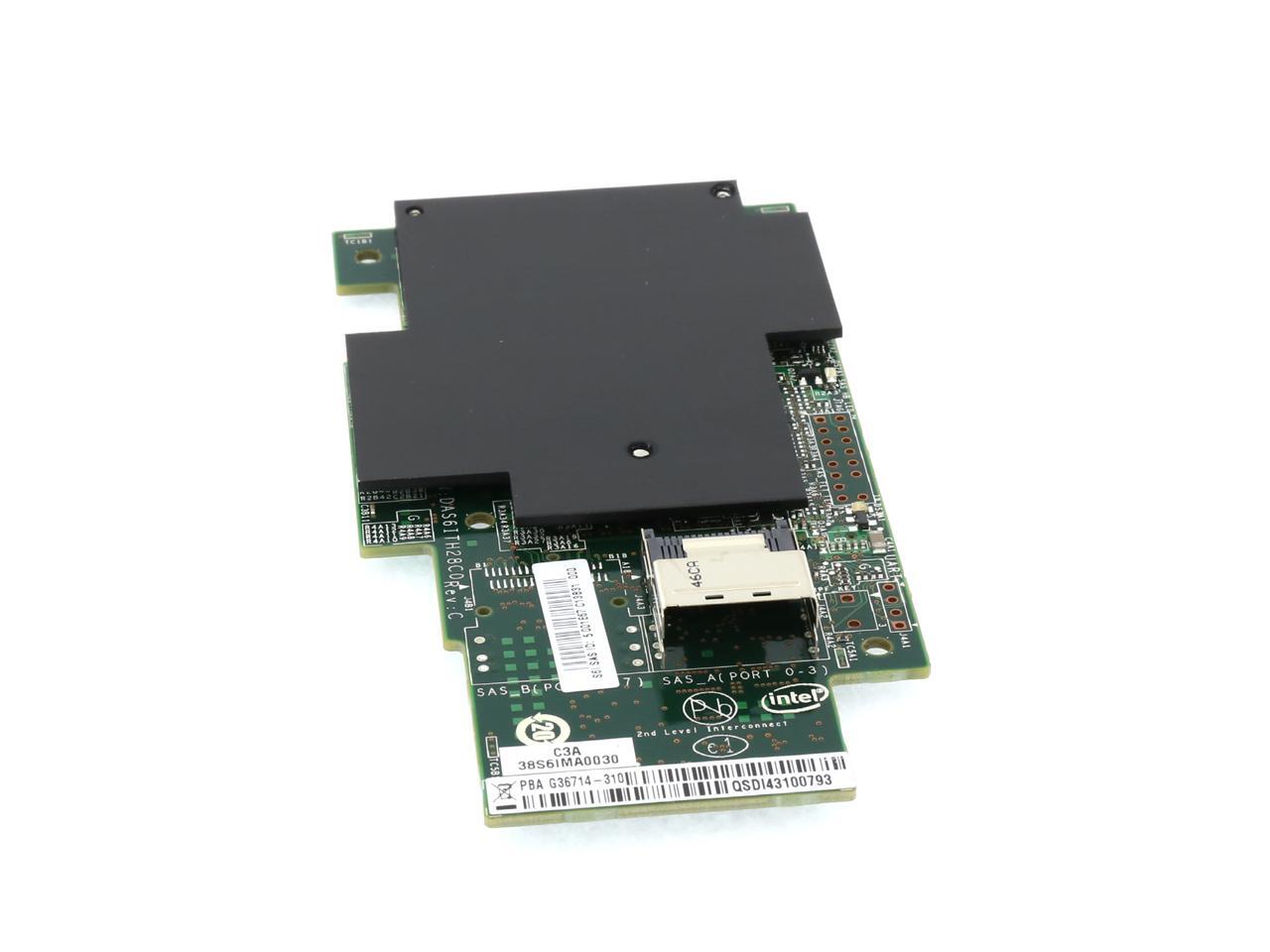

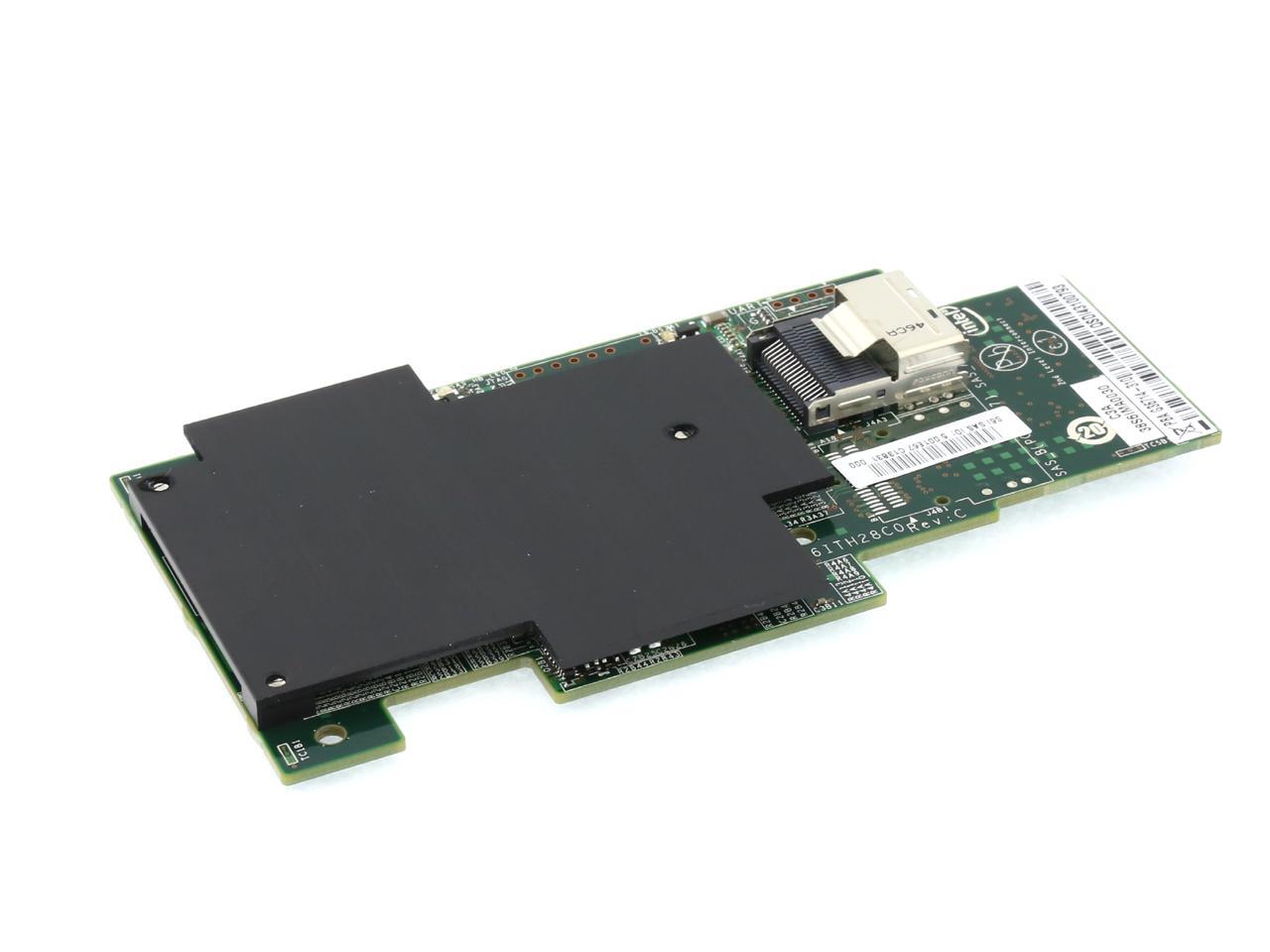

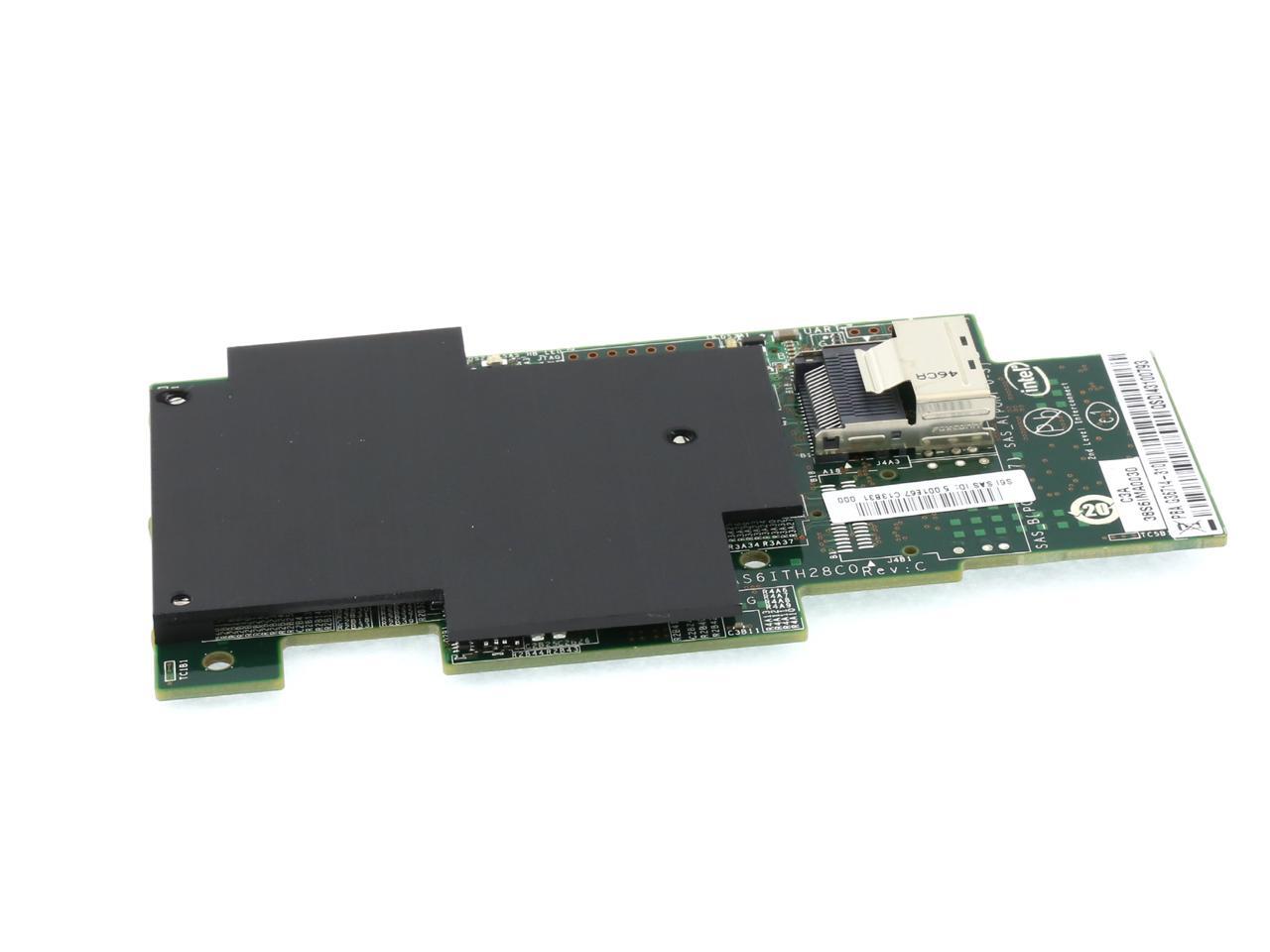

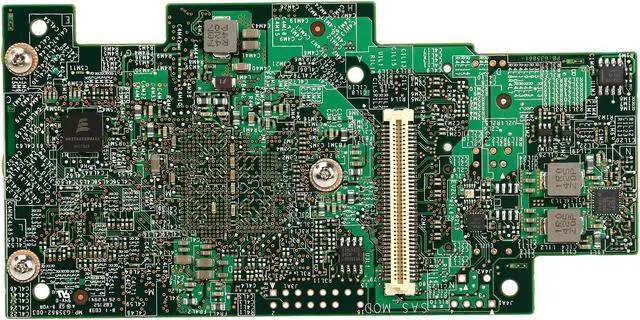

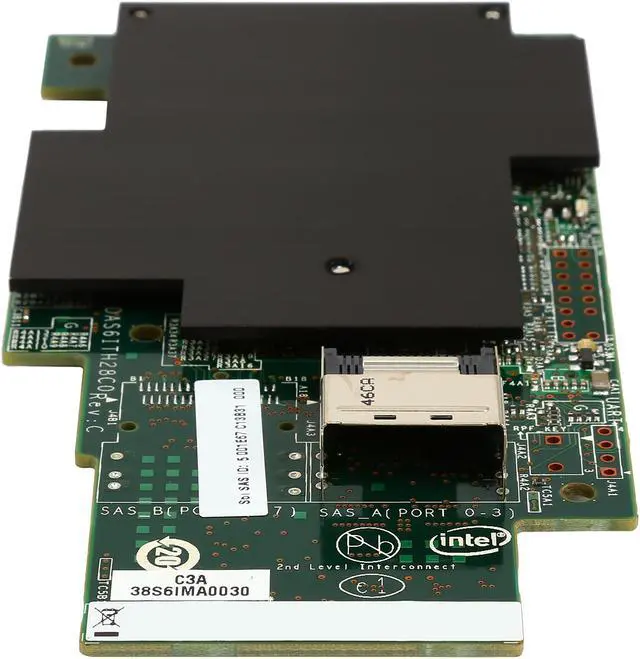

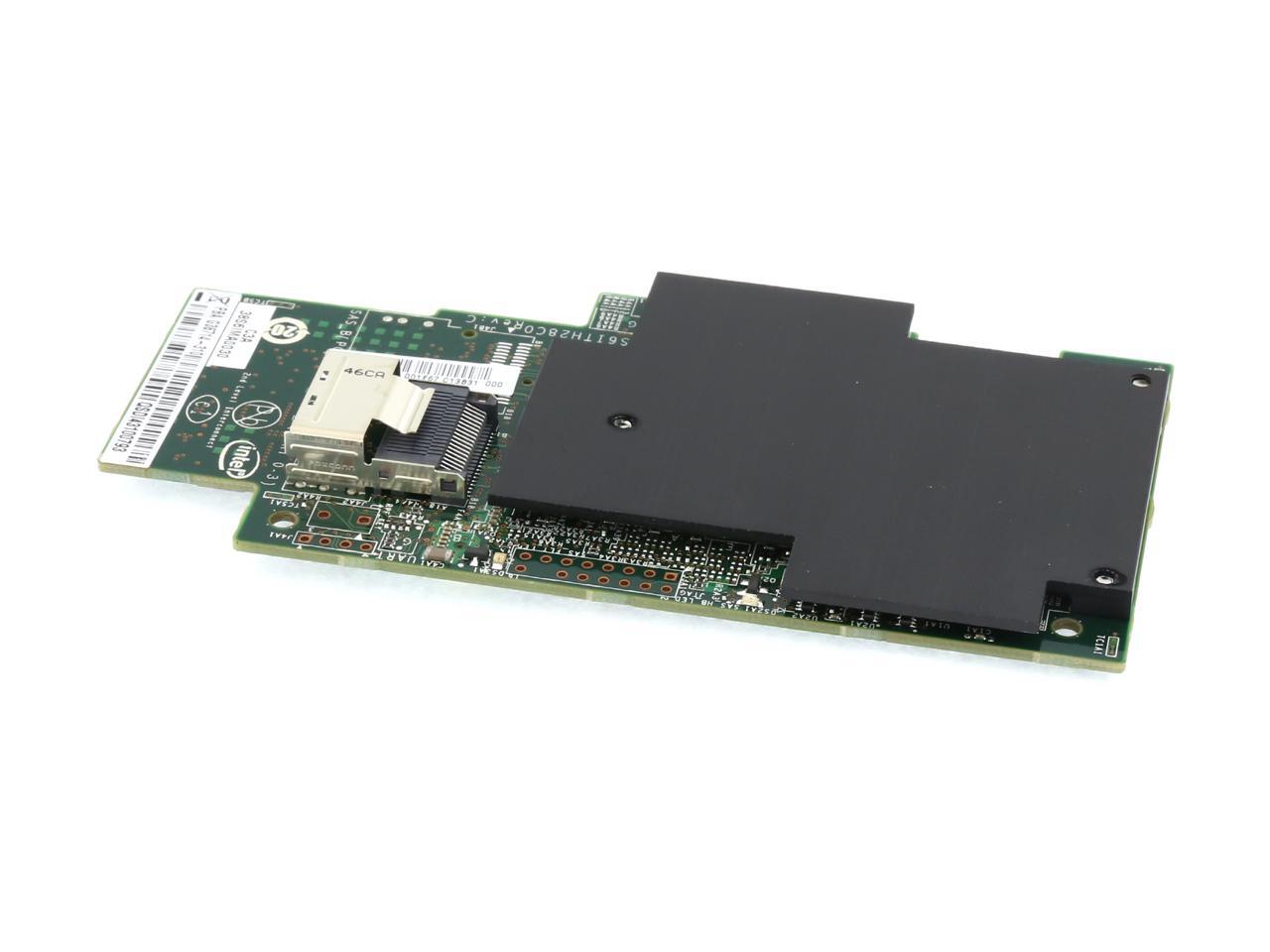

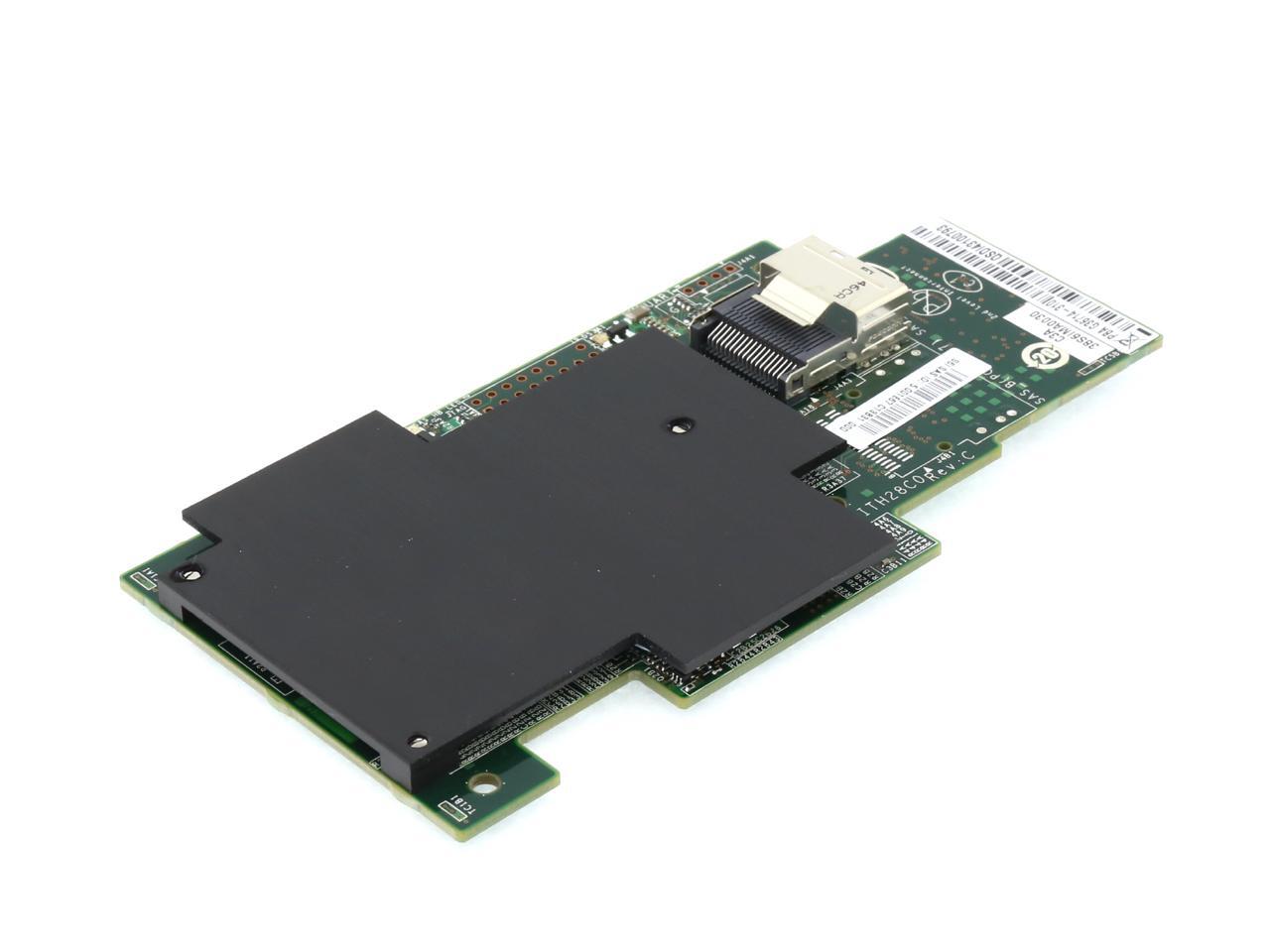

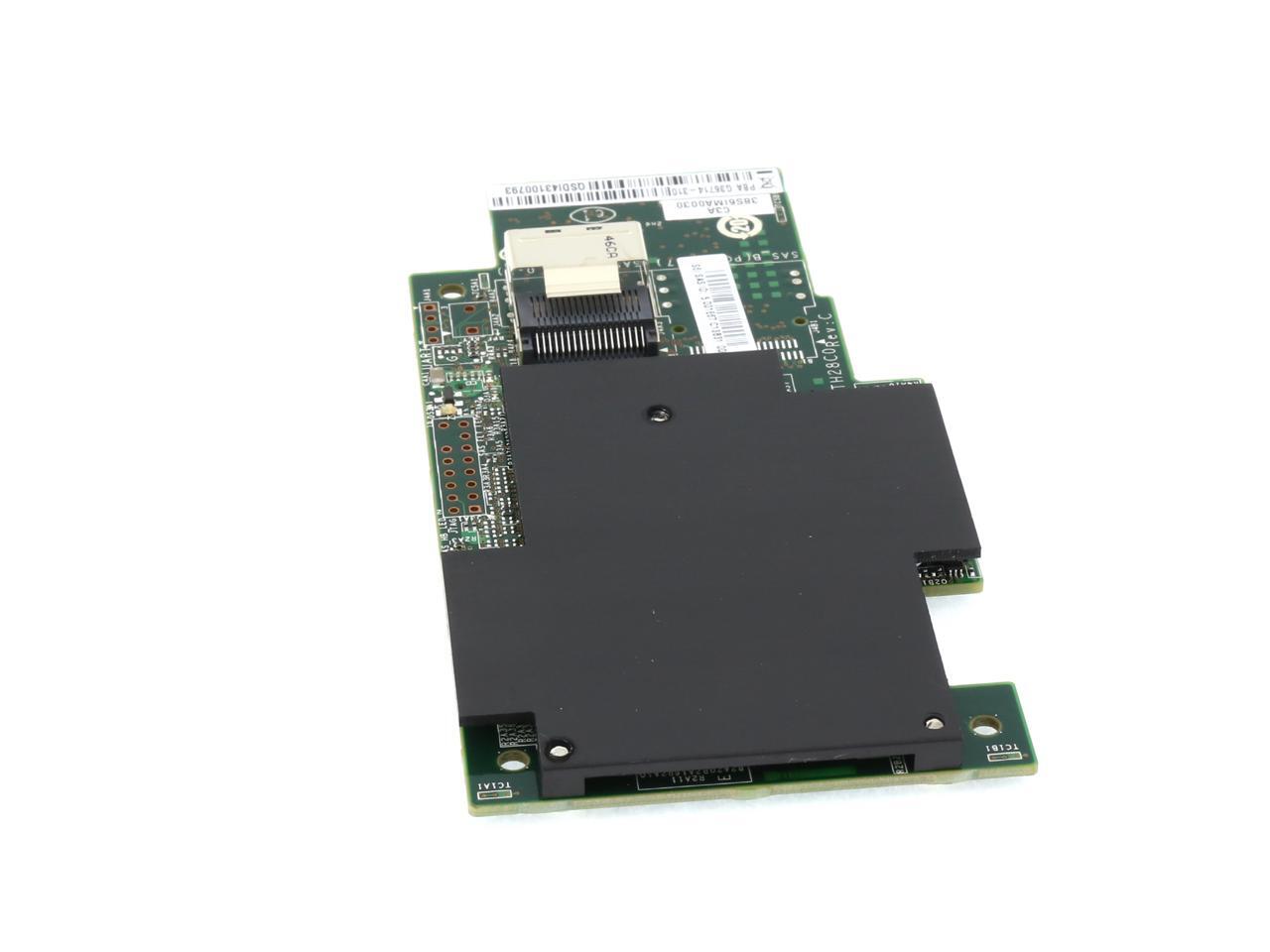

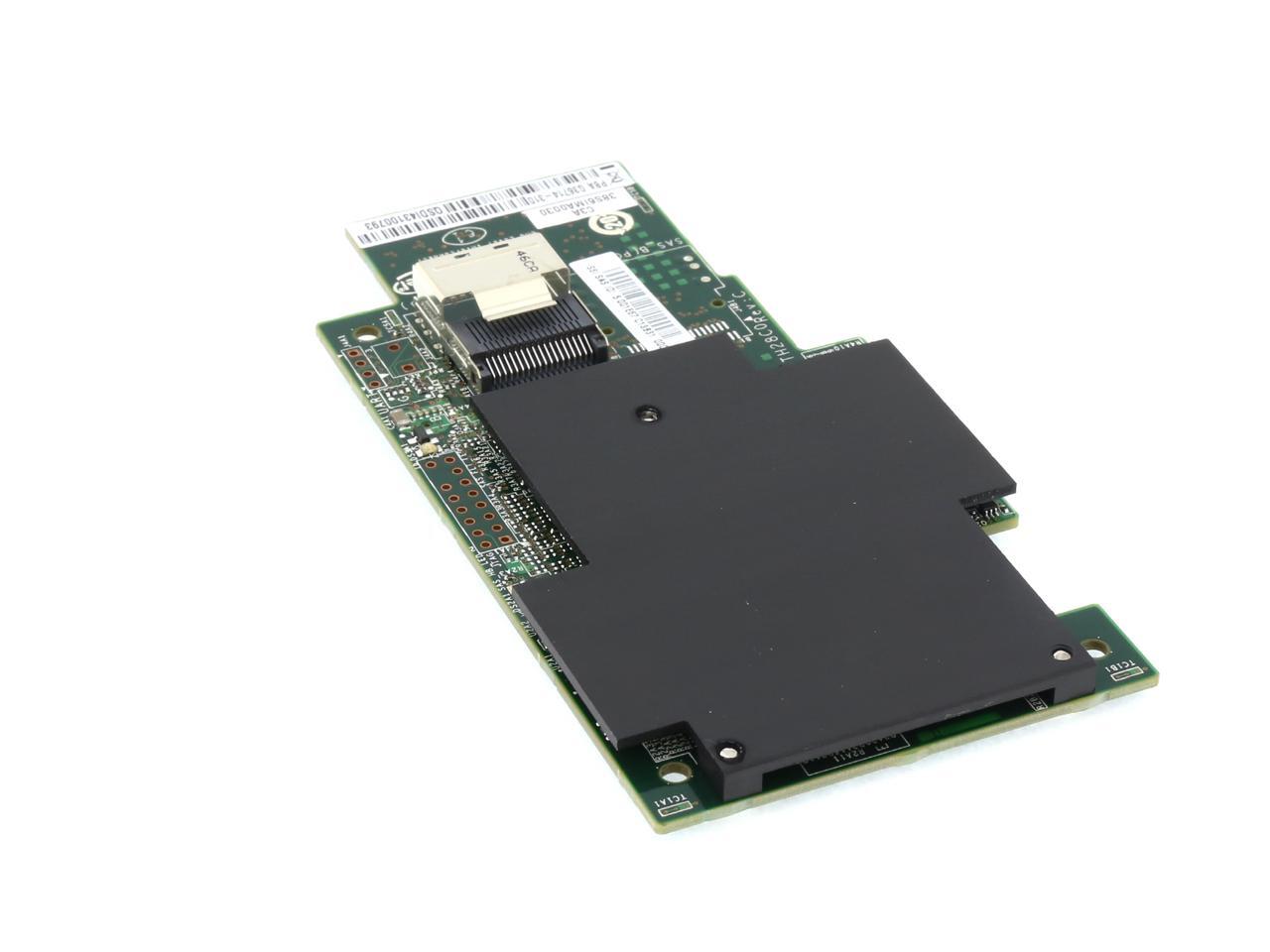

Intel RMS25JB040 PCI-Express 2.0 x8 SATA / SAS Integrated RAID Module
- RAID 0/1/1E/10, JBOD
- 1 x SFF-8087 mini-SAS Internal Connectors
- Up to 6Gb/s
Overview
Specs
Reviews (1)

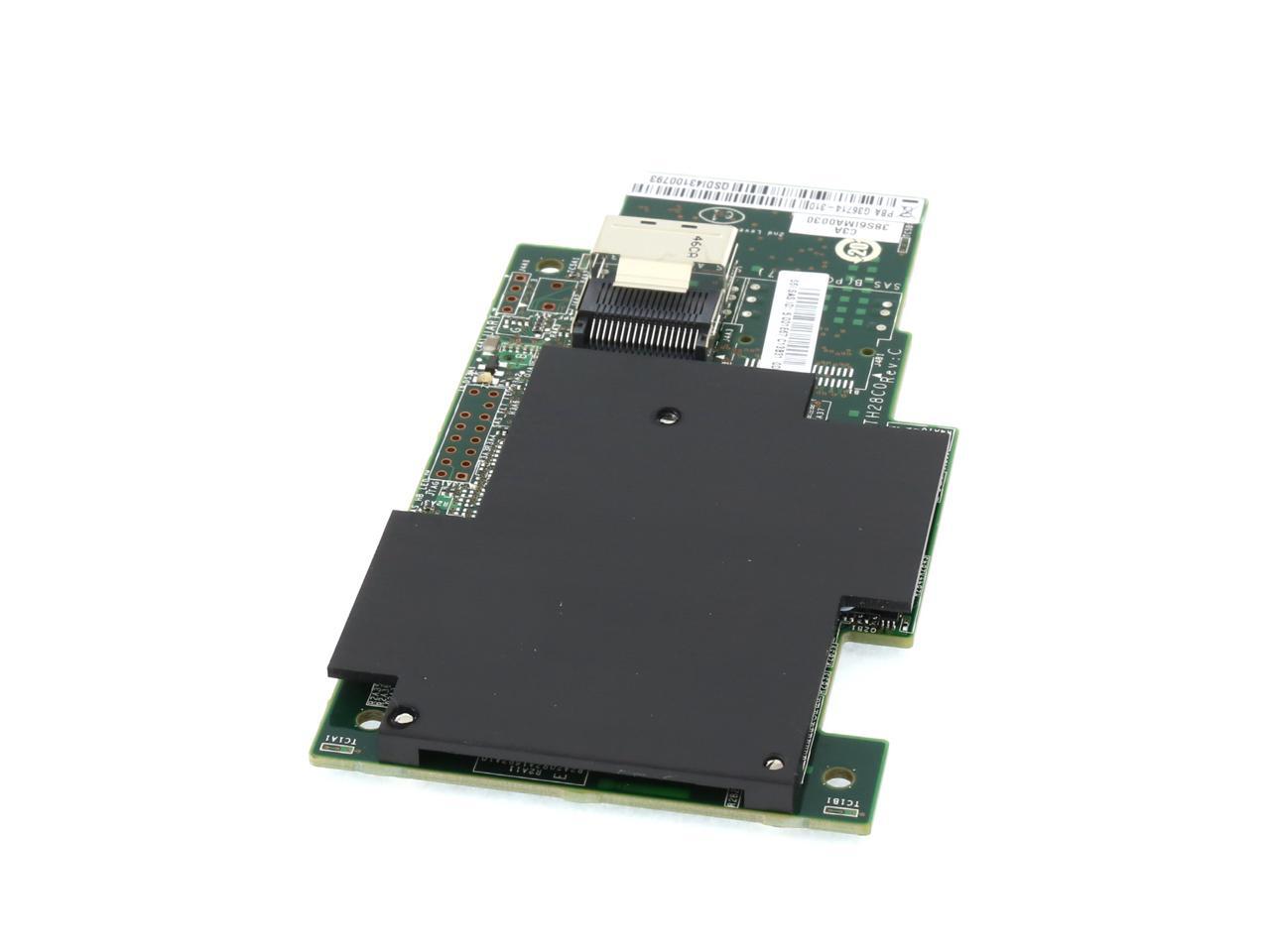

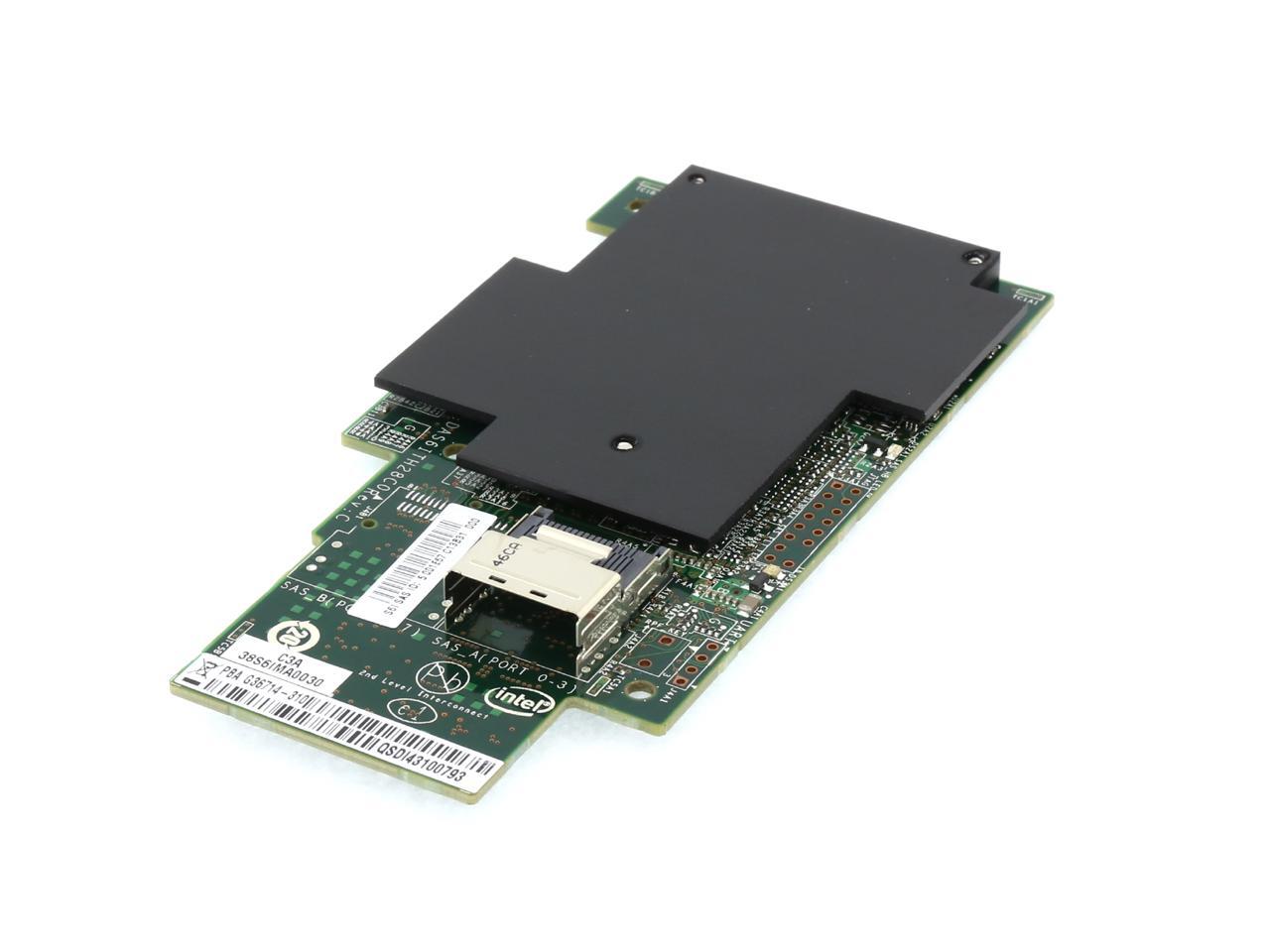

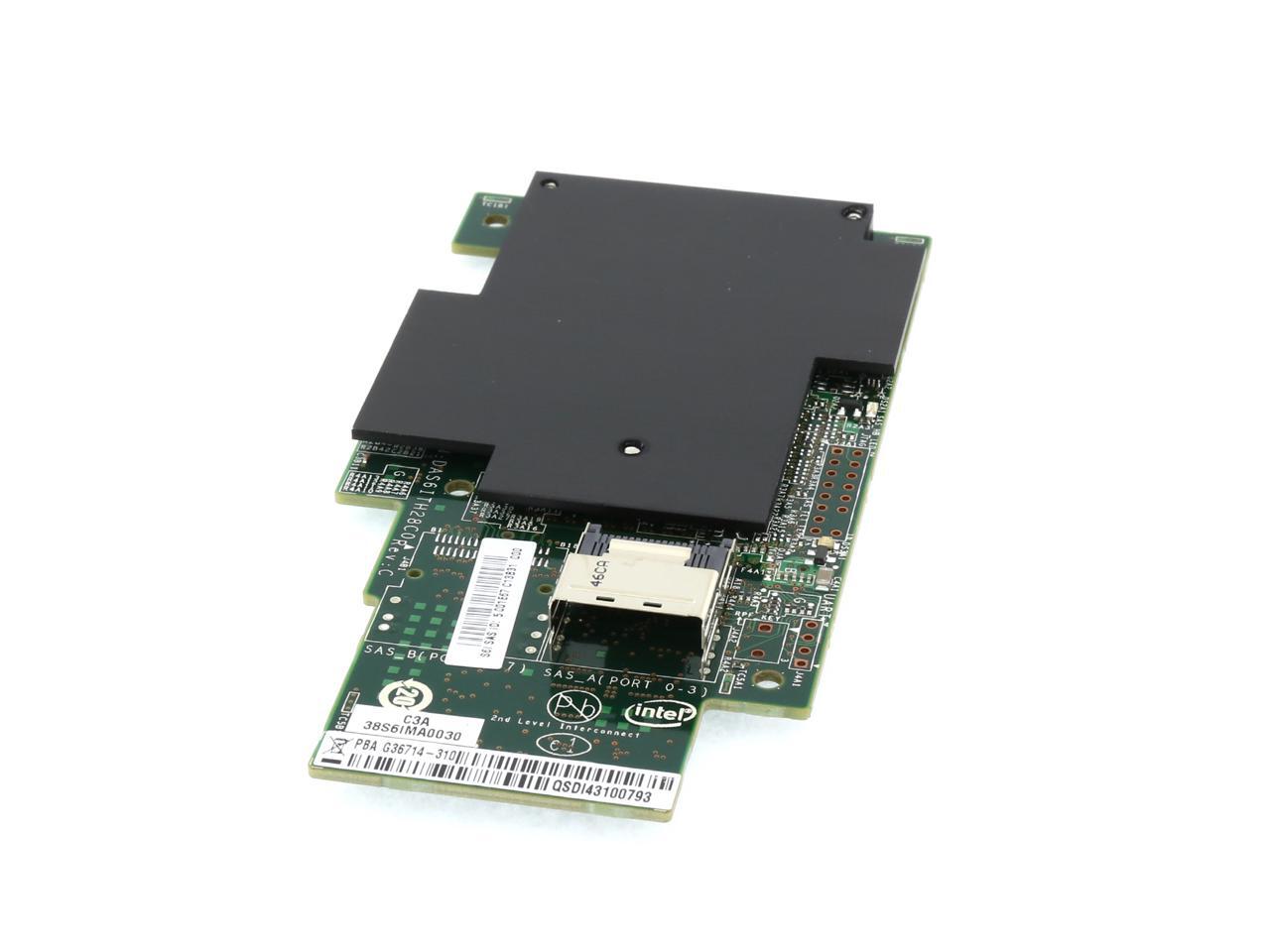

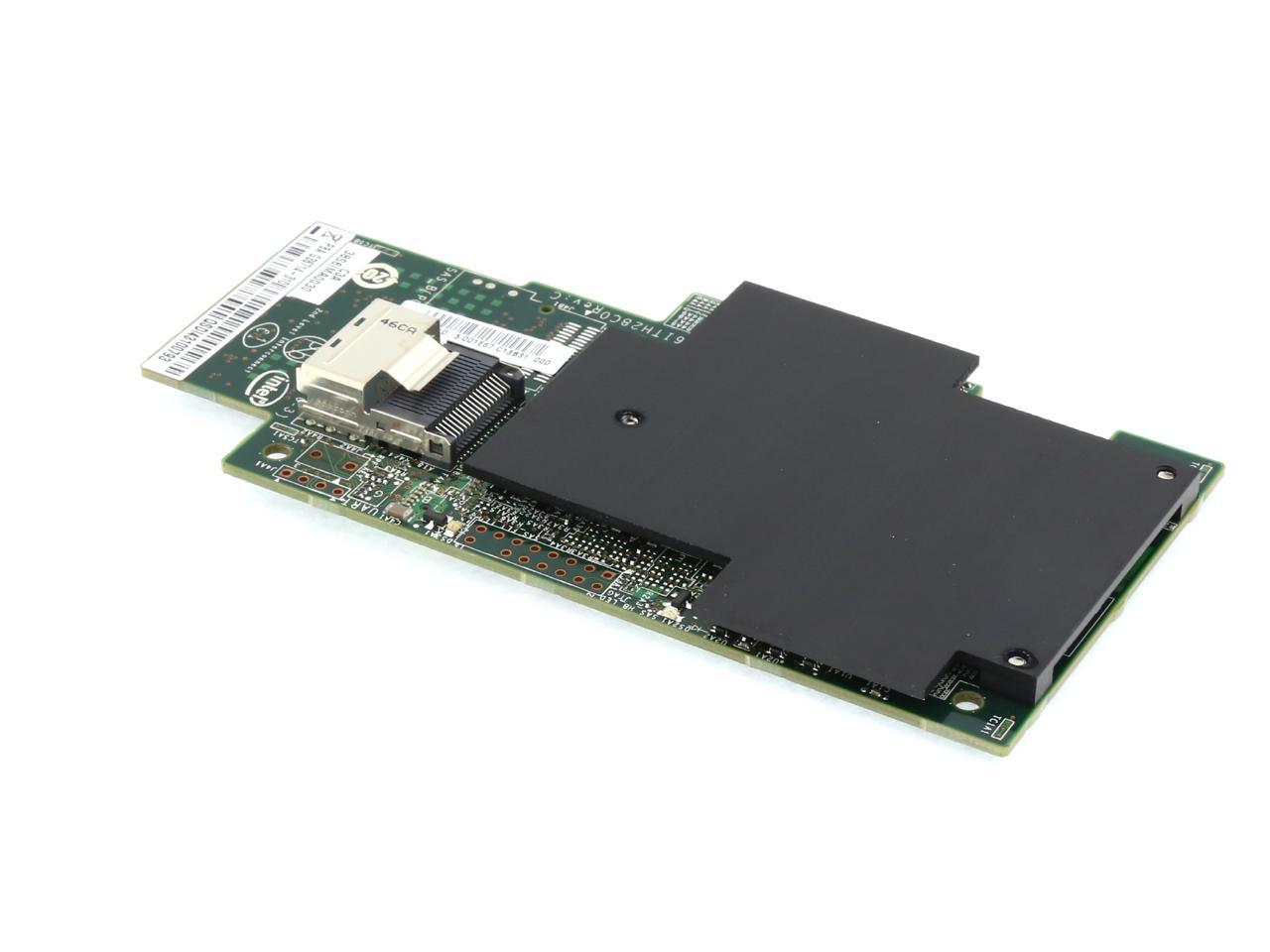

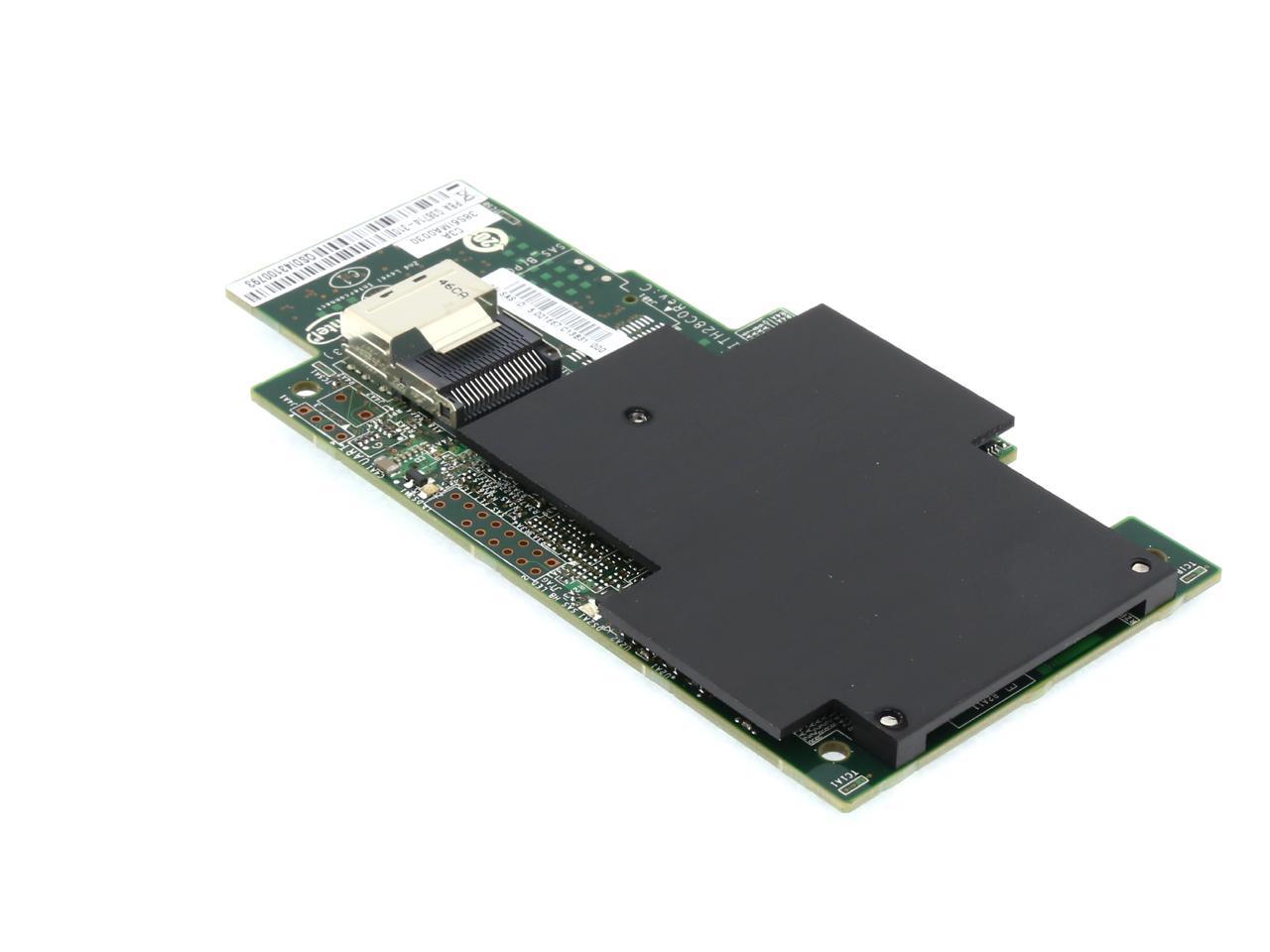

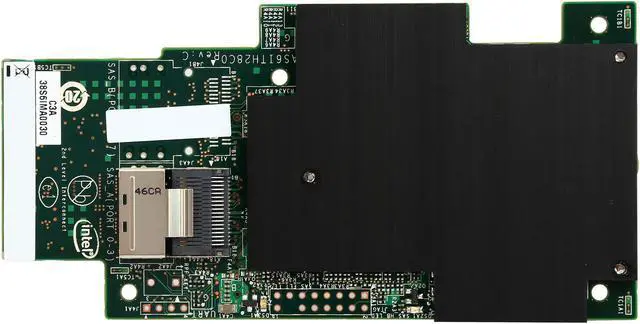

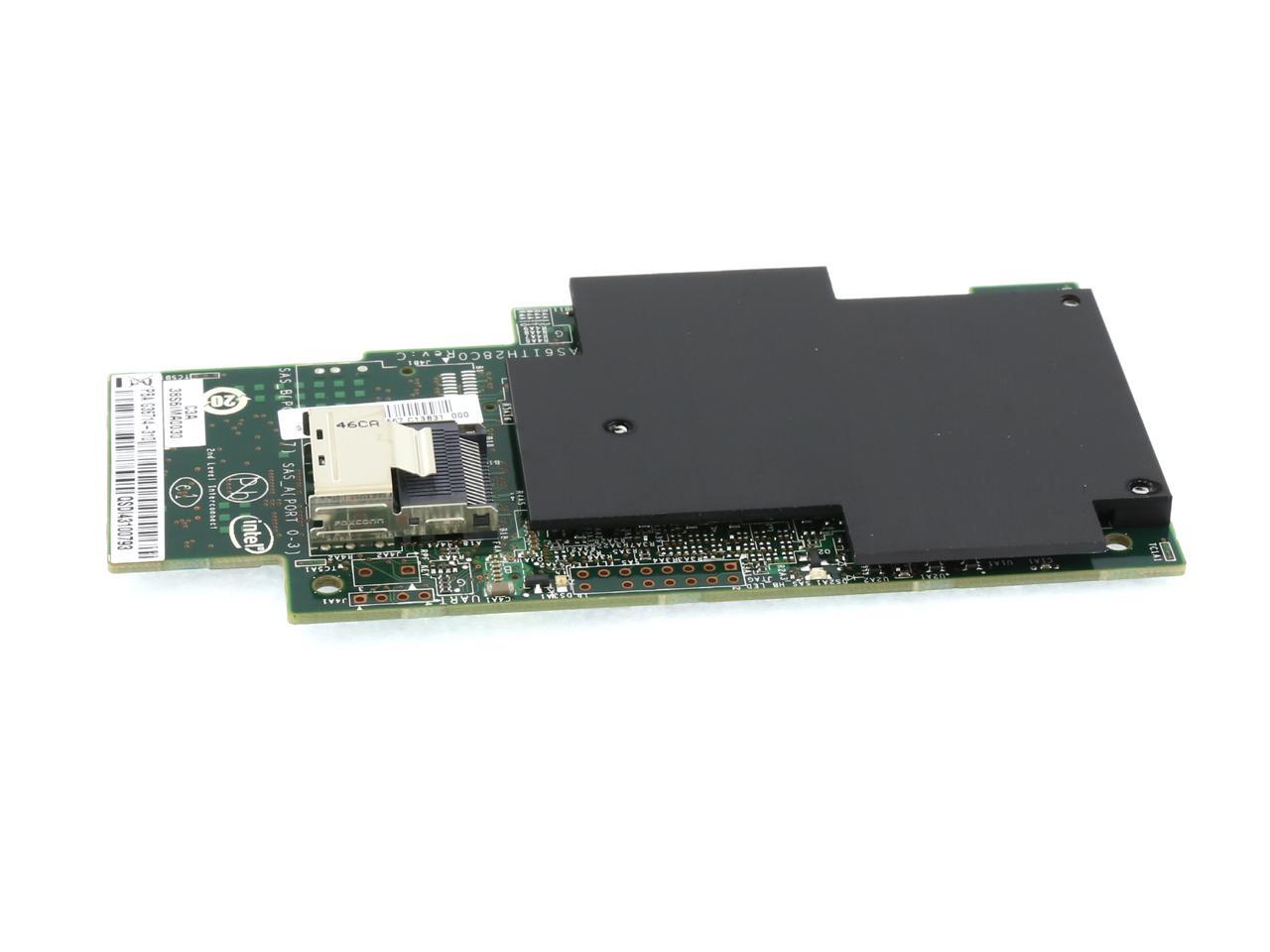

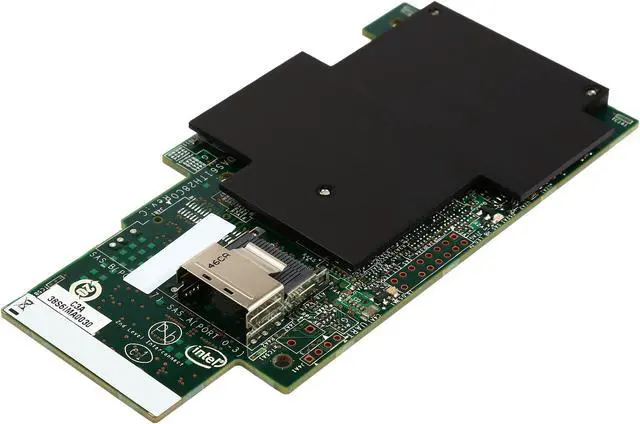

Intel Integrated RAID Module
Model: RMS25JB040
Overview
Intel Corporation designs and builds the essential technologies that serve as the foundation for the world's computing devices. The Intel® RAID Products are built on a foundation of industry leading quality and innovation to support the Intel® Xeon® processor family.
The Intel® Integrated RAID Module RMS25JB040 is an entry-level product that delivers basic RAID functionality. The module requires an Intel® Server Board with a unique Storage I/O Connector such as Intel® Server Board S1200V3RPL.
- Architected with a LSI3008 I/O controller which allows for good RAID performance with a small number of hard drives (typically 4 or less for the RMS25JB040 model)
- Operates in JBOD mode and Hardware RAID 0,1 and 1E mode for configuration flexibility
Technical Specifications
| Model# |
RMS25JB040 |
| Target Market |
Entry |
| Board Form Factor |
Storage IO Slot Module |
| Data Transfer Rate |
6 Gb/s |
| Supported Devices |
SAS/SATA |
| Compatible Battery Backup Options |
None |
| RAID Level Supported |
0, 1, 1E, 10, JBOD |
| # of Ports Internal |
4 |
| # of Ports External |
0 |
| # of Devices Supported |
128 |
| Embedded Memory |
N/A |
| PCIe Host Interface |
PCI Express 2 x8 |
| IO Processor Model |
LSI2308 |
| Included Items |
6 |
| # of Serial Ports |

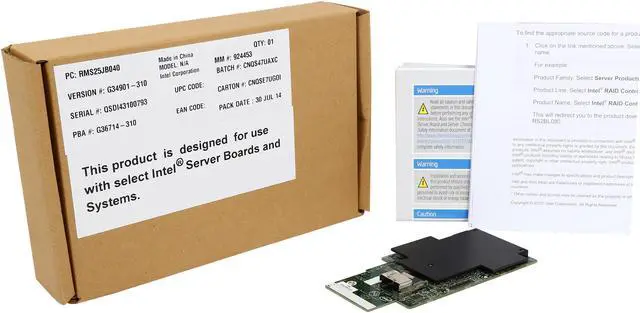

(1) RAID Controller module, Quick Start User Guide, Mounting standoffs |
Technical Information
- Host Interface: PCI Express 2.0 x8
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels: 0
- RAID Levels: 1
- RAID Levels: 1E
- Form Factor: Plug-in Card
- Compatibility:
Intel Xeon E5 Series Server Boards
