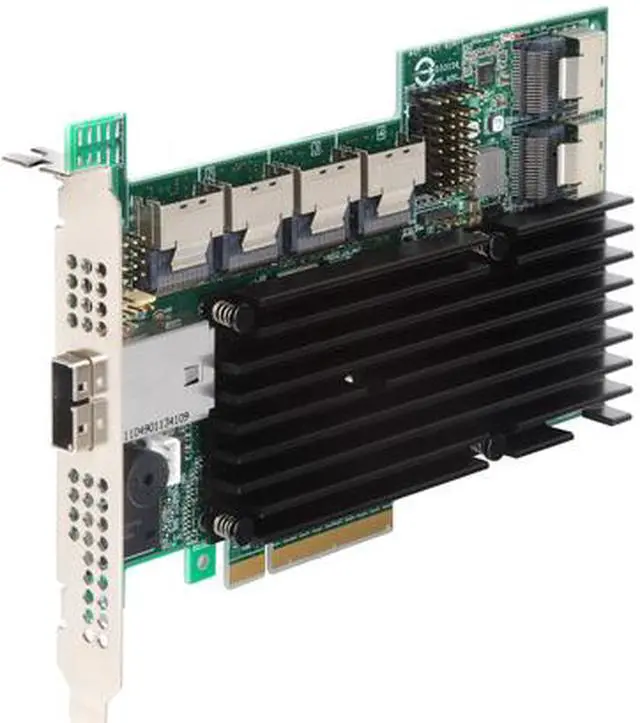

Intel RS2SG244 PCI-Express 2.0 x8 SATA / SAS RAID Controller Card
- RAID 1/5/6/10/50/60
- 6 x SFF-8087 mini-SAS Internal Connectors
- 1 x SFF-8088 mini-SAS External Connectors
- Up to 6Gb/s
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Intel RAID Controller RS2SG244 offers exceptional performance and a highly scalable RAID solution for growing storage requirements. With twenty-four internal and four external ports, the Intel RAID Controller RS2SG244 supports both internal drive storage and external JBOD expansion for up to 240 SATA or SAS drives. With a large number of internal ports, the Intel RAID Controller RS2SG244 connects up to 24 drives inside the server via direct connection or passive backplane. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.
Intel RAID Controller RS2SG244 offers self-encrypting drive support with Intel premium features, along with an optional battery backup that maintains data without the need for an uninterruptible power supply.
Excellent Performance, Highly ScalableLSI SAS2108 ROC technology, x8 PCI Express Generation 2 host interface and 512MB on-board DDR II 800 MHz cache enhance the performance of mainstream applications. Capable of connecting up to 28 drives directly or up to 240 using SAS expanders.
Exceptional Data ProtectionSupports data redundancy using SAS or SATA hard disk drives through mirroring, parity, and double parity (RAID levels 1, 5, and 6), plus striping capability for spans (RAID levels 10, 50, and 60).
Self-encrypting Drive SupportOptional Disk Encryption (DE) model includes SafeStore Encryption Services with Instant Secure Erase and Local Key Management.
BBU SupportThis adapter supports optional Intel Smart Battery AXXRSBBU7 or AXXRSBBU8 to maintain data in case the server or power fails, eliminating the need of an additional bulky uninterruptible power supply.
Hot SpareIncludes global hot spare support that automatically comes online to replace the first drive to fail on any array or disk group on the controller.
Excellent Performance, Highly ScalableLSI SAS2108 ROC technology, x8 PCI Express Generation 2 host interface and 512MB on-board DDR II 800 MHz cache enhance the performance of mainstream applications. Capable of connecting up to 28 drives directly or up to 240 using SAS expanders.
Exceptional Data ProtectionSupports data redundancy using SAS or SATA hard disk drives through mirroring, parity, and double parity (RAID levels 1, 5, and 6), plus striping capability for spans (RAID levels 10, 50, and 60).
Self-encrypting Drive SupportOptional Disk Encryption (DE) model includes SafeStore Encryption Services with Instant Secure Erase and Local Key Management.
BBU SupportThis adapter supports optional Intel Smart Battery AXXRSBBU7 or AXXRSBBU8 to maintain data in case the server or power fails, eliminating the need of an additional bulky uninterruptible power supply.
Hot SpareIncludes global hot spare support that automatically comes online to replace the first drive to fail on any array or disk group on the controller.Warranty & Returns
