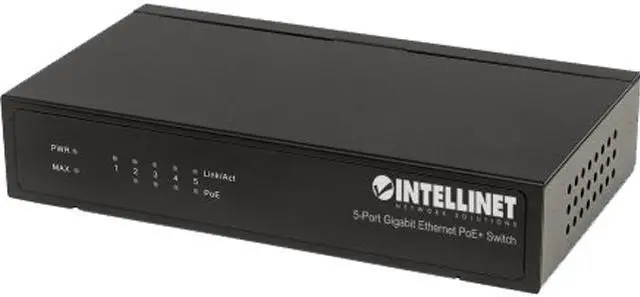

Main image of Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

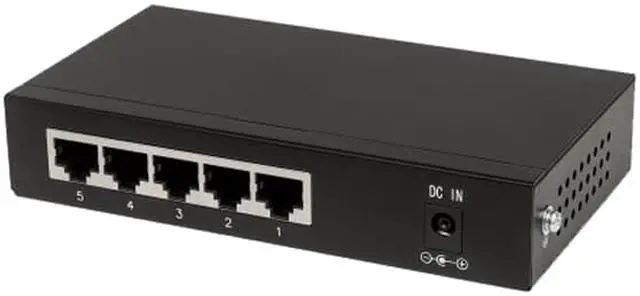

Alt view image 2 of 6 - Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

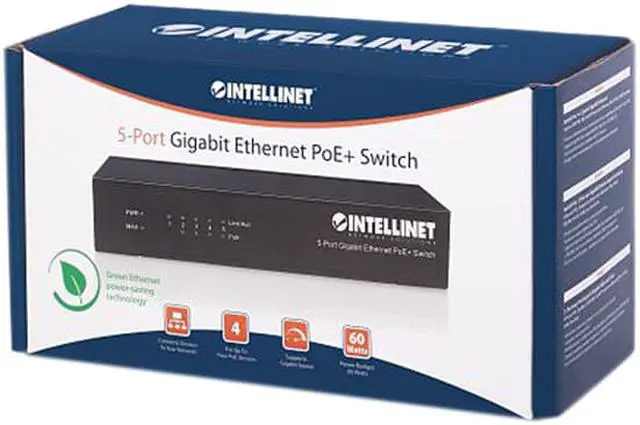

Alt view image 3 of 6 - Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

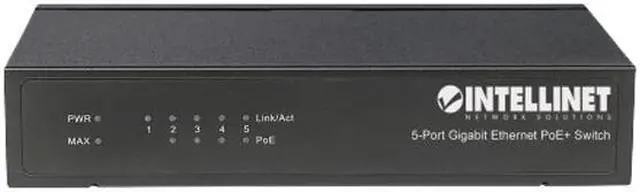

Alt view image 4 of 6 - Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

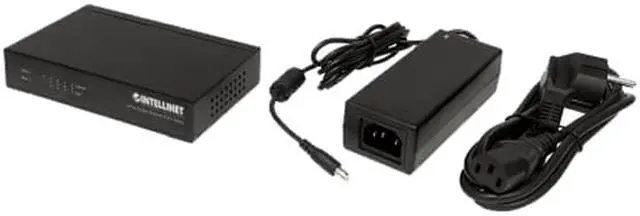

Alt view image 5 of 6 - Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

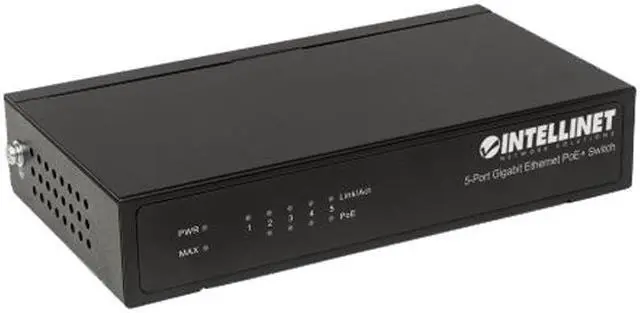

Alt view image 6 of 6 - Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

Shop All Intellinet Products | Visit Main Tech Connect Store

Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch (561228)

Be the first to review this product...

2K MAC Address Table
192KB Buffer Memory

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

5 Port Gigabit Ethernet PoE

Model
Brand	Intellinet
Model	561228

Format & Standards
Format	Desktop
Standards	IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet) IEEE 802.3ab (1000Base-T Gigabit Ethernet) IEEE 802.3af (Power over Ethernet 802.3at Type 1) IEEE 802.3at (Power over Ethernet 802.3at Type 2) IEEE 802.3az (Energy Efficient Ethernet EEE)

Ports & Interface
Primary Ports	5 x RJ45

Data Transmission
MAC Address Table	2K
Switching Method	Store and Forward
Buffer Memory	192KB

Details
LEDs	Power Link / activity PoE Max

Power Supply
Power	Power: External power adapter: 51V, 1.25A, input: 100-240V AC, 50-60 Hz Power consumption: 70 watts (maximum)

Dimensions & Weight
Dimensions	1.06" x 5.51" x 2.99"
Weight	0.9600

Environmental
Temperature	Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) Storage Temperature: -20 ~ 70 degree Celsius (-4 ~ 158 degree Fahrenheit)
Humidity	Operating Humidity: 10% ~ 90% non-condensing

Features
Features	Provides power and data connection for up to four PoE network devices Save installation cost by delivering data and power over existing network cables IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length Power output up to 30 watts per port PoE power budget of 60 watts Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras) Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection All RJ45 ports equipped with Auto-MDIX and auto-negotiation support Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification Store and forward switching architecture 10 Gbps switch fabric Supports jumbo frames up to 9 kBytes IEEE 802.3x flow control for full duplex Fanless design ideal for silent operation Desktop-size metal case

Packaging
Package Contents	5-Port Gigabit Ethernet PoE+ Switch Power Adapter Quick Installation Guide
