Control 4 computers using a single keyboard, mouse, and DisplayPort video console
Superior video quality - True 4K (4096x2160@60Hz)
DisplayPort 1.2 compliant, HDCP compliant
2-Port USB3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
MST (Multi-Stream Transport)
+
+
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now

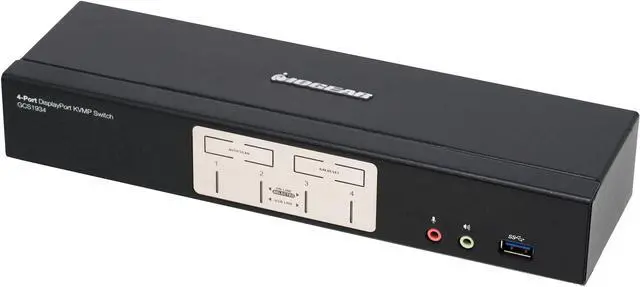

4-Port DisplayPort 1.2 KVMP Switch Featuring a revolutionary combination of 4K DCI resolution, the next generation USB3.1 hub, and enhanced user-friendly operation, IOGEAR's 4-Port DisplayPort1.2 KVMP Switch provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience True 4K resolution while switching between the four computers and sharing two USB peripherals with the push of a button. The 4-Port DisplayPort 1.2 KVMP Switch combines the functionality of a KVM switch with a DisplayPort 1.2 digital interface, built-in USB 3.1 Gen 1 hub, and audio. Control four DisplayPort computers with ease using a single keyboard, mouse, and DisplayPort monitor. Expand your USB 3.0 peripherals connectivity with faster data transfer rate and eliminate redundant hardware. True 4K Experience The DisplayPort 1.2 KVMP technolog...Number of Computers Supported: 4Number of Local Users Supported: 1Maximum Video Resolution: 4096 x 2160USB: YesDisplayPort: YesNumber of USB Ports: 8Number of DisplayPorts: 5Form Factor: DesktopHeight: 2.9Width: 10.3"Depth: 1.7"Weight (Approximate): 1.90 lbPackage Contents: 4-Port DisplayPort 1.2 KVMP Switch 4 x DisplayPort Cables 4 x USB 3.0 Cables 8 x Audio Cables 1 x Power Adapter 1 x Manual Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEETAA Compliant: YesLimited Warranty: 3 YearPackage Contents 4-Port DisplayPort 1.2 KVMP Switch 4 x DisplayPort Cables 4 x USB 3.0 Cables 8 x Audio Cables 1 x Power Adapter 1 x Manual "
Learn more about the IOGEAR GCS1934
Model
Brand
IOGEAR
Model
GCS1934
Details
Type
USB, DisplayPort

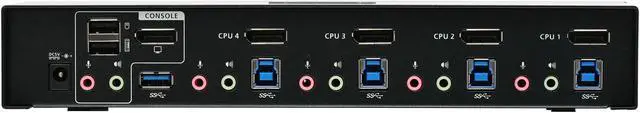

PC Connectors
Monitor: 4 x DisplayPort Keyboard & Mouse: 4 x USB 3.1 Gen1 Type B Audio: 4 x 3.5mm Mini Stereo Jack Microphone: 4 x 3.5mm Mini Stereo Jack
Console Connectors
Monitor: 1 x DisplayPort Keyboard: 1 x USB Type A Mouse: 1 x USB Type A Audio: 2 x 3.5mm Mini Stereo Jack (Front and Rear) Microphone: 2 x 3.5mm Mini Stereo Jack (Front and Rear)
PC Selection
Pushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode)
AutoScan Interval
1 - 99 seconds (5 seconds default)
Monitors Supported
4096 x 2160 @ 60Hz (4K)
LED Indicators
Mode: 4 x Orange KVM: 4 x Orange Audio: 4 x Orange USB Peripherals: 4 x Green
Environmental
Temperature
Operation: 0 to 50 degree C Storage: -20 to 60 degree C
Humidity
0% to 80%,Non-Condensing
Features
Audio Features
Offers audio and microphone switching
Power Features
DC 5.3V
Features
Control 4 computers using a single keyboard, mouse, and DisplayPort video console
Superior video quality - True 4K(4096x2160@60Hz)
DisplayPort 1.2 compliant, HDCP compliant
2-Port USB3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
MST (Multi-Stream Transport)
DP++ supports HDMI and DVI output

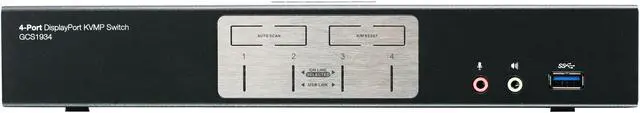

Computer selection via front panel pushbuttons, hotkeys, and mouse
Independent switching of the KVM, USB, and audio
Supports HD audio through DisplayPort
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows7, Windows8.1, Windows10, Mac, and Linux
Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
Mac keyboard support and emulation
Auto Scan Mode to monitor all computers
Power On Detection
Hot pluggable
Firmware Upgradable
Dimensions & Weight
Dimensions
2.94" x 10.25" x 1.69"
Weight
1.98 lbs.
Package Contents
Package Contents

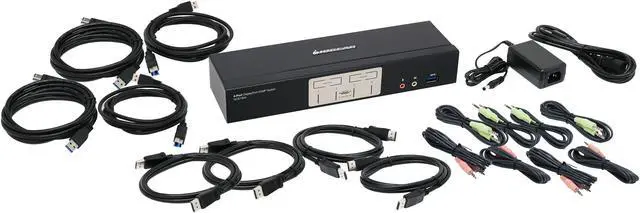

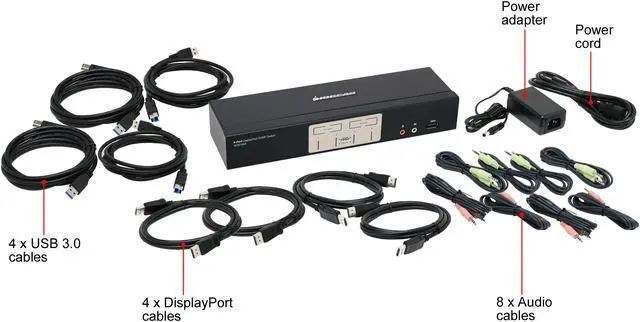

1 x GCS1934 4 x DisplayPort Cables 4 x USB 3.0 Cables 8 x Audio Cables 1 x Power Adapter 1 x Manual
