IOGEAR True 4K 8-Port Switcher with HDMI connection (TAA Compliant) GHSW8481

Be the first to review this product...

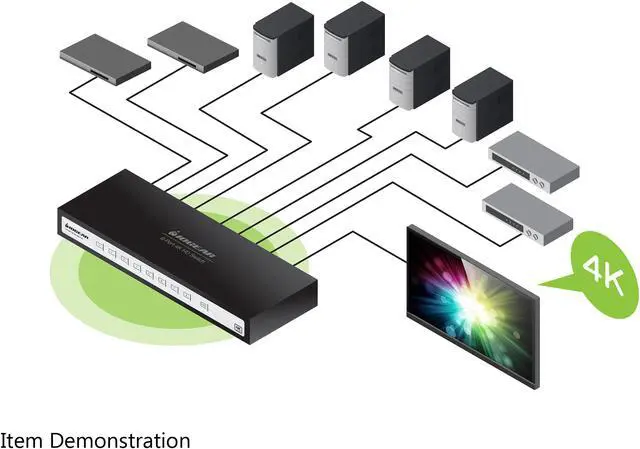

Connect and switch between 8 HDMI sources on 1 HDMI display
True 4K resolutions to 4096 x 2160 @ 60Hz (4:4:4)
Distribute uncompressed audio formats
Flexible control via push-button, IR remote & RS-232 serial control
Bi-directional RS-232 support for universal remotes & touch panels

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Connectivity
Technology: CableNumber of
Input Devices Supported: 8Device
Supported: DisplayComputerTVNumber of
Displays Supported: 1Graphics
Modes: 4KMaximum
Video Resolution: 4096 x 2160HDMI
In: YesHDMI
Out: YesNumber of
HDMI Inputs: 8Number of
HDMI Outputs: 1Form
Factor:
Rack-mountableHeight: 1.8"W
idth: 17.3"D
epth: 6.3"W
eight (Approximate): 3.95 lbPackage
Contents: True 4K 8-Port Switcher with HDMI Connection 1 x IR Remote Control 1 x IR Extension Cable 1 x 3.3 feet HDMI Cable 1 x Power Adapter 1 x Rack Mounting Kit 1 x Quick Start Guide 1 x Warranty Card
Environmentally Friendly: YesEnvironmental
Certification: RoHSWEEE
Limited Warranty: 3 Year

General
Brand	IOGEAR
Model	GHSW8481

Performance
Resolution Support	4096 x 2160 @ 60 Hz (4:4:4)
Color	N/A

Connection
HDMI	Input: 8 x HDMI Type A Female Output: 1 x HDMI Type A Female
Serial Interface	RS-232: 1 x DB-9 Female (Black)
Other Connector	1 x DC Jack with locking barrel

Compatibility
System Requirements	Up to 8 HDMI source Devices 1 HDMI Display or Projector

Power
Power Consumption	3.73W
Power Supply	5.3 VDC / 1A

Specification
Specification	DIP: 1 x Auto Switch On/Off Cable Length: Maximum of 9.84 Feet Video Performance Local: HDMI 2.0 / HDCP 2.2 with CEC support Transmission Power: Max. Data Rate 18 Gbsp Operating Temperature: 0~40 celsius degree Storage Temperature: -20~60 celsius degree Humidity: 0-80% RH, Non-Condensing

Feature
Feature	Connect and switch between 8 HDMI sources on 1 HDMI display True 4K resolutions to 4096 x 2160 @ 60 Hz (4:4:4) Distribute uncompressed audio formats Flexible control via push-button, IR remote & RS-232 serial control Bi-directional RS-232 support for universal remotes & touch panels Auto-switch mode detects & selects new HDMI port connections Supports high-speed data rates up to 18 Gbps No-slip locking power supply mechanism Cascade 3-levels HDMI 2.0 and HDCP 2.2 compliant CEC compliant Plug-n-Play

Dimension
Dimensions	1.75" x 17.25" x 6.25"
Weight	3.95 lbs.

Package

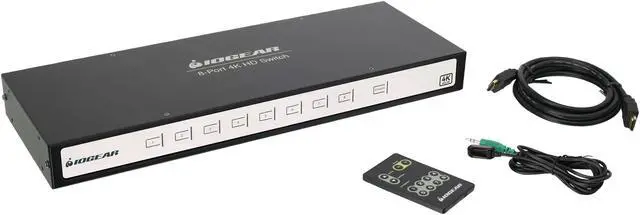

Package Content	1 x GHSW8481 8-Port True 4K HDMI Switch 1 x IR Remote Control 1 x IR Extension Cable 1 x 3.3 feet HDMI Cable 1 x Power Adapter 1 x Rack Mounting Kit 1 x Quick Start Guide 1 x Warranty Card

Additional Information
First Listed on Newegg	August 29, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
