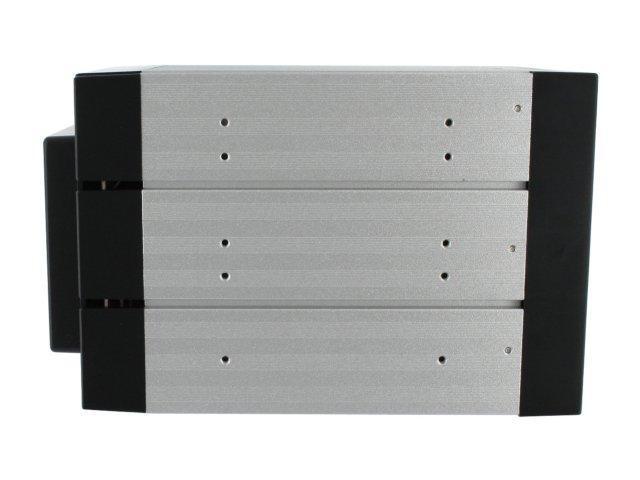

iStarUSA BPU-340SATA-BPL 3 x 5.25" to 4 x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack - OEM

OUT OF STOCK.
  • RoHS Compliance Version: Yes
  • Standard Drive Bays:
  • 5.25" Drives: 3
  • Hotswap 3.5": 4
  • Indicators: Power, HDD, fan, and high temperature
  • Material of Handle: Aluminum
  • Material of Main Chassis: Aluminum Design with Conductive Dissipation Grooves
  • Cooling Fan: 1 x 80 mm
  • Dimensions: 4.96" x 5.75" x 8.03"
  • Package Content: SATA Cable Included (4pcs)
Overview
Specs
Reviews

iStarUSA Hot-Swap Cage - Three 5.25" to Four 3.5" SAS/SATA 6.0Gbps

With a high level Raid and high storage availability in a compact design, the BPU-340SATA series adds extra memory and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high-end data storage server or workstation.

High density multi-disk storage backplane allows four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configurations for high performance or redundancy data application. The aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front-to-back-vent airflow.

Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

Features

StarUSA

  • Stylish aluminum handle and heat-sink body
  • Supports Hot-Swap & RAID Configuration (needs an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • High Performance Transfer Rate up to 6.0Gbps
  • Support 2.5"/3.5" SAS I/II & SATA I/II/III HDDs
  • Equipped with Fan Speed Control Switch
  • 4TB Hard Drive Compatible


Specifications

StarUSA

Model Number BPU-340SATA
RoHS Compliance Version Yes
Standard Drive Bays 5.25" Drives: 3
Hotswap 3.5": 4
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black / Blue / Red / Silver
Color of Main Chassis Black
Package Content SATA Cable Included (4 pcs)
Cooling Fan 1 x 80mm
Ordering Information
(Part Number)
Black Tray: BPU-340SATA-BLACK
Blue Tray: BPU-340SATA-BLUE
Red Tray: BPU-340SATA-RED
Silver Tray: BPU-340SATA-SILVER
Lockable Tray: BPU-340SATA-BPL
Dimensions (W x H x D) 5.75 x 4.96 x 7.95 inches
146.0 x 126.0 x 201.9mm
