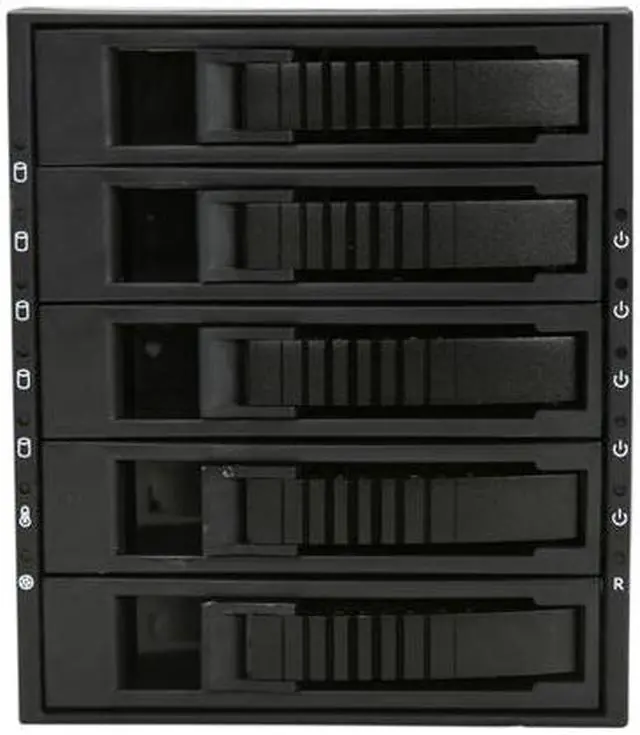

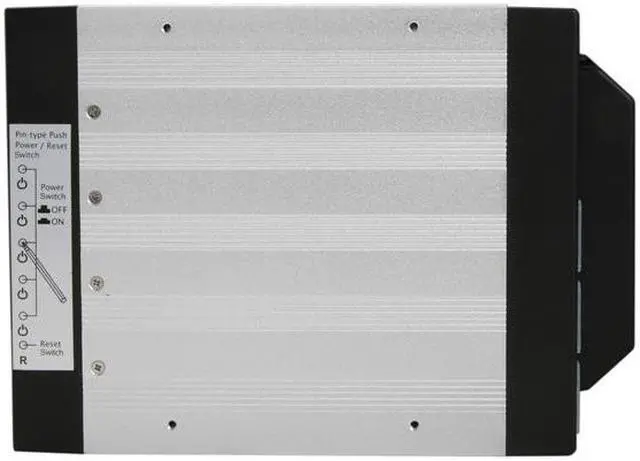

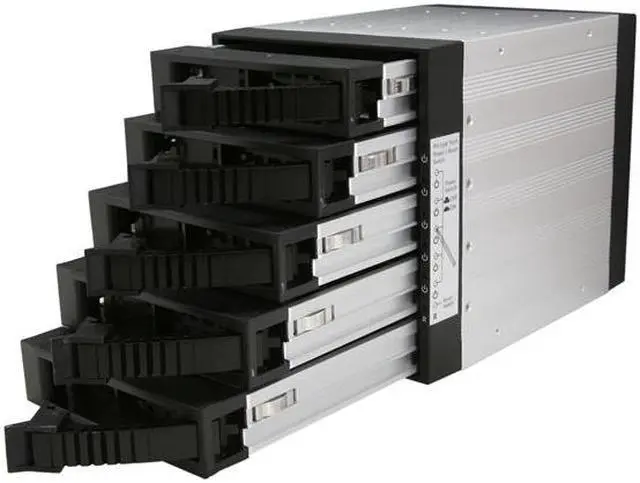

iStarUSA BPU-350SATA-BLACK 3x5.25" to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage - Black Tray

  • BPU-350SATA-BLACK
  • Black Tray
+
+
Overview
Specs
Reviews (46)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

iStarUSA
iStarUSA BPU-350SATA Three 5.25in. to Five 3.5in. SAS/SATA 6.0Gbps Hot-Swap Cage
iStarUSA
  • Stylish aluminum color handle and heat-sink body
  • Supports hot-swap and RAID configuration (needs an additional RAID controller)
  • Aluminum design with conductive dissipation grooves
  • Power, fan and high temperature LED indicators
  • High performance transfer rate up to 6.0Gbps
  • Supports 2.5in. / 3.5in. SAS I/II and SATA I/II/III HDDs
  • Equipped with fan speed control switch
  • 4TB hard drive compatible

High level RAID and high availability storage in a compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides the best heat dissipation required for high-performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.

iStarUSAiStarUSA

Specifications

iStarUSA
Model Number BPU-350SATA
RoHS Compliance Version Yes
Standard Drive Bays 5.25in. Drives: Three
Hotswap 3.5in. Drives: Five
Hotswap HDD Type: 3.5in. SAS I/II and SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black, Blue, Red, and Silver
Color of Main Chassis Black

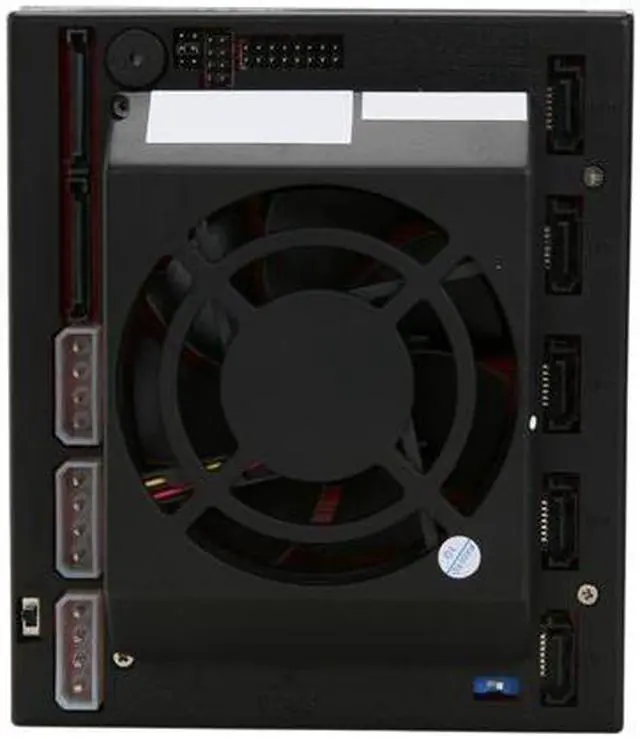

Cooling Fan 1 x 80mm
Ordering Information
(Part Number)
Black Tray:BPU-350SATA-BLACK
Blue Tray:BPU-350SATA-BLUE
Red Tray:BPU-350SATA-RED
Silver Tray:BPU-350SATA-SILVER
Lockable Tray:BPU-350SATA-BPL
Dimensions (HxWxD) 4.96in. x 5.75in. x 8.11in. (126.0mm x 146.0mm x 206.0mm)
iStarUSA
iStarUSAiStarUSA

What's in the Box

iStarUSA



Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The iStarUSA BPU-350SATA-BLACK is a hot-swap drive cage that converts three 5.25-inch bays into five 3.5-inch SAS/SATA drive bays, making it suitable for server or workstation builders who need to add multiple drives in a compact space.

Recommended For

  • Home-server and NAS builders with three available 5.25-inch bays who want to add five front-accessible 3.5-inch drives for storage expansion or drive replacement.
  • Small server or workstation operators who regularly replace or rotate SATA/SAS hard drives and want individual removable trays with drive-status indicators.
  • DIY storage-array builders who need a drive cage for a RAID or JBOD setup and already have a compatible controller or host connections; the cage provides drive mounting and hot-swap access, not RAID processing.
  • Builders of drive-heavy systems who want an internally mounted cage with an included cooling fan, temperature and fan alerts, and a replaceable fan.

Spec Summary

AttributeValue
Best ForServer or desktop storage builds needing five hot-swap 3.5-inch SAS/SATA drives in three 5.25-inch bays; RAID configuration requires an additional RAID controller
Drive Bays And CompatibilityConverts three 5.25-inch bays to five hot-swap 3.5-inch bays; supports 2.5- and 3.5-inch SAS I/II and SATA I/II/III drives, with compatibility listed for hard drives up to 4 TB
Interface And Transfer RateSAS and SATA connectivity with transfer rates up to 6.0 Gb/s
Cooling And IndicatorsOne 80 mm cooling fan with fan-speed control; power, HDD, fan, and high-temperature indicators
Construction And ColorAluminum front bezel and handle, with an aluminum chassis featuring conductive dissipation grooves; black tray
Dimensions And Weight5.75 × 4.96 × 8.11 inches (W × H × D); item weight 1 lb

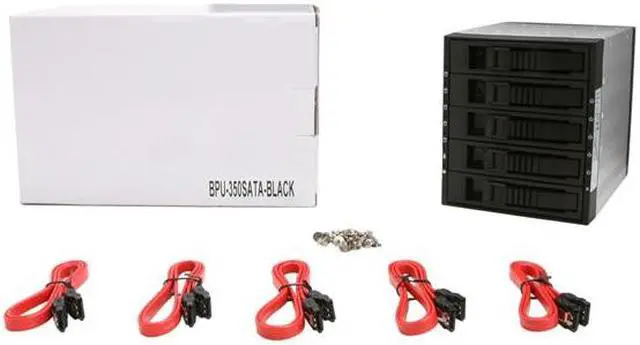

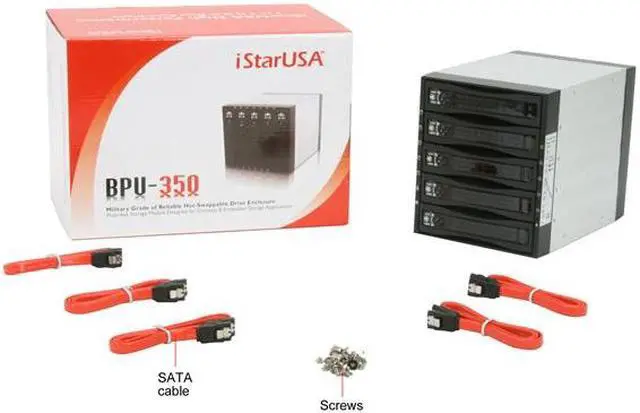

Included AccessoriesDrive cage, screws, five SATA cables, and manual
Model IdentifiersiStarUSA BPU-350SATA-BLACK
