What are the dimensions of the iStarUSA D-200SEA-BK-T7SA rackmount chassis?

The dimensions of the chassis are 19.00 inches in width, 3.50 inches in height, and 20.80 inches in depth.

What materials are used in the construction of the iStarUSA D-200SEA-BK-T7SA chassis?

The front bezel is made of aluminum alloy, the handle is made of SECC zinc-coated steel, and the main chassis is constructed from 1.2mm SECC zinc-coated steel, which is Japan made.

$259^.99

Free 30-day Returns

Limit 99999 per customer.

Sold by PlatinumMicro

Top Rated

4.5 (7,209 seller ratings)

Shipped by PlatinumMicro

Price alert

Add to Wish List

Best Sellers

Newegg

$169^.00
+ FREE SHIPPING

Meet Your Seller

PlatinumMicro

See Seller Store

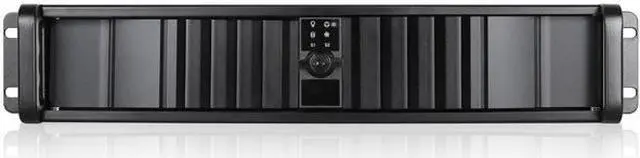

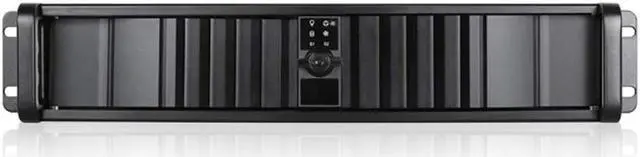

Main image of iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

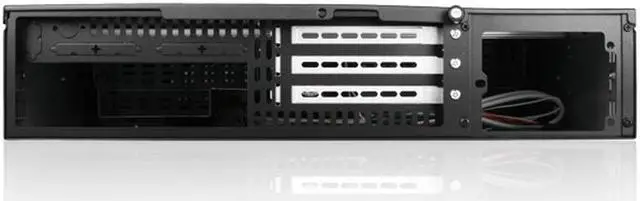

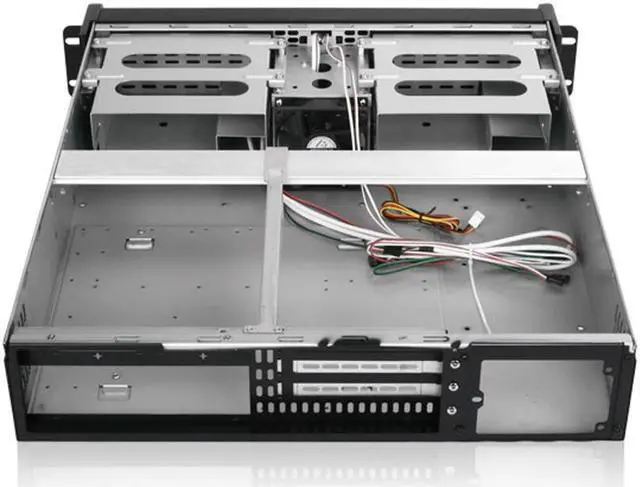

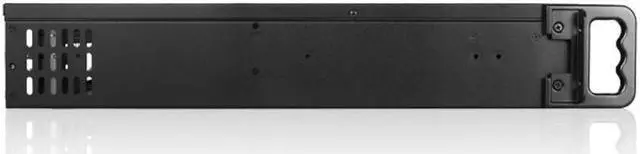

Alt view image 2 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 3 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 4 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 5 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 6 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 7 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Alt view image 8 of 8 - iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Shop All IStarUSA Inc. Products | Visit PlatinumMicro Store

iStarUSA D-200SEA-BK-T7SA 2U Compact Stylish Rackmount Chassis with Black SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Be the first to review this product...

Color of Front Bezel: Black
Color of Main Chassis: Black
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Rack Mount Cabinet

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the iStarUSA Inc. D-200SEA-BK-T7SA

Model
Brand	iStarUSA
Model	D-200SEA-BK-T7SA

Details
Type	Rack Mount Cabinet
Rack Units	2U
Color	Color of Front Bezel: Black Color of Main Chassis: Black
Material	Material of Front Bezel: Aluminum alloy Material of Handle: SECC Zinc-Coated Steel Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional)	3 x 60mm (bracket DD-FANGUARD-6 required)
Cooling (Standard)	1 x 80mm
Specification	Standard Drive Bays: - 3.5" Drives: 2 - 5.25" Drives: 2 Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08) Switches: Power, Reset Supported PSU Type: 2U Expansion Slots: 3 Security: Front Bezel Key Lock Front Connector: 2 x USB 2.0 Motherboard Size: 12" x 9.6" (ATX, microATX, mini-ITX)

Features

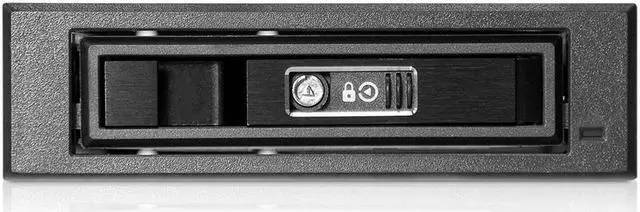

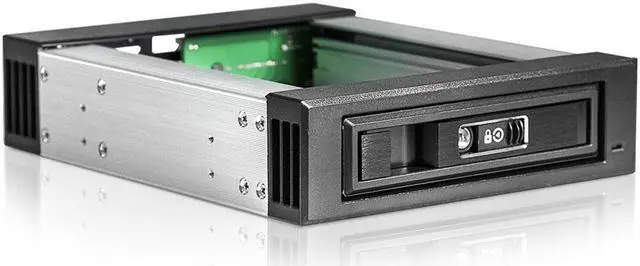

Features	Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5 Front Access USB2.0 x2 80mm x1 cooling fan Power and HDD LED Power and Alarm Reset Switch Optional Aluminum Chassis With rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

Dimension & Weight
Unit Dimension	19.00" x 3.50" x 20.80"

Additional Information
First Listed on Newegg	February 17, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by PlatinumMicro Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIA2W0KD66119
