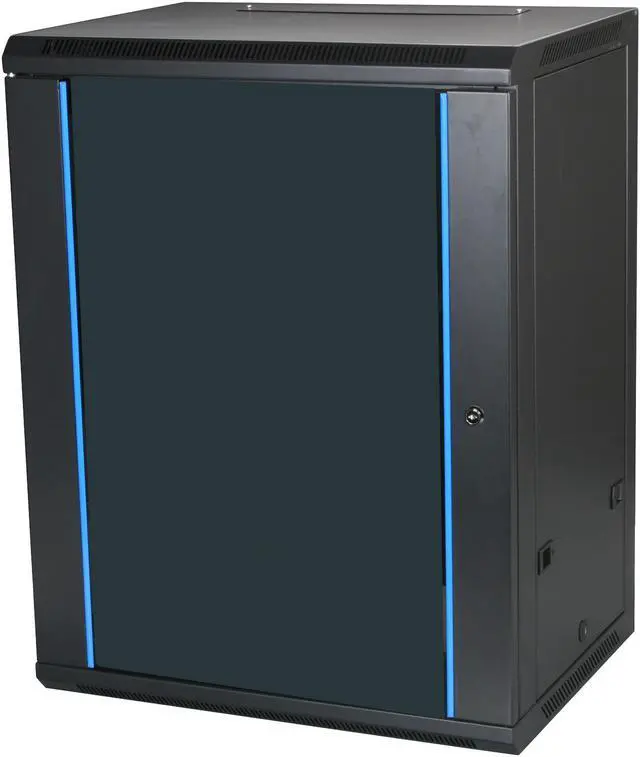

iStarUSA WM1545B 15U 450mm Depth Wallmount Server Cabinet

WM1545B
15U 450mm Depth Wallmount Server Cabinet

Introduction

Elegant and secured, the WM1545B wall mount cabinet CLAYTEK boasts easy side panel access, and is convenient for routine maintenance. It also can be locked to prevent unauthorized access. Three cabling tunnels - top, bottom, and rear - enable data and cable routing. WM Series incorporates the optimal cooling design. The partially vented frames and two optional AC fans that can be installed on the top panel give the wall-mount cabinet excellent air ventilation. A heat-treated glass door provides extra strength and is able to silkscreen logos, marks, and labels to boost product image.

• Sturdy and Rugged, Welded Frame Structure comes Pre-Assembled
• Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
• Three Cabling Tunnels - Top, Bottom, and Rear
• Wallmount or Desktop Standalone

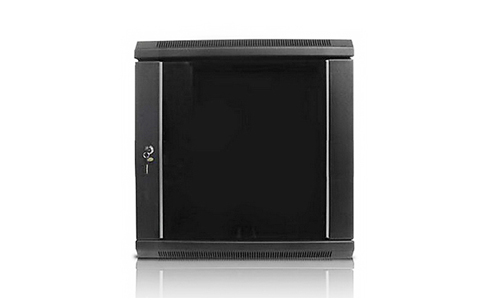

• Enforced, Strengthened Glass Front Door with Security Key Lock

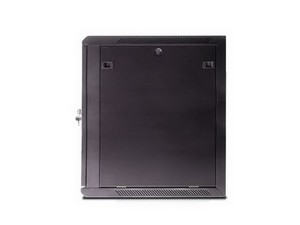

• Removable Side Panels with Easy Handy Latches
• 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
• Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish
• Front Lock (side panel key lock)
• Comes with M6 Mounting Screws and Cage Nuts

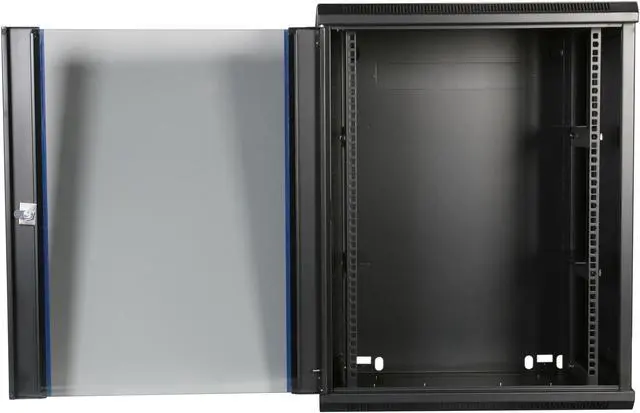

• Easily to Switch Door Side and Door Opens 230 Degrees

---

• Model Number: WM1545B
• RoHS Compliance Version:Yes
• Form Factor: 15U
• Material: Posts: 2.0mm SPCC High-Quality Cold Roll Steel / Enclosure: SPCC 1.2mm
• Loading Capacity: 130lbs
• Supported Chassis Depth: 16" and under
• Cooling: Optional 2 x 120mm 120VAC fan can be installed on the top (p/n: WA-FANAC120)
• Dimensions (W x H x D): 23.62 x 30.31 x 17.72" (600 x 770 x 450mm)
• Notes: HTS Code: 8473.30.5100 (ECCN is not applicable)
