    iStarUSA WN158 15U 800mm Depth Rack-mount Server Cabinet - OEM

    (3) Write a Review
    • Black
    • Static loading w/o casters: 2200.00 lbs.
    • Static loading with casters: 880.00 lbs.
    • Dynamic loading: 660.00 lbs. Weight Capacity
    • Rack Enclosure
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Overview
    Specs
    Reviews (3)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    16-215-212

    WN158
    15U 31.5-Inch (800mm) Depth Rack-Mount Server Cabinet




    Introduction

    16-215-212

    This WN Series Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front & rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offers a superior environment for mission-critical equipment.

    Specifications

    16-215-212
    • Universal Fit Most of Rackmount Chassis and Equipment

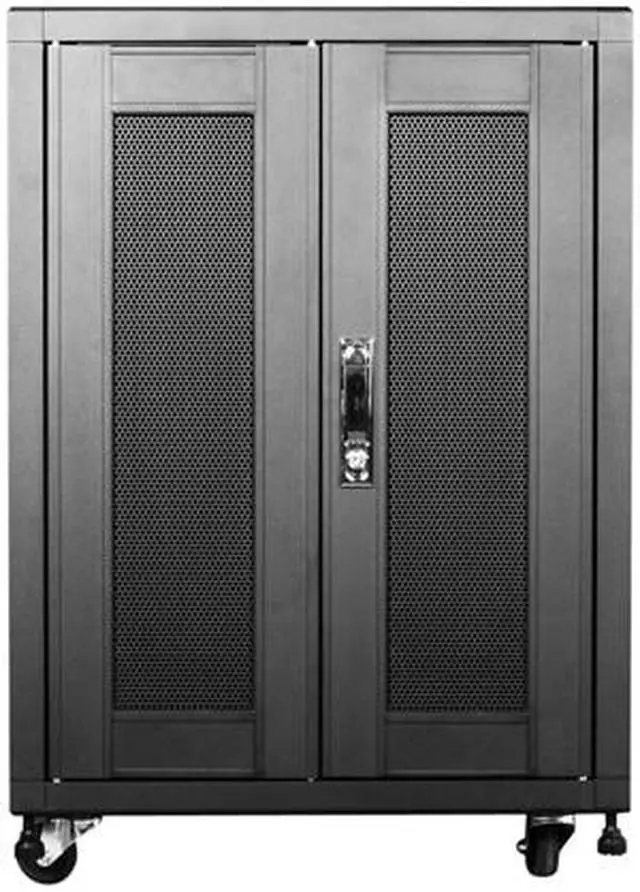

    • Double Rear Doors Provide Convenience and Take Less Space to Open
    • Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
    • Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back
    • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
    • Vented Doors Provide Maximum Air Flow
    • 120mm AC Cooling Fans Provide Excellent Air Circulation
    • Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line
    • Locking Mechanism Design on Casters
    • Comes with 50 sets of M5 Mounting Screws and Cage Nuts

    16-215-212
    • Model Number: WN158
    • RoHS Compliance Version: Yes
    • Form Factor: 15U
    • Material: Side Panel:SPCC t:0.8mm;Horizontal Rails:SPCC t:2.0mm;Vertical Rails:SPCC t:2.0mm; Top Panel: SPCC t:1.2mm
    • Color: Black (RAL9011)
    • Loading Capacity: 2200lbs
    • Supported Chassis Depth: 27.5" and under
    • Internal Dimensions: Height: 27.25";Depth: outer post-to-post 26.5" max

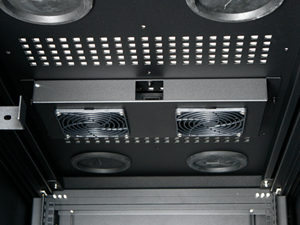

    • Cooling: Up to three sets of 120mm 120VAC fans can be installed on the top (p/n: WA-SF120-2FAN); One set comes pre-installed
    • Dimensions (W x H x D): 23.50 x 35.25 x 31.50" (597 x 895 x 800mm)
    • Notes: - For HP / DELL / IBM servers equipped with sliding rails, please contact sales person for availability of model number WN158-EX.; - HTS Code: 8473.30.5100 (ECCN is not applicable).
