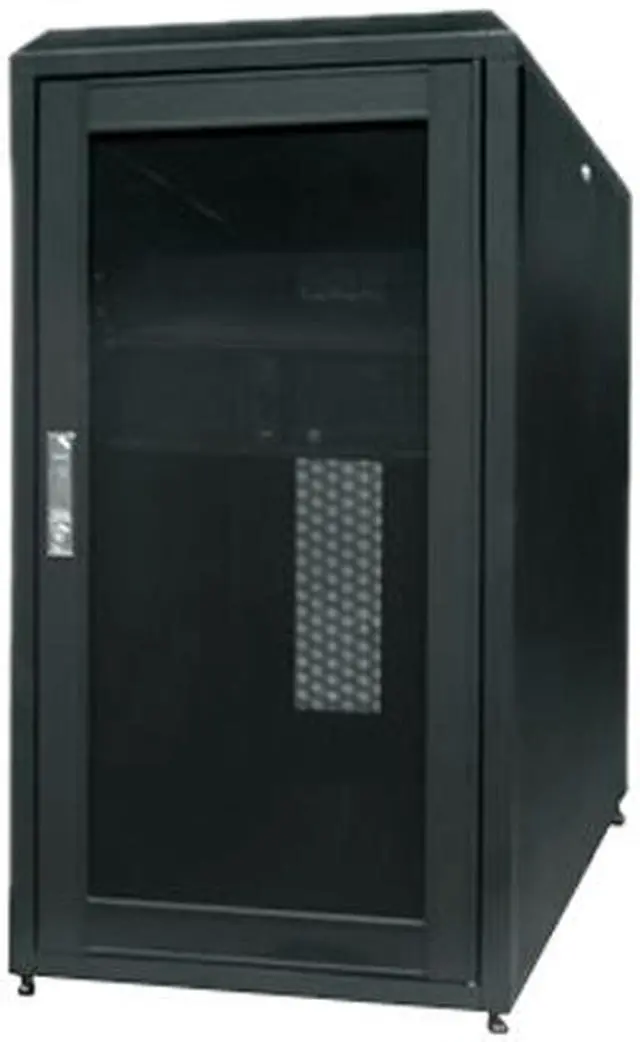

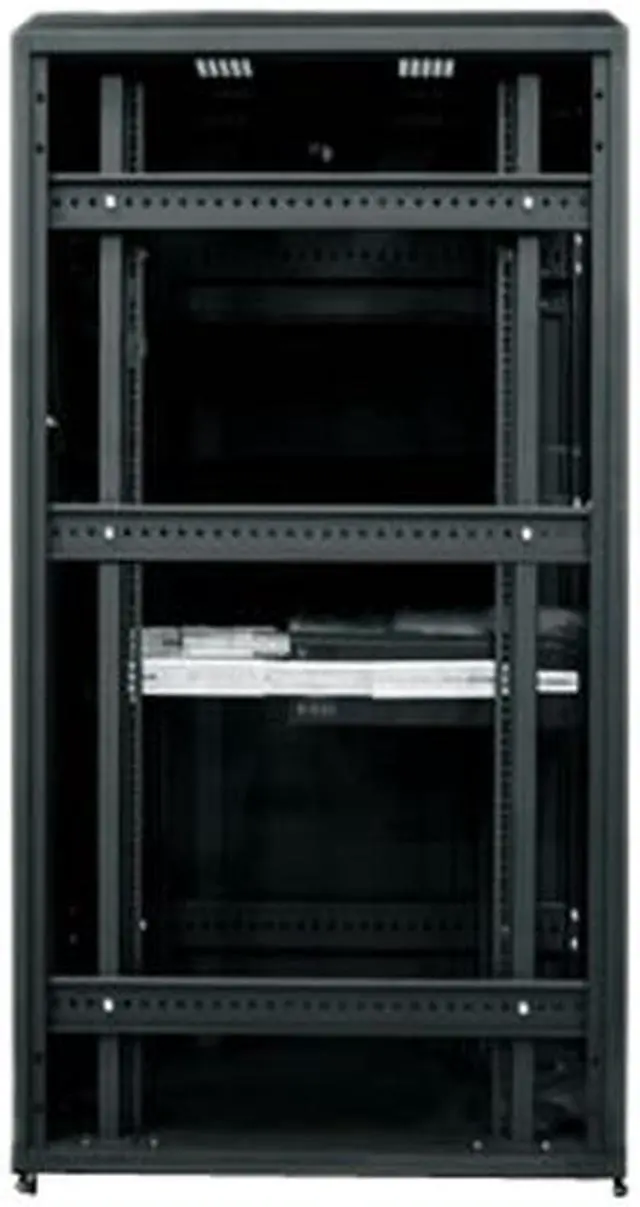

iStarUSA WN368 36U 800mm Depth Rack-mount Server Cabinet - OEM

(2) Write a Review
  • Black
  • Side Panel: SPCC t:0.8mm Horizontal Rails: SPCC t:2.0mm Vertical Rails: SPCC t:2.0mm Top Panel: SPCC t:1.2m
  • 3000 lbs. Weight Capacity
  • Rack Enclosure
This item is covered under the Manufacturer Only Return Policy.
+
+
Overview
Specs
Reviews (2)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
16-215-216

WN368

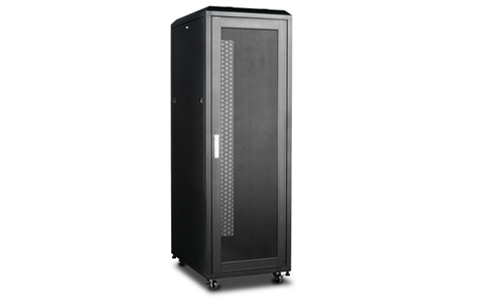

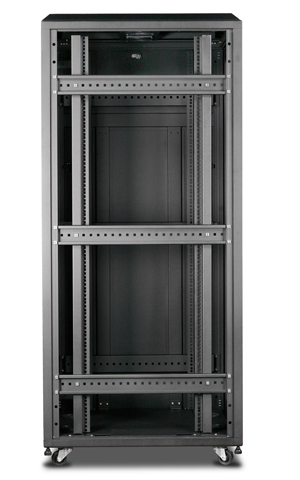

36U 31.5-Inch (800mm) Depth Rack-mount Server Cabinet




Introduction

16-215-216

This WN Series Cabinet is built with high-quality aluminum & steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front & rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.



Videos

Specifications

16-215-216

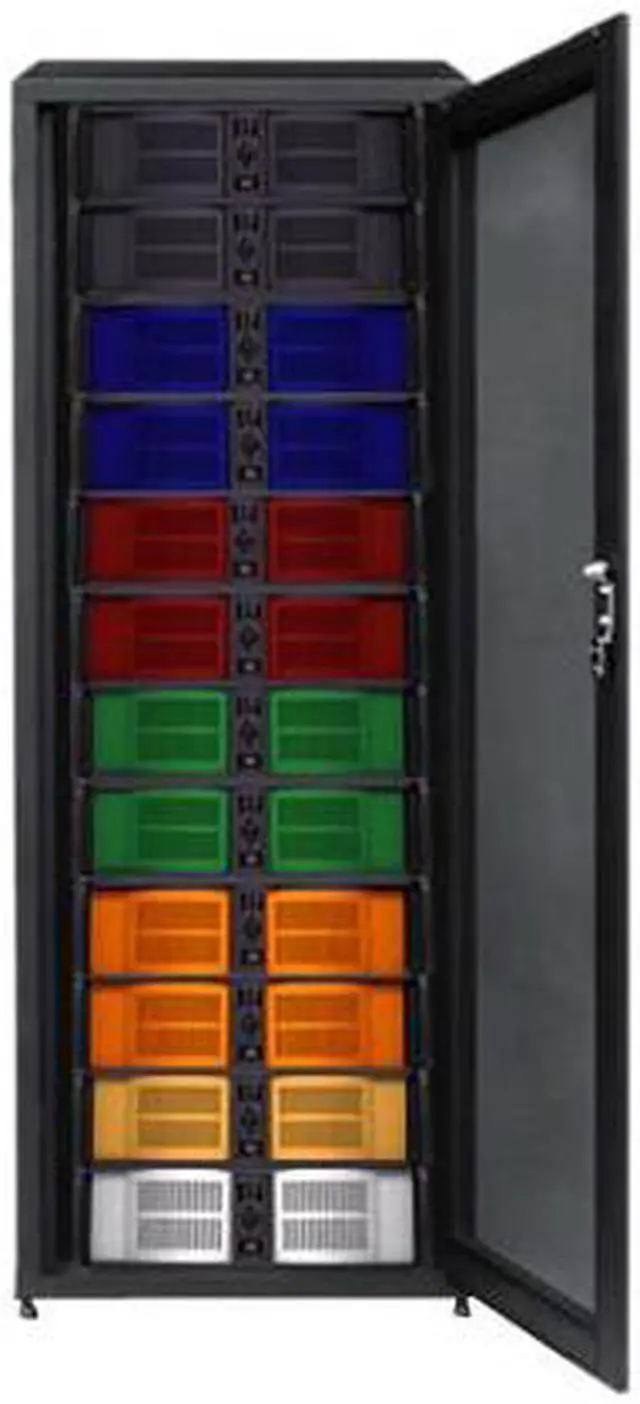

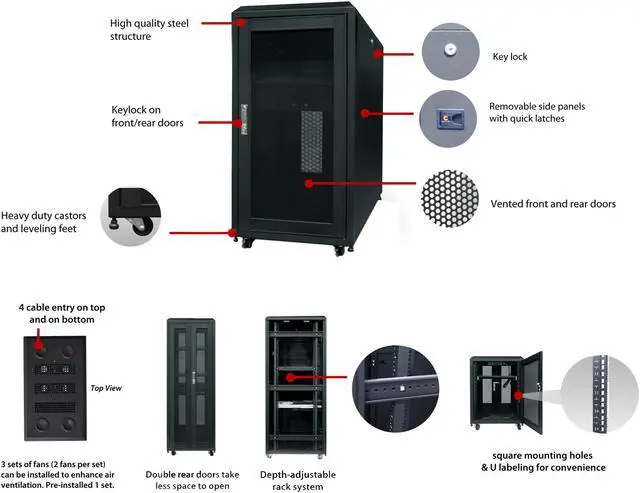

  • Universal Fit Most of Rackmount Chassis and Equipment

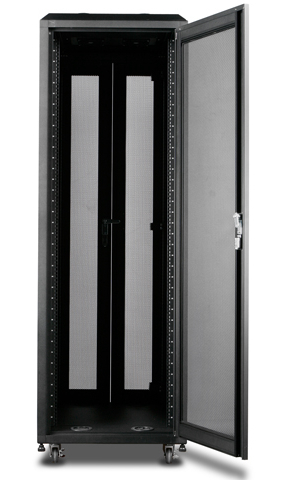

  • Double Rear Doors Provide Convenience and Take Less Space to Open
  • Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
  • Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back

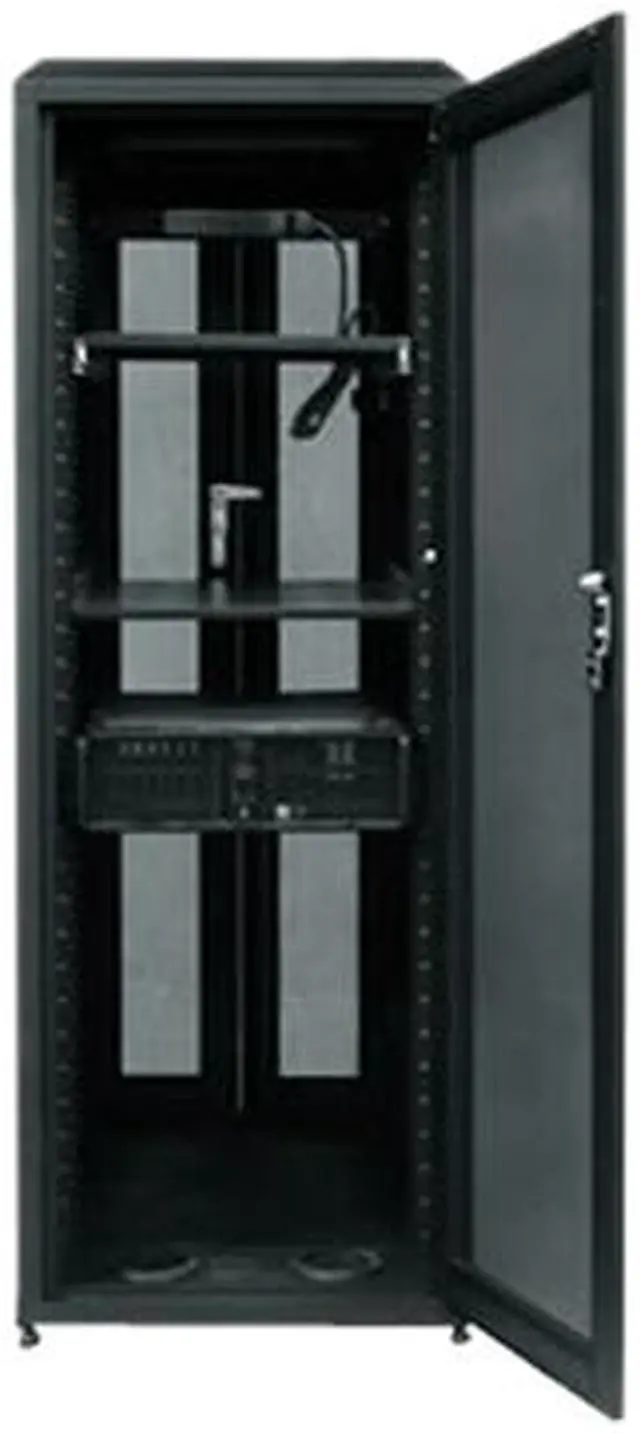

  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis

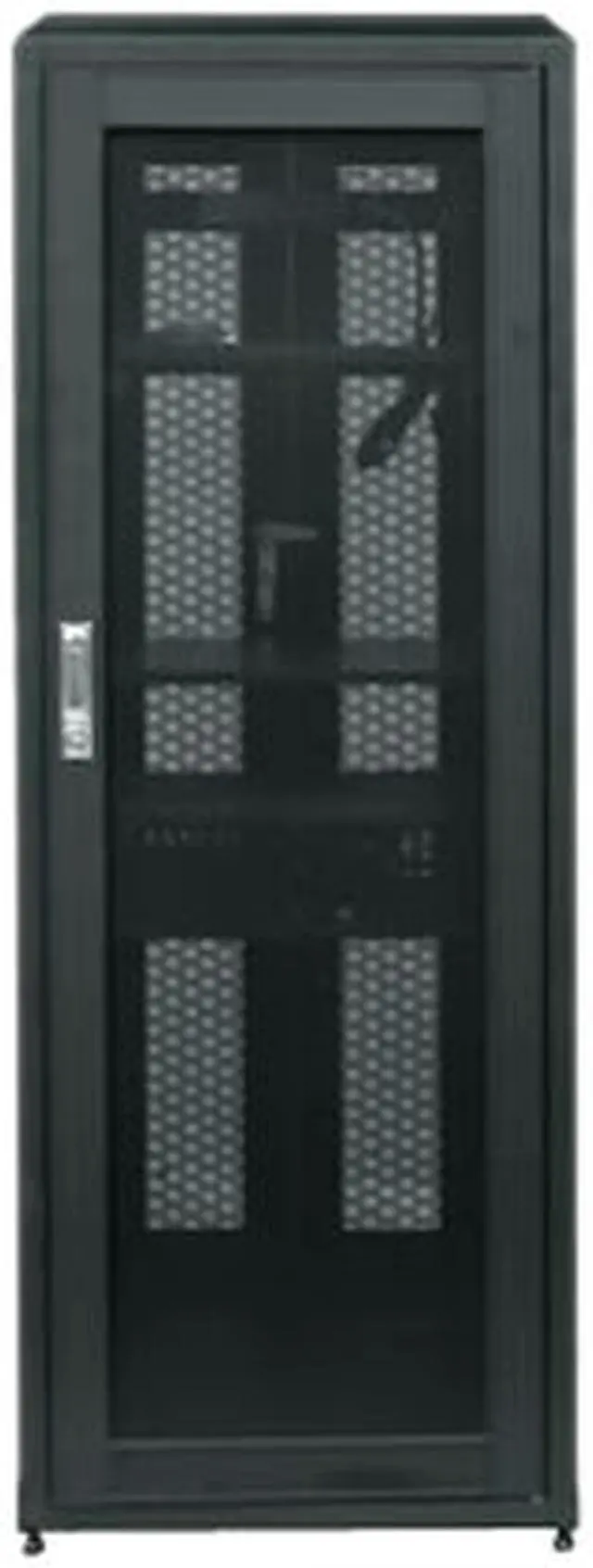

  • Vented Doors Provide Maximum Air Flow
  • 120mm AC Cooling Fans Provide Excellent Air Circulation
  • Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line

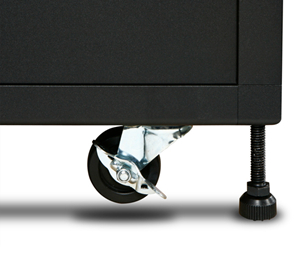

  • Locking Mechanism Design on Casters

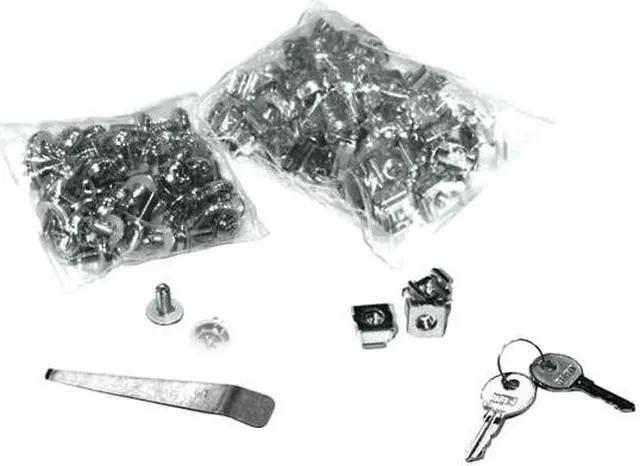

  • Comes with 50 sets of M5 Mounting Screws and Cage Nuts

16-215-216
  • Model Number: WN368
  • RoHS Compliance Version: Yes
  • Form Factor: 36U
  • Material: Side Panel:SPCC t:0.8mm
    Horizontal Rails: SPCC t:2.0mm
    Vertical Rails: SPCC t:2.0mm
    Top Panel: SPCC t:1.2mm
  • Color: Black (RAL9011)
  • Loading Capacity: 2200lbs
  • Supported Chassis Depth: 27.5" and under
  • Internal Dimensions: Height: 64.25"; Depth: outer post-to-post 26.5" max
  • Cooling: Up to three sets of 120mm 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN) One set pre-installed.
  • Dimensions (W x H x D): 23.50 x 71.75 x 31.50" (597 x 1,822 x 800mm)
  • Notes: - for HP / DELL / IBM servers equipped with sliding rails, please contact sales person for availability of model number WN368-EX.
    - HTS code: 8473.30.5100 (ECCN is not applicable).


Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
