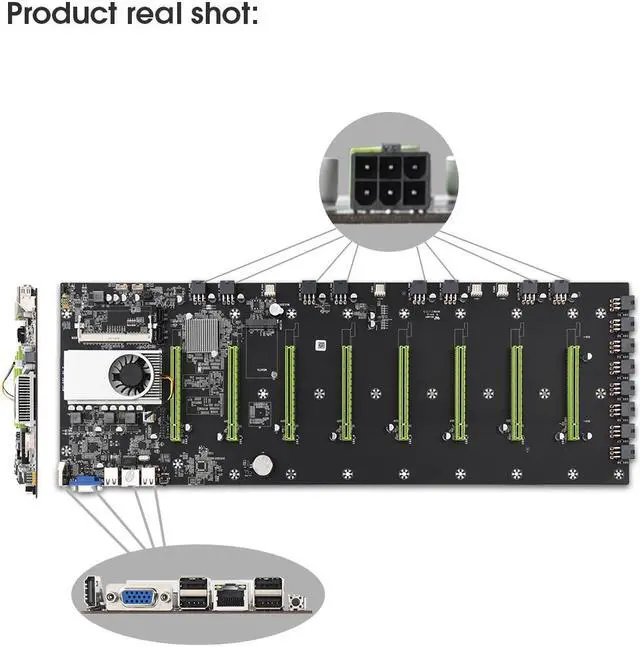

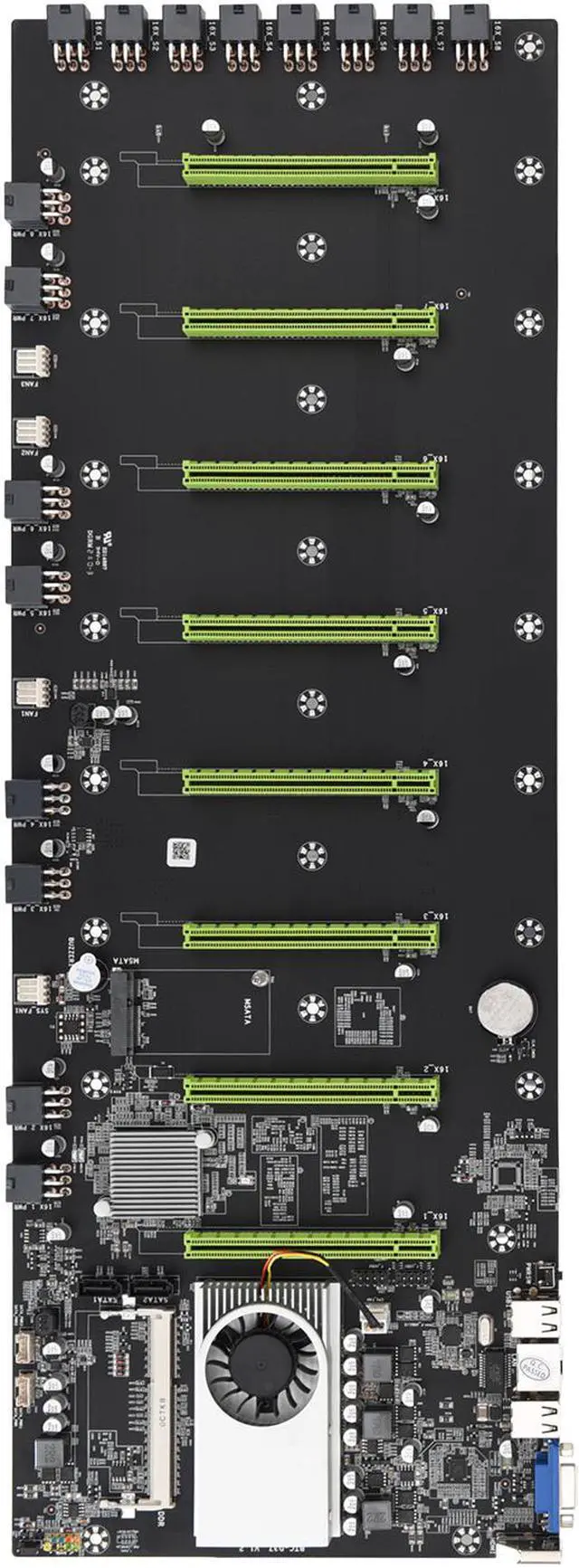

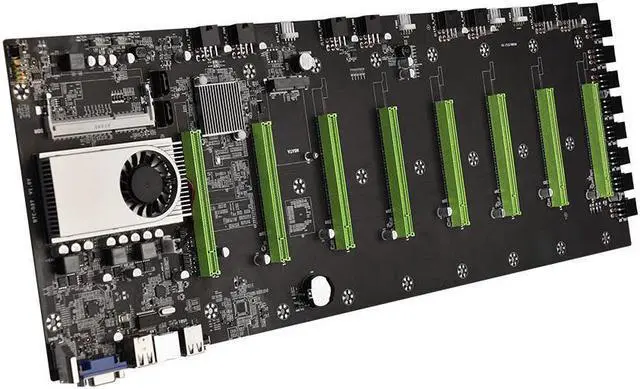

BTC-D37 Mining Motherboard CPU Set 8 Video Card Slot Support DDR3 Memory Integrated VGA Low Power Consumption Exquisite Better than x99
- 1. Memory slot, 8 graphics card plug.
- 2.The slot spacing of the PCI card is 55mm
- 3. The work actually done for you is lasting and useful.
- 4. The voltage stabilizing capacitor can provide a stable voltage for your power supply equipment.
- 5. It can ensure silent performance, low power consumption, less heat generation, energy saving and safe use.
- ??Don't forget Windows 10, we have OEM, Download and USB versions available
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Weight with packaging: 1150g
Packing size: 60*20*6cm

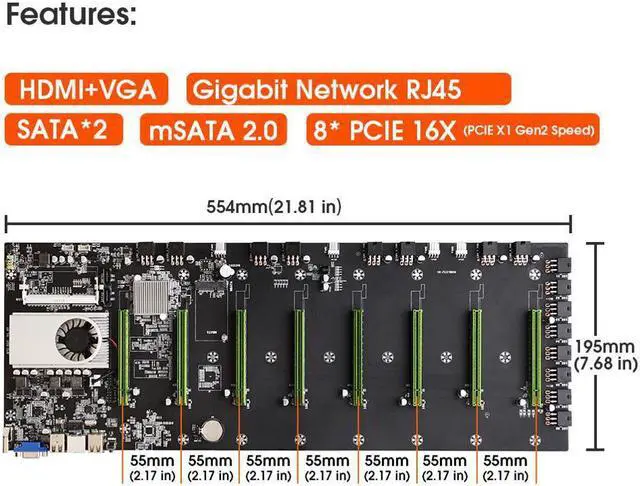

Product size: 554*195mm
Material: ABS + electronic components
Specifications:
Processor: On-board
CPU: Intel Celeron CPU 1037U @ 1.80GH z
Chipset: Intel HM65 Chipset Support 8*PCIE 16X slot (x1 GEN2 speed)
Display: Onboard VGA+HDMI display output or PCI
Ex16 extended discrete graphics.
Memory: Support SODIMM DDR3/DDR3L 1066/1333/1600MHz slot memory (ECC memory is not supported) (Memory is not included)
Sound card: None
Network card: 1*Realtek RTL8111F Gigabit Ethernet (supports Wake-on-LAN and PXE boot)
Storage: Support 1*SATA 3.0 +1*SATA 2.0 +1*mSATA 3.0 hard disk interface (Hard disk is not included)
USB: 8*USB 2.0
SuperIO: None
Power supply mode: DC12V miner power supply (6PIN*8)
Expansion slot: 8*PCIE 16X slot (x1 GEN2 speed) 1*mSATA 3.0 interface Onboard VGA+HDMI display output

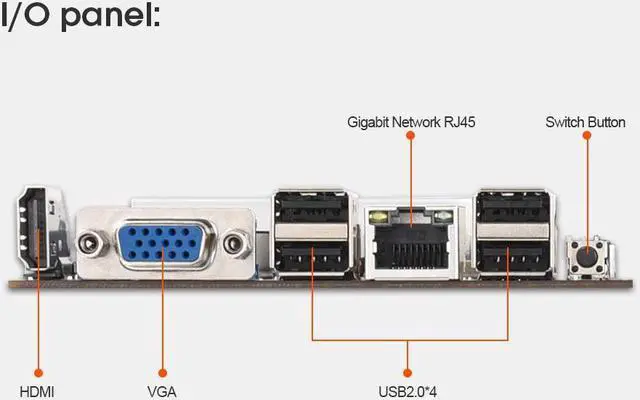

Rear I/O interface: 4*USB 2.0 port 1*RJ45 port 1*HDMI port 1*VGA port 1*switch button

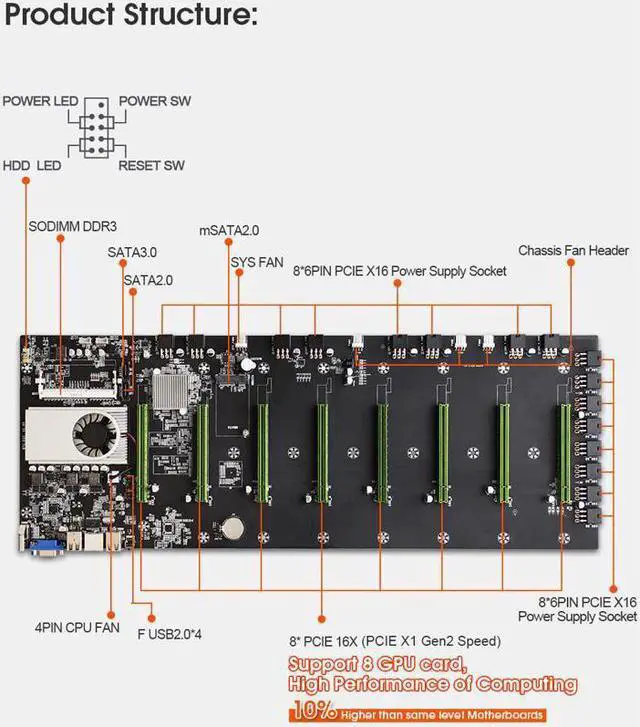

Internal interface: 2*F_USB 2.0 pin (expandable 4*USB 2.0 port) 2*Vertical SATA interface (SATA1 3.0 speed, SATA2 2.0 speed) 1*F_PANEL pin 1*3PIN hardware power-on jumper 2*4PIN SATA PWR Header 1*CPU_FAN pin 1*SYS_FAN pin 3*Chassis fan pin 1*mSATA 3.0 interface 1*2PIN CLR_CMOS Header 8*6PIN PCI
Ex16 graphics card power access slot 8*6PIN motherboard power supply slot
Packing size: 60*20*6cm
Product size: 554*195mm
Material: ABS + electronic components
Specifications:
Processor: On-board
CPU: Intel Celeron CPU 1037U @ 1.80GH z
Chipset: Intel HM65 Chipset Support 8*PCIE 16X slot (x1 GEN2 speed)
Display: Onboard VGA+HDMI display output or PCI
Ex16 extended discrete graphics.
Memory: Support SODIMM DDR3/DDR3L 1066/1333/1600MHz slot memory (ECC memory is not supported) (Memory is not included)
Sound card: None
Network card: 1*Realtek RTL8111F Gigabit Ethernet (supports Wake-on-LAN and PXE boot)
Storage: Support 1*SATA 3.0 +1*SATA 2.0 +1*mSATA 3.0 hard disk interface (Hard disk is not included)
USB: 8*USB 2.0
SuperIO: None
Power supply mode: DC12V miner power supply (6PIN*8)
Expansion slot: 8*PCIE 16X slot (x1 GEN2 speed) 1*mSATA 3.0 interface Onboard VGA+HDMI display output
Rear I/O interface: 4*USB 2.0 port 1*RJ45 port 1*HDMI port 1*VGA port 1*switch button
Internal interface: 2*F_USB 2.0 pin (expandable 4*USB 2.0 port) 2*Vertical SATA interface (SATA1 3.0 speed, SATA2 2.0 speed) 1*F_PANEL pin 1*3PIN hardware power-on jumper 2*4PIN SATA PWR Header 1*CPU_FAN pin 1*SYS_FAN pin 3*Chassis fan pin 1*mSATA 3.0 interface 1*2PIN CLR_CMOS Header 8*6PIN PCI
Ex16 graphics card power access slot 8*6PIN motherboard power supply slot
