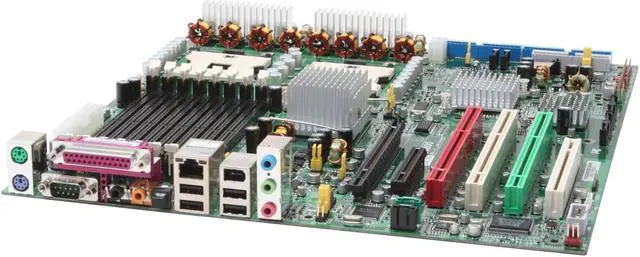

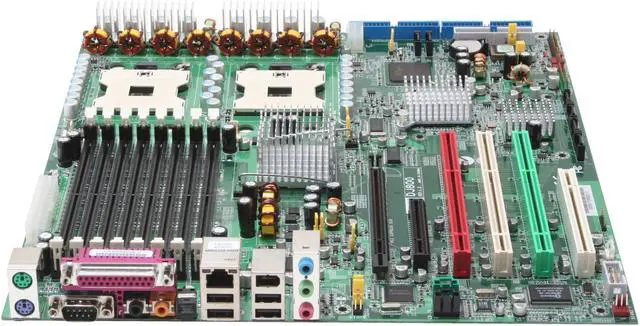

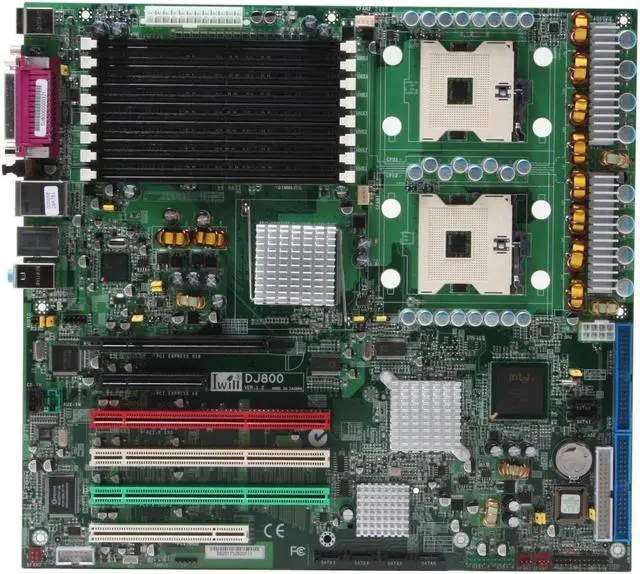

Iwill DJ800 Extended ATX Server Motherboard Dual 603/604 Intel E7525 DDR2 400
- Dual 603/604
- Intel E7525 Intel 6700PXH 64-bit PCI Hub
- 8 x 240Pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Iwill DJ800
| Brand | Iwill |
|---|---|
| Model | DJ800 |
| CPU Socket Type | Dual 603/604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| Supported CPU Technologies | Hyper-Threading technology Intel Extended Memory 64 Technology Demand Based Switching with Enhanced Intel SpeedStep Technology Streaming SIMD Extensions 3 (SSE3) |
| North Bridge | Intel E7525 |
|---|---|
| South Bridge | Intel ICH5R |
| Other Chipset | Intel 6700PXH 64-bit PCI Hub |
| Number of DDR2 Slots | 8 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 400 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 1 x PCI Slot |
| SATA | 4 x SATA 1.5Gb/s |
|---|---|
| SATA RAID | 0/1/0+1 |
| Additional SATA | 2 x SATA 1.5Gb/s |
| Additional SATA RAID | 0/1 |
| Additional RAID Controller | ICH5R |
| Audio Chipset | ADI AD1980 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82541PI Gigabit Ethernet Controller |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x SPDIF Out |
| Audio Ports | 3 Ports |
| Features | EPS 12V Power Supply PCI-X 1.0 specification compliant SSI EEB 3.5 Compliant |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | December 07, 2005 |
|---|
