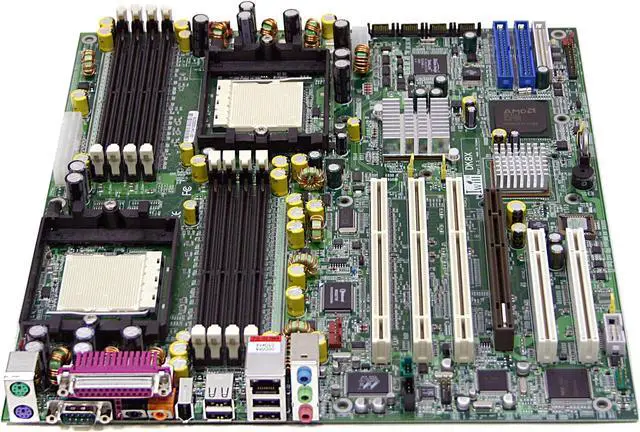

Iwill DK8X SSI EEB 3.0 Server Motherboard Dual 940 AMD 8131 + 8151
- Dual 940
- AMD 8131 + 8151
- 8 x 184Pin
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Iwill DK8X
| Brand | Iwill |
|---|---|
| Model | DK8X |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual / Single AMD Opteron |
| North Bridge | AMD 8131 + 8151 |
|---|---|
| South Bridge | AMD-8111 |
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 333 (PC 2700) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 2 x PCI Slots |
| SATA | 4 x SATA 1.5Gb/s |
|---|---|
| SATA RAID | 0/1/0+1 |
| Additional RAID Controller | Sil 3114 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | 3COM 3C940 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 2x USB2.0 + 2x USB1.1 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | SSI EEB 3.0 |
|---|---|
| Dimensions (W x L) | 12" x 13" |
| First Listed on Newegg | April 28, 2004 |
|---|
