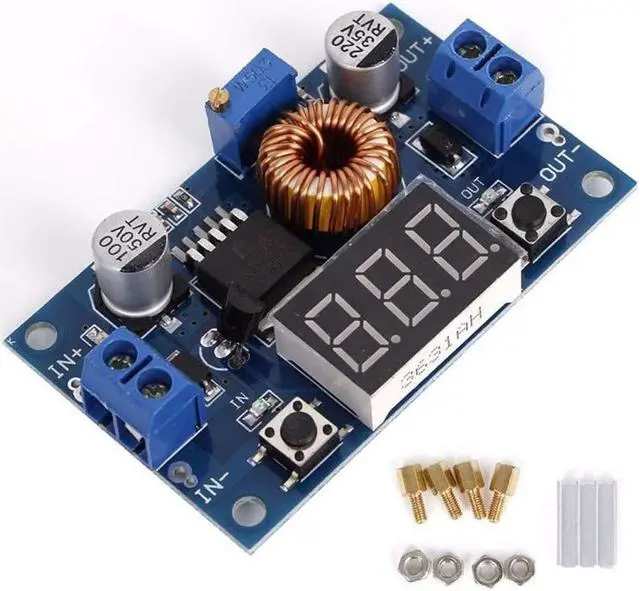

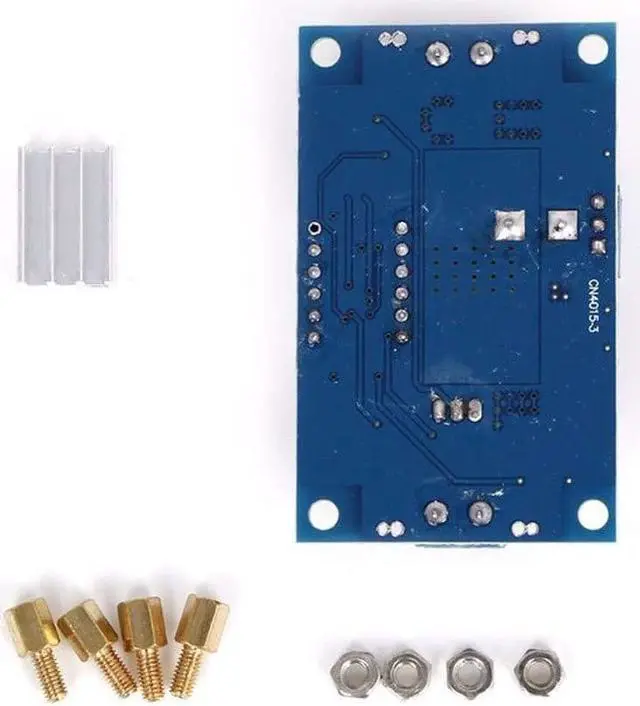

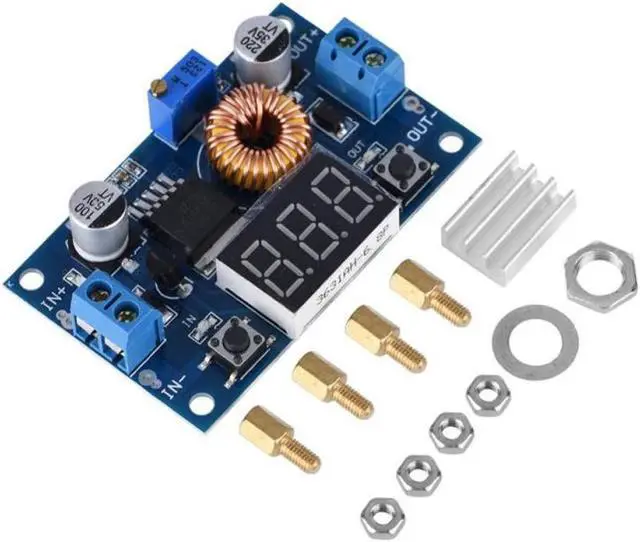

XL4015 5A DC-DC Buck Step-Down Voltage Converter Module Adjustable Power Regulator Board with LED Voltmeter
- Maintain stable output voltage over a range of input voltages. Useful for a wide range of applications, such as powering 5V USB devices and low voltage electronics from a 12V battery, and many other electronic projects. Constant voltage regulation, suitable for LED strips and modules, but not for raw LEDs
- Input Voltage: 4-38V DC, Output Voltage: 1.25-36V DC, Max Load: 75W/5A Peak, 50W/3.5A Sustained (whichever is lower, amps or watts)
- Conversion Efficiency: Up to 96%
- Dimensions: 66x39x18mm, XL4015 IC, 180KHz Switching Frequency
- Input must be at least 1.5V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

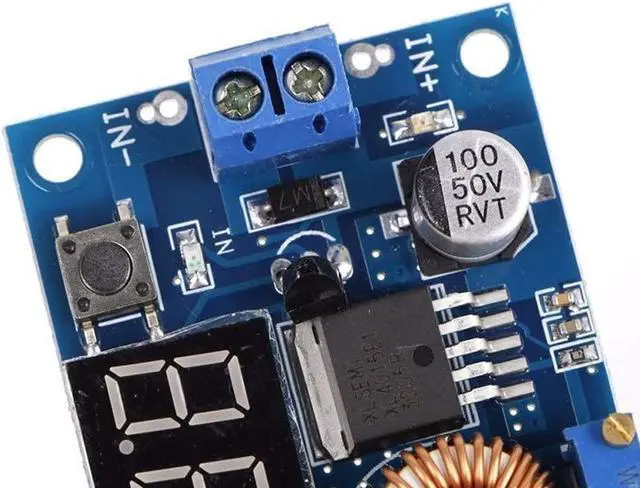

This module combines the high efficiency XMLSEMI XL4015 DC-DC buck converter IC with an LED voltmeter. The built in voltmeter makes for simple installation and adjustment and helps to monitor the supply or device power. Voltage is adjusted using a potentiometer. A small button switches the voltmeter between input and output.
