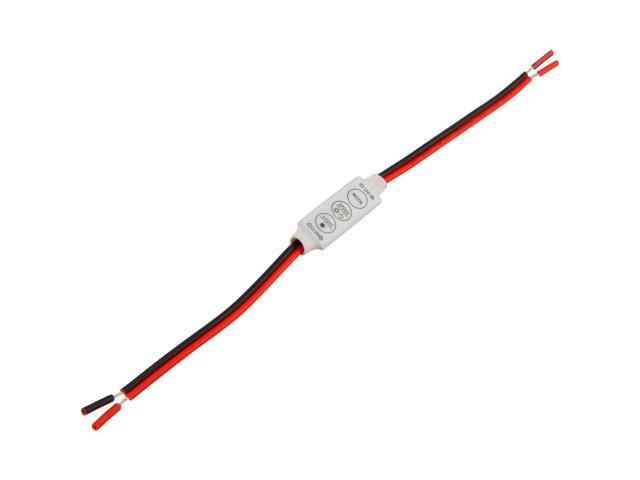

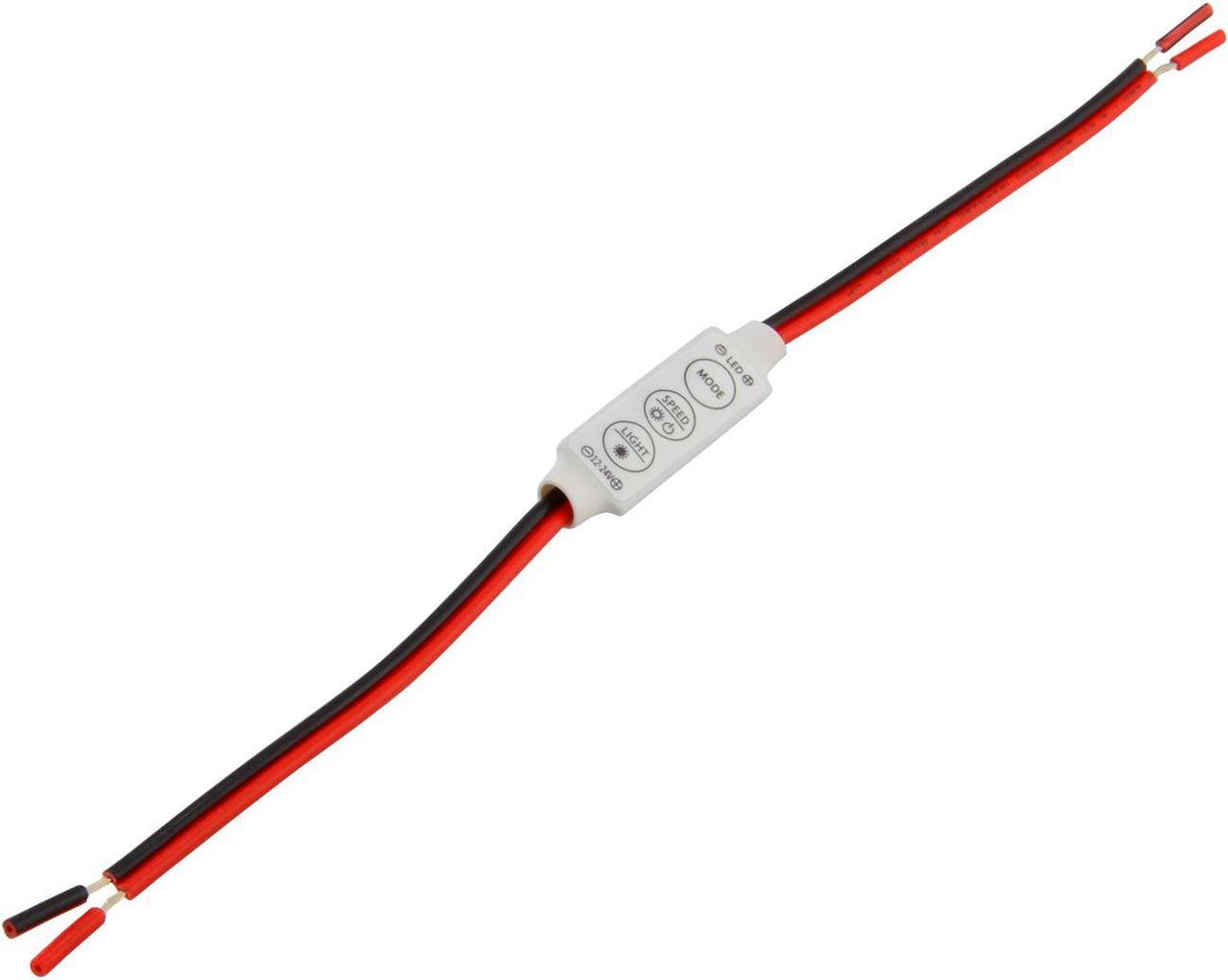

Low-profile Inline Controller Dimmer Switch for LED Strip Light, Bare Wire
- This inline dimmer switch offers a low-profile way to control single color LED strip lights. Choose from 8 levels of brightness, turn lights on or off, or choose a dynamic mode for added effect. The bare wire connection offers maximum flexibility for professional installers.
- Voltage: 12V, Max Load: 12A (144W)
- Size: 42x12x3mm
- Dynamic modes: gradual change, signal light, strobe, breathe, candlelight
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Instructions:
To turn it on press the middle button for 2 seconds.
To turn it off press and hold the middle button.
To enable standard dimmer mode, press the lower button once, then you can press the middle button to increase brightness or press the lower button to lower brightness.
To enable one of the dynamic modes press the top button. There are five dynamic modes. Switch between them by pressing the top button. The speed of the dynamic modes can be adjusted by pressing the middle button. To exit dynamic mode, click the lower button once which switches it back to standard dimmer mode.
To turn it on press the middle button for 2 seconds.
To turn it off press and hold the middle button.
To enable standard dimmer mode, press the lower button once, then you can press the middle button to increase brightness or press the lower button to lower brightness.
To enable one of the dynamic modes press the top button. There are five dynamic modes. Switch between them by pressing the top button. The speed of the dynamic modes can be adjusted by pressing the middle button. To exit dynamic mode, click the lower button once which switches it back to standard dimmer mode.
