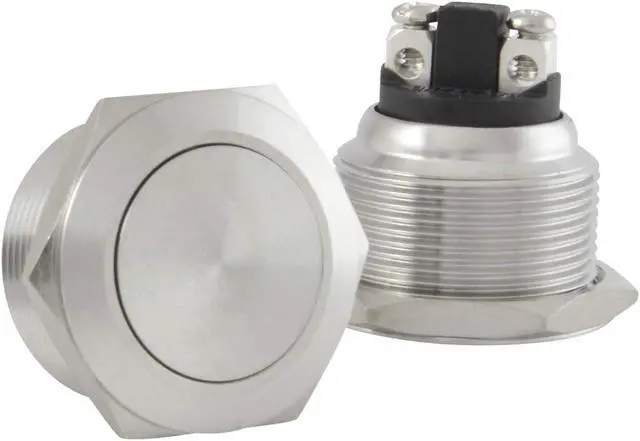

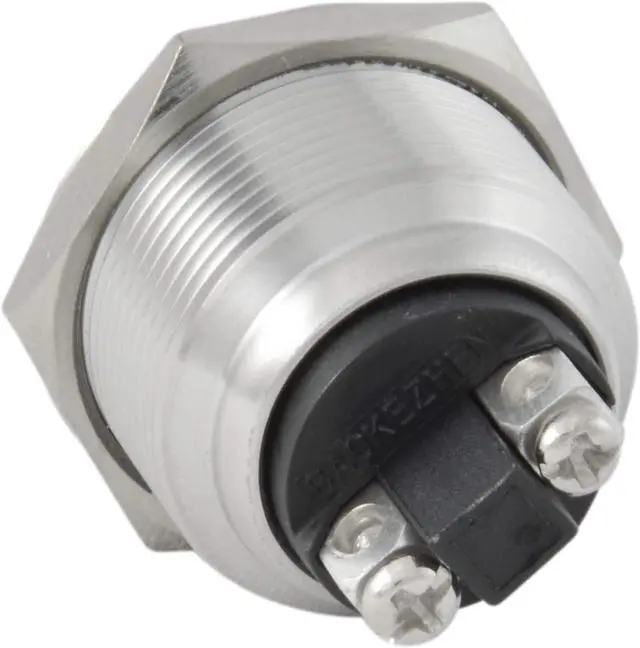

JacobsParts Momentary Pushbutton Starter Switch Circular Stainless Steel Metal Silver fits 5/8" (22mm) Diameter Panel Cutout Hole
- Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles, and any application in which temporary activation of an electrical current is desired
- This switch has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
- Constructed of stainless steel; resists rust and corrosion
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Installation: Cut mounting hole into the panel using a 7/8" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
Operation Type: Momentary (push the button, ON; release it, OFF), Max
Switch Rating: 250V AC/DC 5A, Panel
Cutout Diameter: 7/8" (22mm)
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 7/8" (22mm)

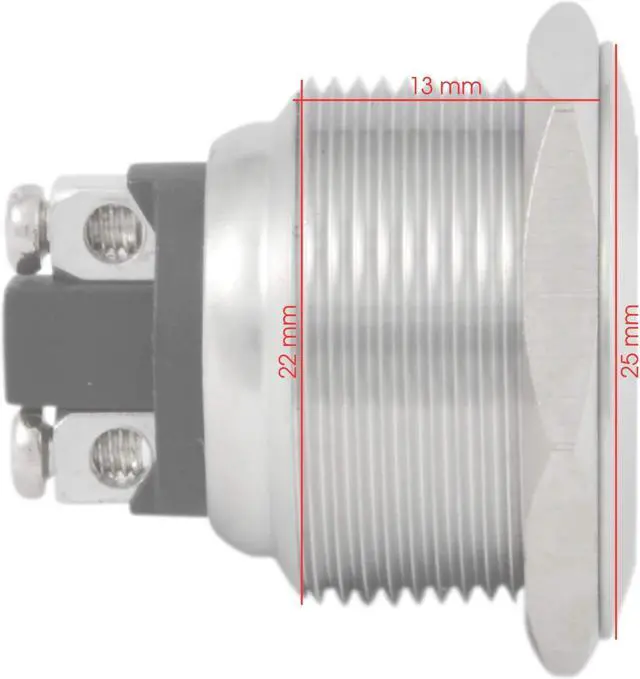

Thread Depth: 1/2" (13mm)
Total Depth (Including Contacts): 1-1/32" (26mm)
Faceplate Diameter: 1" (25mm)
Max Switch Rating: 250V AC/DC 5A
Circuit Type: 1 NO (circuit is normally open/inactive)
Switch Type: SPST (Single Pole, Single Throw)
Enclosure Material: Stainless steel
Protection Level: IP67
Operation Temperature: -20C to 55C
For boat horns, starter switches, and other applications in which temporary activation of an electrical current is desired
Constructed of stainless steel; resists rust and corrosion
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
Operation Type: Momentary (push the button, ON; release it, OFF), Max
Switch Rating: 250V AC/DC 5A, Panel
Cutout Diameter: 7/8" (22mm)
Specifications
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 7/8" (22mm)
Thread Depth: 1/2" (13mm)
Total Depth (Including Contacts): 1-1/32" (26mm)
Faceplate Diameter: 1" (25mm)
Max Switch Rating: 250V AC/DC 5A
Circuit Type: 1 NO (circuit is normally open/inactive)
Switch Type: SPST (Single Pole, Single Throw)
Enclosure Material: Stainless steel
Protection Level: IP67
Operation Temperature: -20C to 55C
For boat horns, starter switches, and other applications in which temporary activation of an electrical current is desired
Constructed of stainless steel; resists rust and corrosion
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
