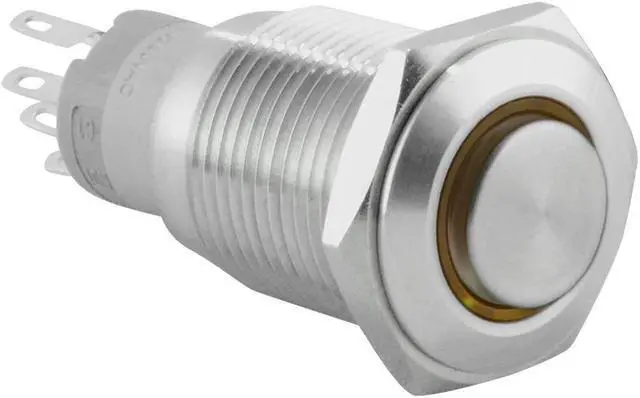

16mm Latching Push Button Power Switch Stainless Steel w/ Orange LED Waterproof
- Latching maintained pushbutton power switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for auxiliary LED accent lights on truck beds, boat trims, sailboat masts, car underbodies, and motorcycles
- This switch is constructed of non-oxidizing, corrosion resistant stainless steel. It has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage

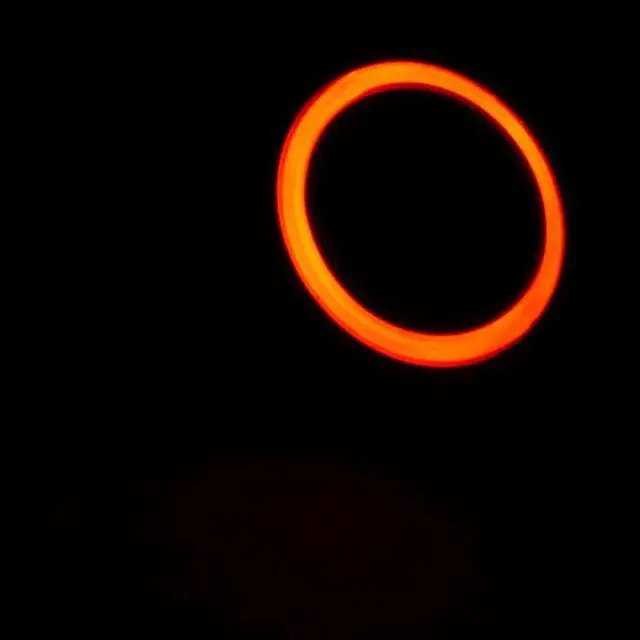

- The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
- Installation: Cut mounting hole in the panel using a 5/8" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF);
Max Switch Rating: 250V AC/DC 3A;
LED rating: 12V DC 15mA;
Panel Cutout Diameter: 5/8" (16mm)
Operation Mode: ON-OFF
Contact Type: Normally Open, Normally Closed
Connector Type: Screw
Switch Type: Maintained
Terminal: Spdt
Material: Metal
Illumination: Illuminated
Button Color: Orange
Mounting Type: Panel Mount
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF)

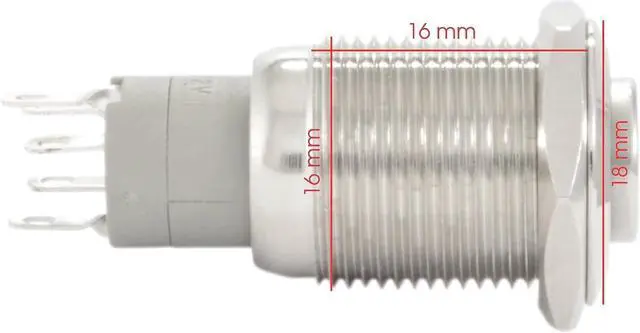

Panel Cutout Diameter: 5/8" (16mm)
Thread Depth: 5/8" (16mm)
Total Depth (Including Contacts): 1.5" (36mm)
Faceplate Diameter: 3/4" (18mm)
Max Switch Rating: 250V AC/DC 3A
LED rating: 12V DC 15mA
Circuit Type: 1NO1NC (one pair of normally open contacts and one pair of normally closed contacts)
Switch Type: SPDT (Single Pole, Double Throw)
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20C to 55C
Latching switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects
Constructed of stainless steel; resists rust and corrosion
The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF);
Max Switch Rating: 250V AC/DC 3A;
LED rating: 12V DC 15mA;
Panel Cutout Diameter: 5/8" (16mm)
Specifications
Operation Mode: ON-OFF
Contact Type: Normally Open, Normally Closed
Connector Type: Screw
Switch Type: Maintained
Terminal: Spdt
Material: Metal
Illumination: Illuminated
Button Color: Orange
Mounting Type: Panel Mount
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF)
Panel Cutout Diameter: 5/8" (16mm)
Thread Depth: 5/8" (16mm)
Total Depth (Including Contacts): 1.5" (36mm)
Faceplate Diameter: 3/4" (18mm)
Max Switch Rating: 250V AC/DC 3A
LED rating: 12V DC 15mA
Circuit Type: 1NO1NC (one pair of normally open contacts and one pair of normally closed contacts)
Switch Type: SPDT (Single Pole, Double Throw)
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20C to 55C
Latching switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects
Constructed of stainless steel; resists rust and corrosion
The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
