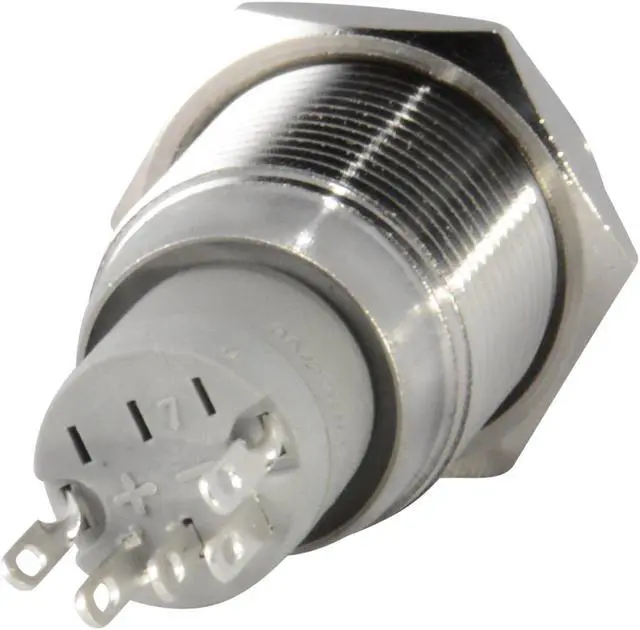

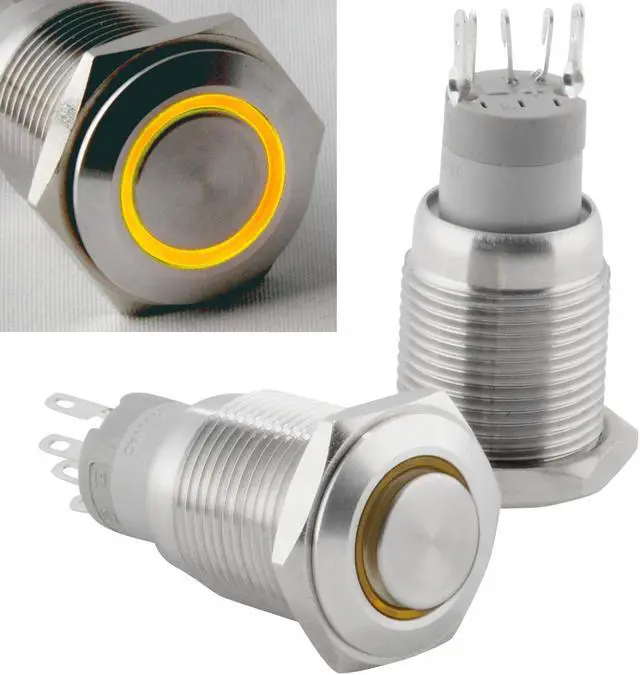

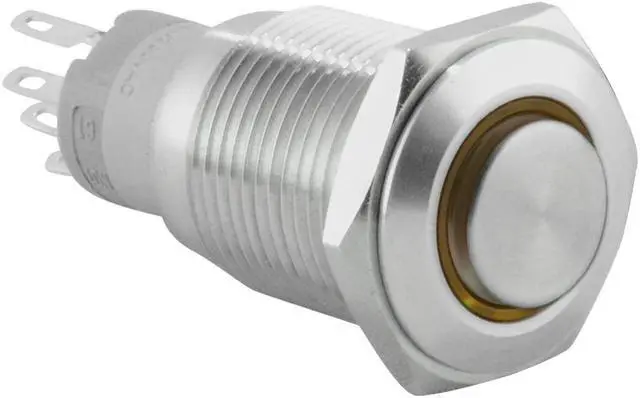

16mm Latching Push Button Power Switch Stainless Steel w/ Yellow LED Waterproof

The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF);
Max Switch Rating: 250V AC/DC 3A;
LED rating: 12V DC 15mA;
Panel Cutout Diameter: 5/8" (16mm)
Operation Mode: ON-OFF
Contact Type: Normally Open, Normally Closed
Connector Type: Screw
Switch Type: Push Button
Terminal: Spdt
Material: Metal
Mounting Type: Panel Mount
Button Color: Yellow
Illumination: Illuminated
Button Shape: Round
Switch Action: Maintained

Specifications

Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF)

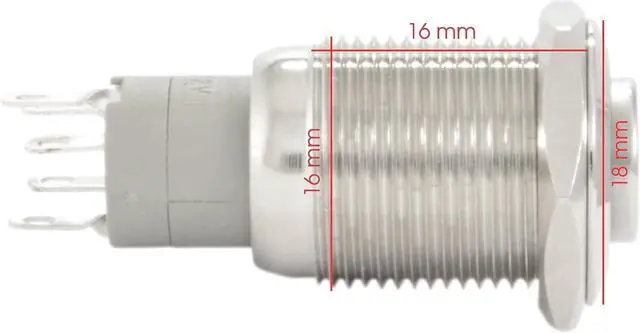

Panel Cutout Diameter: 5/8" (16mm)
Thread Depth: 5/8" (16mm)
Total Depth (Including Contacts): 1.5" (36mm)
Faceplate Diameter: 3/4" (18mm)
Max Switch Rating: 250V AC/DC 3A
LED rating: 12V DC 15mA
Circuit Type: 1NO1NC (one pair of normally open contacts and one pair of normally closed contacts)
Switch Type: SPDT (Single Pole, Double Throw)
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20C to 55C
Latching switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects
Constructed of stainless steel; resists rust and corrosion

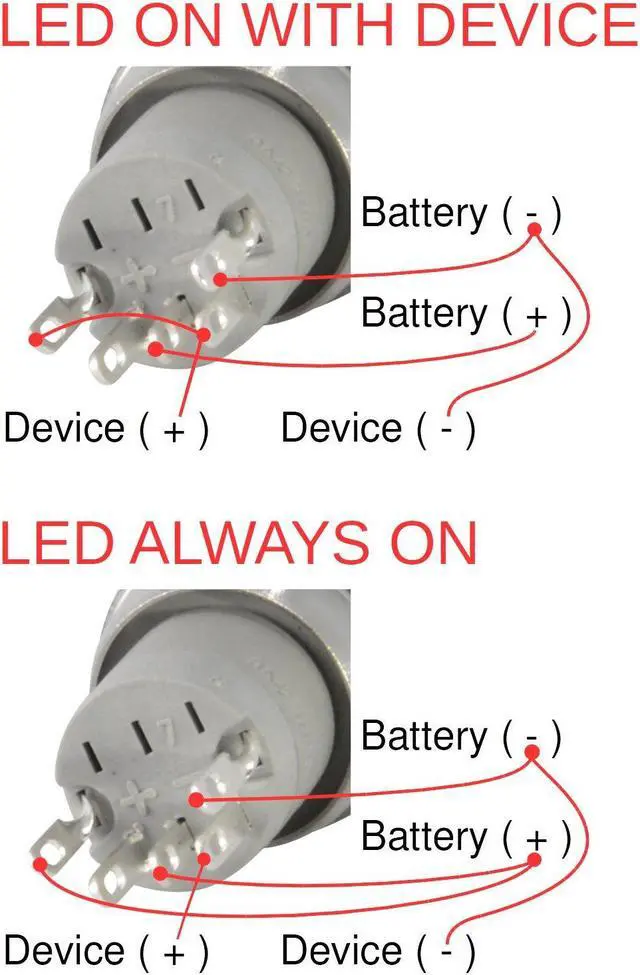

The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage.
