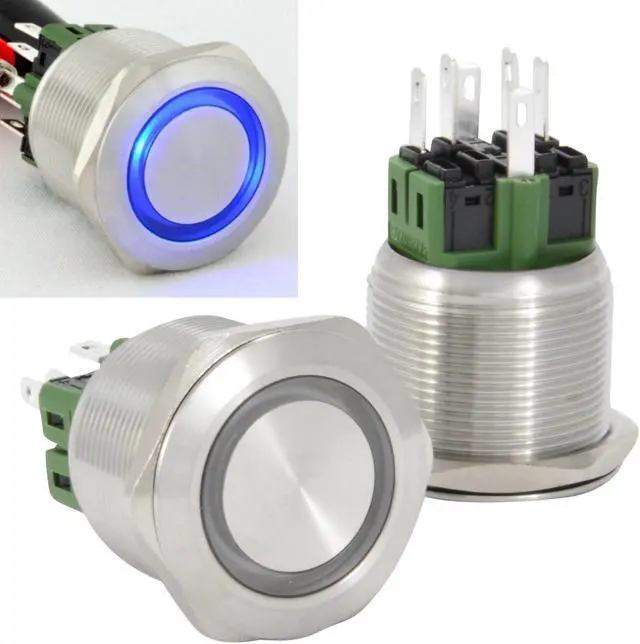

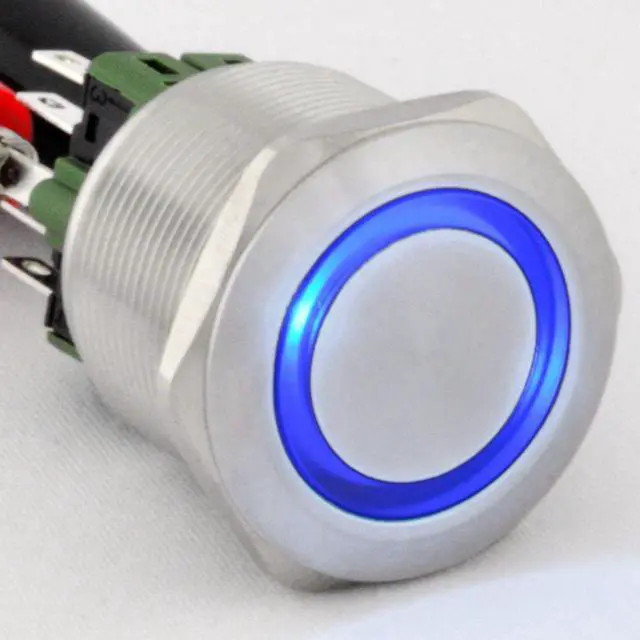

25mm Latching Push Button Power Switch Stainless Steel w/ Blue LED Waterproof

Installation: Cut mounting hole in the panel using a 1" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
Operation Type: Latching Maintained (Push it, ON; Push it again, OFF), Max
Switch Rating: 250V AC/DC 5A, LED
rating: 12V DC 15mA, Panel
Cutout Diameter: 1" (25mm)

Specifications

Operation Type: Latching/Maintained (Push it, ON; Push it again, OFF)

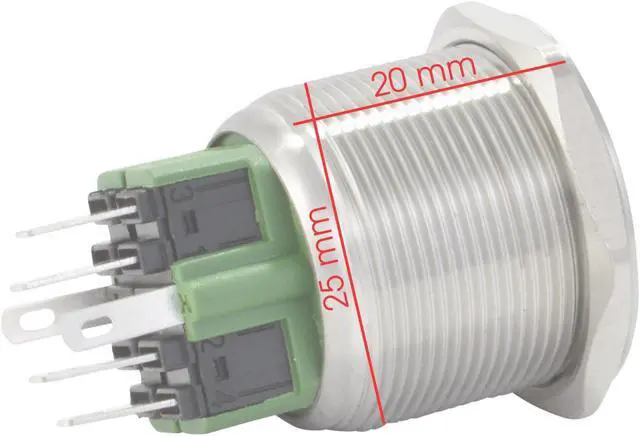

Panel Cutout Diameter: 1" (25mm)
Thread Depth: 13/16" (20mm)
Faceplate Diameter: 1-1/8" (28mm)
Total Depth (Including Contacts): 43mm
Max Switch Rating: 250V AC/DC 5A
LED rating: 12V DC 15mA
Circuit Type: 1NO1NC (one pair of normally open contacts and one pair of normally closed contacts)
Switch Type: SPDT (Single Pole, Double Throw)
Enclosure Material: Stainless steel
Protection Level: IP67
Operation Temperature: -20C to 55C

Latching switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects
Constructed of stainless steel; resists rust and corrosion

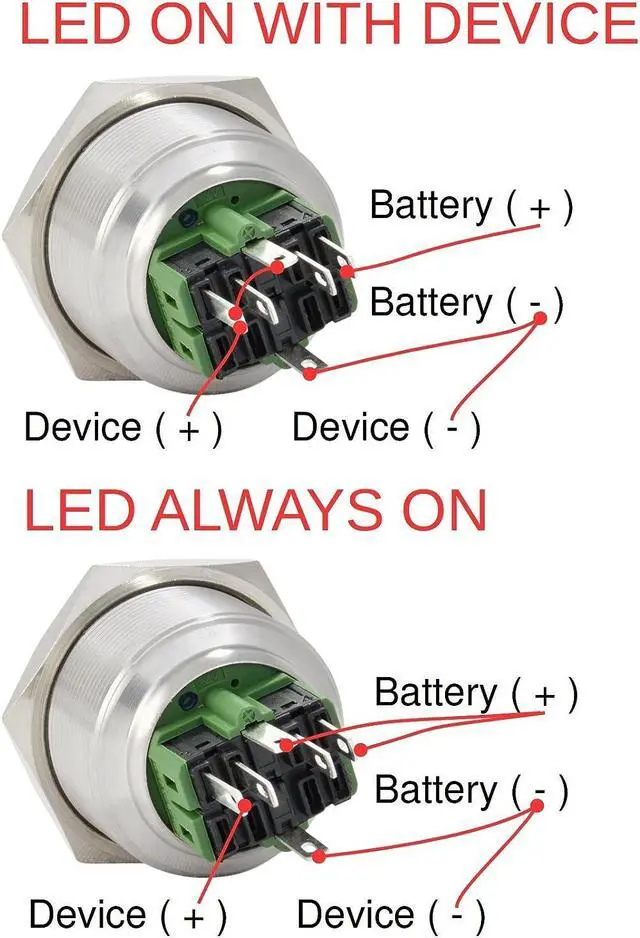

The switch and LED are separate. The LED can be on all the time or only when the switch is ON, depending on how you wire it
Rated PI67 waterproof. May be exposed to heavy rain, splashes, etc. without damage
