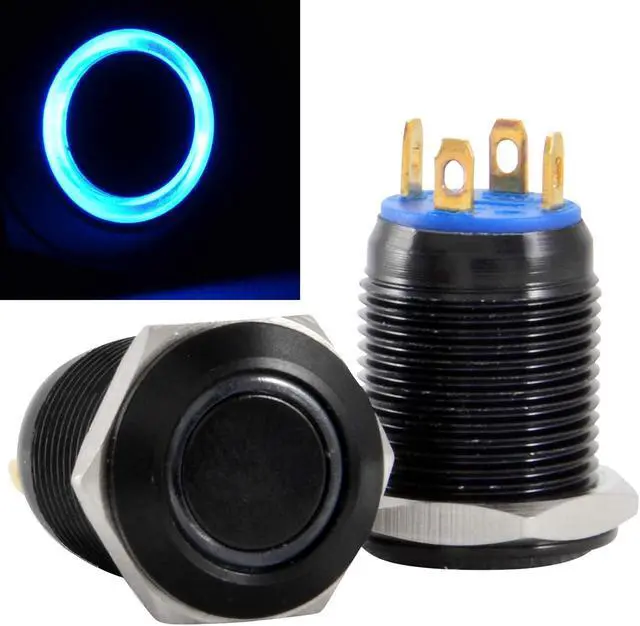

12mm Black Stainless Steel Momentary Push Button Switch Blue LED
- Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
- This switch has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
- The switch and LED are separate. The LED can be on all the time or only when the button is pressed
- Installation: Cut mounting hole into the panel using a 1/2" drill bit. Screw the threaded "neck" of the switch into the panel cutout hole and secure it on the reverse side of the panel with the included metal nut. The included rubber O-ring may optionally be used for additional water resistance by placing the ring between the top of the neck (just behind the faceplate) and the front of the panel. Package includes switch, metal nut and rubber O-ring
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Operation Type: Momentary (push the button, ON; release it, OFF), Max
Switch Rating: 250V AC/DC 2A, LED
rating: 3V/12V/24V DC 15mA, Panel

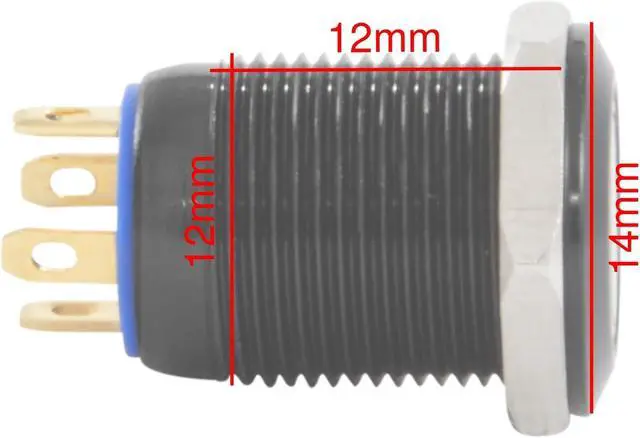

Cutout Diameter: 1/2" (12mm)
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 1/2" (12mm)
Thread Depth: 1/2" (12mm)
Faceplate Diameter: 9/16" (14mm)
Total Depth (Including Contacts): 13/16" (21mm)
Circuit Type: 1 NO (circuit is normally open/inactive)
Switch Type: SPST (Single Pole, Single Throw)
Max Switch Rating: 250V AC/DC 2A
LED Rating: 3V / 12V / 24V DC 15mA (Included resistor allows use in 12V and 24V applications)
Enclosure Material: Aluminum zinc alloy
Protection Level: IP67
Operation Temperature: -20C to 55C
Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
Constructed of a non-oxidizing, corrosion resistant aluminum alloy
Accented with brilliant LED light ring

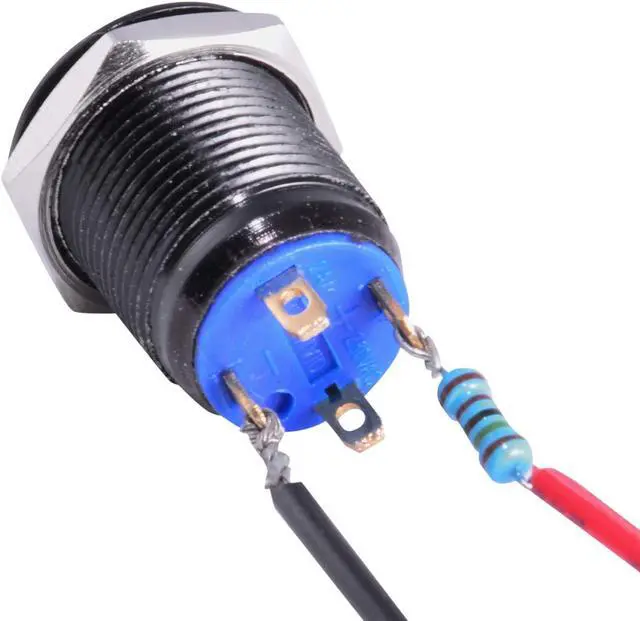

For 12V or 24V applications, simply install the included resistor between the switch's positive contact and the positive (typically red) wire of the device. See image for clarification.
Switch Rating: 250V AC/DC 2A, LED
rating: 3V/12V/24V DC 15mA, Panel
Cutout Diameter: 1/2" (12mm)
Specifications
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 1/2" (12mm)
Thread Depth: 1/2" (12mm)
Faceplate Diameter: 9/16" (14mm)
Total Depth (Including Contacts): 13/16" (21mm)
Circuit Type: 1 NO (circuit is normally open/inactive)
Switch Type: SPST (Single Pole, Single Throw)
Max Switch Rating: 250V AC/DC 2A
LED Rating: 3V / 12V / 24V DC 15mA (Included resistor allows use in 12V and 24V applications)
Enclosure Material: Aluminum zinc alloy
Protection Level: IP67
Operation Temperature: -20C to 55C
Momentary pushbutton switches may be used in a variety of applications including cars, motorcycles, boats, computers, LEDs, and electronics projects. Use them as a power switch for your computer, a boat horn or starter switches for cars, trucks and other automobiles
Constructed of a non-oxidizing, corrosion resistant aluminum alloy
Accented with brilliant LED light ring
For 12V or 24V applications, simply install the included resistor between the switch's positive contact and the positive (typically red) wire of the device. See image for clarification.
