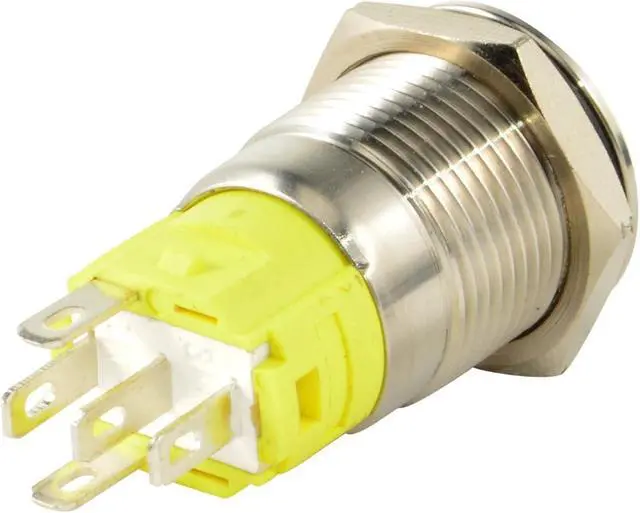

JacobsParts 16mm 12V LED ON Off Push Button Power Switch Latching Stainless Metal Waterproof (Red)
- 12V Latching pushbutton power switch may be used in a variety of applications including cars, boats, motorcycles and electronics modifications
- Constructed of non-oxidizing, corrosion resistant stainless steel. It has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
- Switch may be installed for continuous illumination, or illumination for "power on" mode only

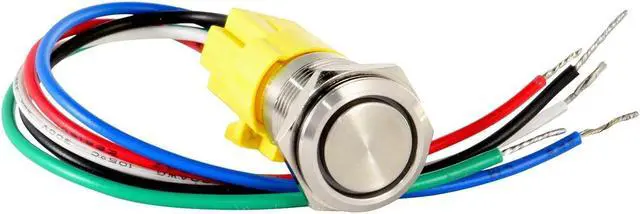

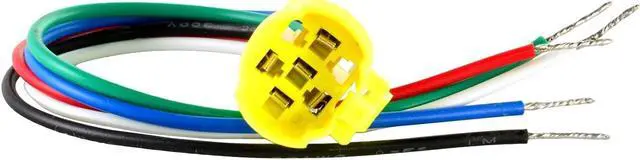

- Included wire harness provides for easy installation (no soldering required). Rubber O-ring may optionally be used for additional water resistance
- Operation Type: Latching/Maintained (Push the button, ON; Push the button again, OFF) Max Switch Rating: 250V AC/DC 3A LED Color: Red LED rating: 12V DC 15mA Panel Cutout Diameter: 5/8" (16mm) Package includes switch, metal nut, rubber O-ring and wire harness
- Operation Mode: ON-OFF
- Contact Type: Normally Open
- Connector Type: Solder
- Switch Type: Push Button, Metal
- Terminal: Button
- Material: Stainless Steel
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12V Latching pushbutton power switch may be used in a variety of applications including cars, boats, motorcycles and electronics modifications
Constructed of non-oxidizing, corrosion resistant stainless steel. It has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
Switch may be installed for continuous illumination, or illumination for "power on" mode only
Included wire harness provides for easy installation (no soldering required). Rubber O-ring may optionally be used for additional water resistance
Operation Type: Latching/Maintained (Push the button, ON; Push the button again, OFF)
Max Switch Rating: 250V AC/DC 3A
LED Color: Red
LED rating: 12V DC 15mA
Panel Cutout Diameter: 5/8" (16mm) Package includes switch, metal nut, rubber O-ring and wire harness
Operation Mode: ON-OFF
Contact Type: Normally Open
Connector Type: Solder
Switch Type: Push Button, Metal
Terminal: Button
Material: Stainless Steel
Mounting Type: Panel Mount
Panel Cutout Shape: Circular
Button Shape: Round
Button Color: Silver

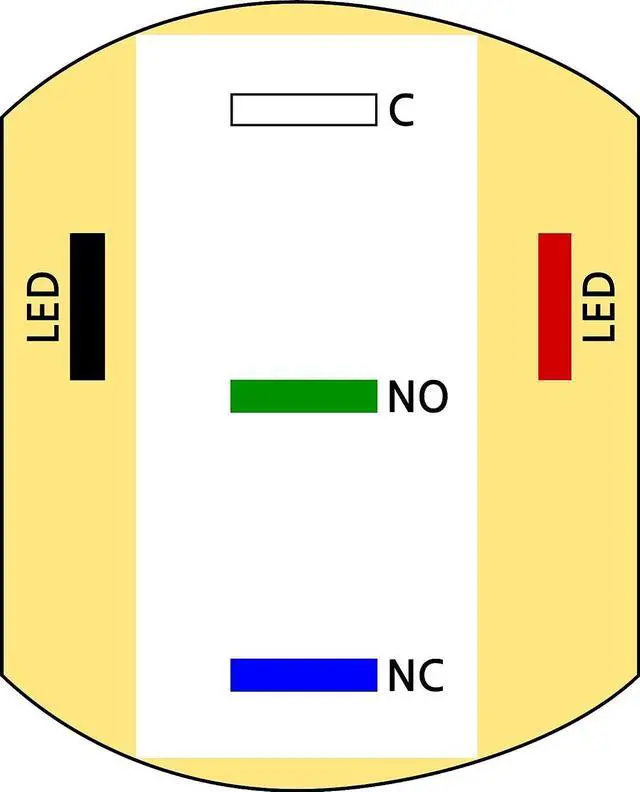

Contact Form: Single Pole Double Throw
Illumination: Illuminated
Constructed of non-oxidizing, corrosion resistant stainless steel. It has a protection rating of IP67 waterproof, meaning it can withstand exposure to heavy rain, splashes, etc., without damage
Switch may be installed for continuous illumination, or illumination for "power on" mode only
Included wire harness provides for easy installation (no soldering required). Rubber O-ring may optionally be used for additional water resistance
Operation Type: Latching/Maintained (Push the button, ON; Push the button again, OFF)
Max Switch Rating: 250V AC/DC 3A
LED Color: Red
LED rating: 12V DC 15mA
Panel Cutout Diameter: 5/8" (16mm) Package includes switch, metal nut, rubber O-ring and wire harness
Operation Mode: ON-OFF
Contact Type: Normally Open
Connector Type: Solder
Switch Type: Push Button, Metal
Terminal: Button
Material: Stainless Steel
Mounting Type: Panel Mount
Panel Cutout Shape: Circular
Button Shape: Round
Button Color: Silver
Contact Form: Single Pole Double Throw
Illumination: Illuminated
