JacobsParts 12V 2A 24W 802.3af Passive PoE Injector Power Over Ethernet Adapter for IP Cameras Phones WLAN AP

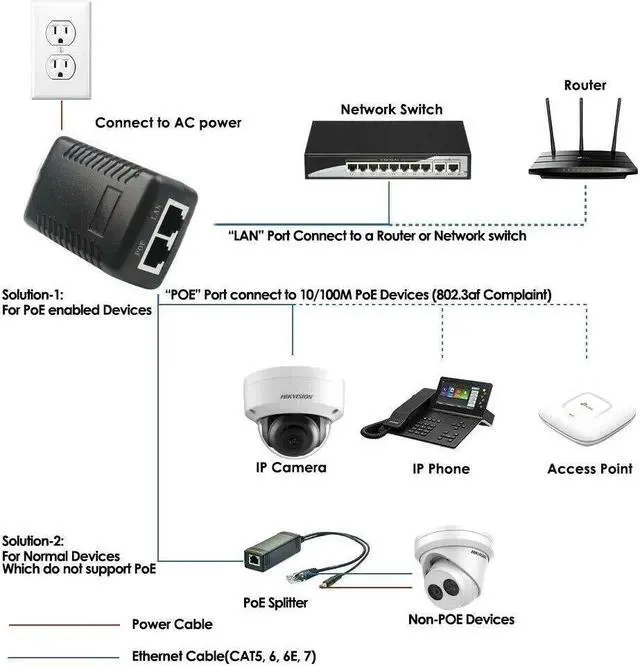

- Inject power into an Ethernet cable in order to provide both power and data over a single cable
- Simplify the installation of a WLAN AP, IP phone, IP Camera, or any other 802.3af passive POE capable device
- Plugs into a standard 120V wall outlet Works with standard Cat5, Cat5e, or Cat6 Ethernet cable

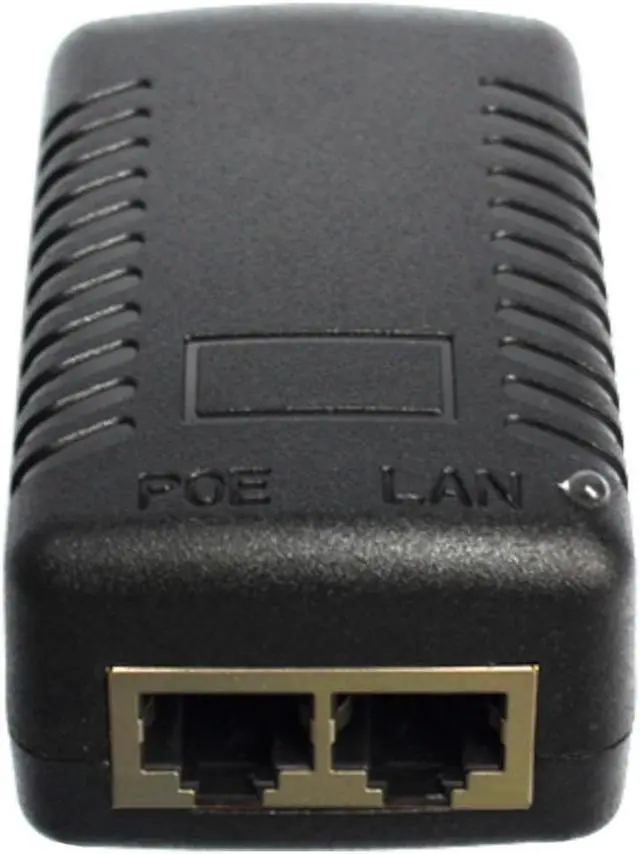

- 2 RJ45 Connectors: Standard Ethernet data input, Passive 802.3af mode B Output (100Mbps Ethernet data + always on power)
- Ethernet Pin Usage: Data: 1,2,3,6 Power: +(4,5),-(7,8) Dimension: 3¼" x 1¾" x 1½"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Inject power into an Ethernet cable in order to provide both power and data over a single cable
Simplify the installation of a WLAN AP, IP phone, IP Camera, or any other 802.3 af passive POE capable device
Plugs into a standard 120V wall outlet Works with standard Cat5, Cat5e, or Cat6 Ethernet cable
2 RJ45 Connectors: Standard Ethernet data input, Passive 802.3 af mode B Output (100Mbps Ethernet data + always on power)
Ethernet Pin Usage:
Data: 1, 2, 3, 6
Power: +(4, 5), -(7, 8)
Dimension: 3¼" x 1¾" x 1½"
Simplify the installation of a WLAN AP, IP phone, IP Camera, or any other 802.3 af passive POE capable device
Plugs into a standard 120V wall outlet Works with standard Cat5, Cat5e, or Cat6 Ethernet cable
2 RJ45 Connectors: Standard Ethernet data input, Passive 802.3 af mode B Output (100Mbps Ethernet data + always on power)
Ethernet Pin Usage:
Data: 1, 2, 3, 6
Power: +(4, 5), -(7, 8)
Dimension: 3¼" x 1¾" x 1½"
