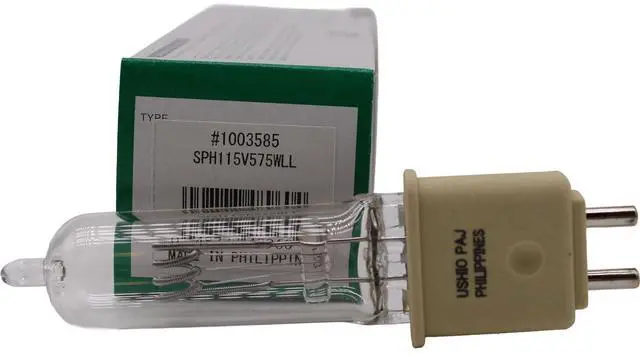

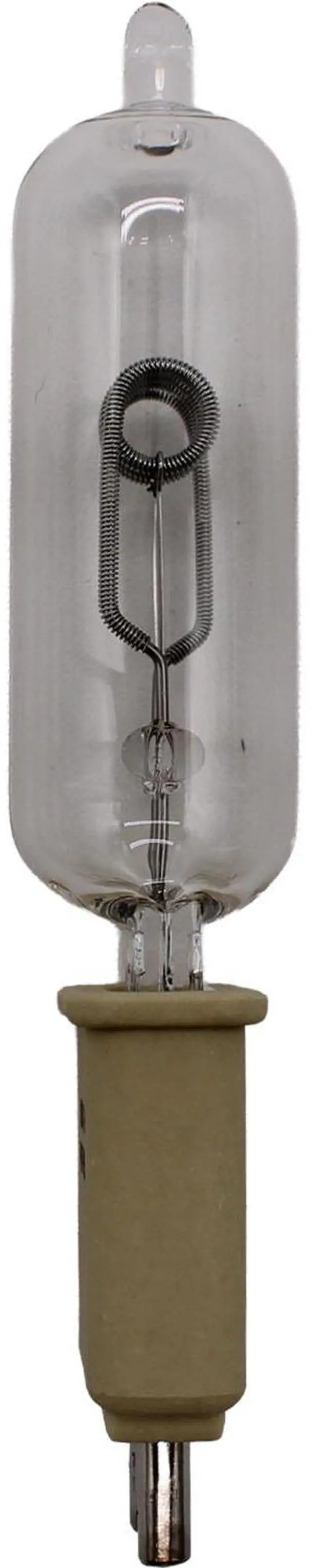

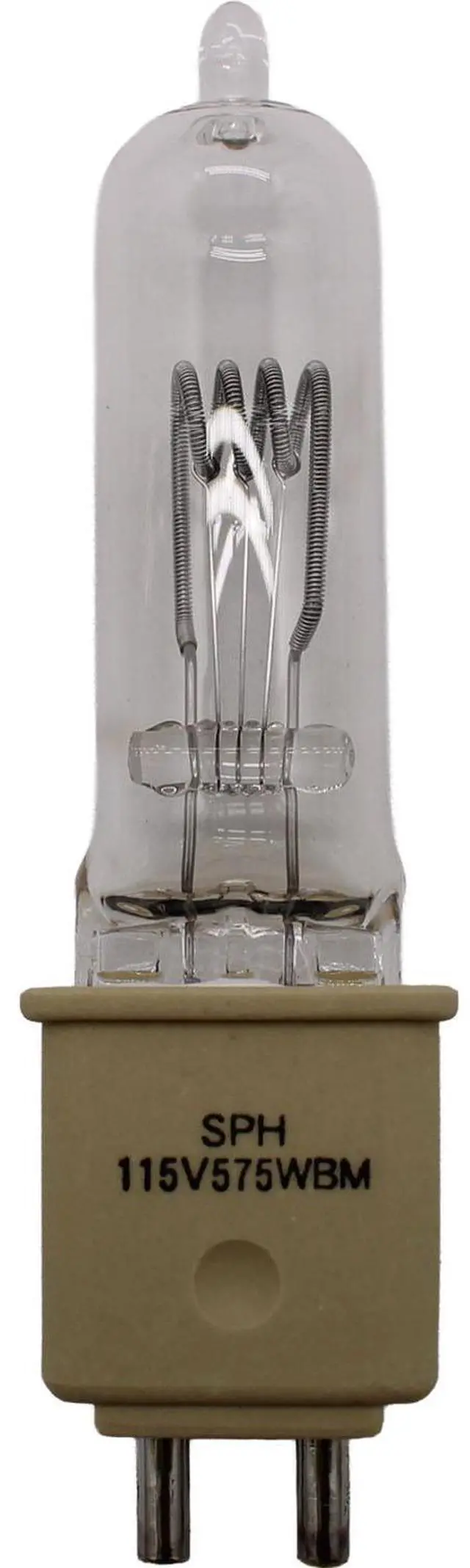

Ushio SPH 575W 115V Halogen Lamp for PAR and Ellipsoidal Spotlights - 1003585

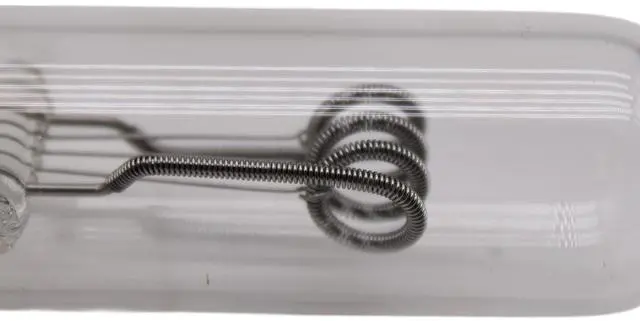

- A new patent pending filament design for the SPH Superior Performance Halogen lamp allows for superior field uniformity and increased lumen performance for multiple brands of PAR fixtures and ellipsoidal spotlights.
- The newly engineered filament geometry works with modern reflector technology to produce up to a 20% increase if fixture lumens over the GLC lamp. The universal G9.5 base will fit any socket that accepts the GLC, FLK, or FEL lamps.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
New SPH 575W Halogen Lamp for the following PAR and
Ellipsoidal Spotlights: Selecon Acclaim Axial, Altman 6" Ellipsoidal 360Q - 4.5 x 6.5, 360Q - 6x12, 360Q - 6x16, 360Q - 6x22, 360Q - 6x9, Selecon Pacific 23-50 Zoomspot, Selecon Pacific 45-75 Zoomspot, Selecon Pacific Fixed Beam 20 Degree, 30 Degree, 40 Degree, 50 Degree, 90 Degree, Selecon Pacific 12-28 Zoomspot, Selecon Pacific 14-35 Zoomspot, Strand Lighting Coolbeam Spotlight SL10, SL19, SL26, SL36, SL5, SL50, Strand Lighting Coolbeam Zoom SL15/32, SL23/50, Wybron Nexera Profile Spot 2570, Wybron Nexera Wash 2560, Wybron BP-2 9500, 9510, Times Square Q435, American DJ FS-1000, Elation Stage Color DMX-512, Elation Opti Profile, Elation Opti-Zoom, Elation Opti Par ETL, Behringer ULTRAPAR UP1000 Spotlight, Altman Shakespeare Ellipsoidal S6-10, S6-12, S6-1535Z, S6-20, S6-30, S6-3055Z, S6-40, S6-5, S6-50, Altman 360Q (Super reflector), Altman Outdoor 600, Altman Star PAR, OSRAM 54516 GLA 575 W/DXS, and more!
Lamp
Data
Product Code
1003585
Part Type
SPH Lamp
Prod. ID / ANSI Code
SPH 115V-575WLL
Description
SPH 115V-575WLL
Description 2
JCD115V-575WBM
Item Type
Halogen
Base
G 9.5
Voltage
115
Wattage
575
Bulb Shape
T6
Bulb Finish
Clear
Color Temp (K)
3050
Filament
CC-6
Front Glass Cover
No
Initial Lumens (lm)
14000
Luminous Flux (lm)
14000
Life (hr)
800
Diameter (mm)
19
Diameter (in)
0.75
MOL (in)
4.09
MOL (mm)
104
Light Center Length (mm)
60.3
Discounts Available
Volume, Educational, Government, Military, Wholesale Accounts
Ellipsoidal Spotlights: Selecon Acclaim Axial, Altman 6" Ellipsoidal 360Q - 4.5 x 6.5, 360Q - 6x12, 360Q - 6x16, 360Q - 6x22, 360Q - 6x9, Selecon Pacific 23-50 Zoomspot, Selecon Pacific 45-75 Zoomspot, Selecon Pacific Fixed Beam 20 Degree, 30 Degree, 40 Degree, 50 Degree, 90 Degree, Selecon Pacific 12-28 Zoomspot, Selecon Pacific 14-35 Zoomspot, Strand Lighting Coolbeam Spotlight SL10, SL19, SL26, SL36, SL5, SL50, Strand Lighting Coolbeam Zoom SL15/32, SL23/50, Wybron Nexera Profile Spot 2570, Wybron Nexera Wash 2560, Wybron BP-2 9500, 9510, Times Square Q435, American DJ FS-1000, Elation Stage Color DMX-512, Elation Opti Profile, Elation Opti-Zoom, Elation Opti Par ETL, Behringer ULTRAPAR UP1000 Spotlight, Altman Shakespeare Ellipsoidal S6-10, S6-12, S6-1535Z, S6-20, S6-30, S6-3055Z, S6-40, S6-5, S6-50, Altman 360Q (Super reflector), Altman Outdoor 600, Altman Star PAR, OSRAM 54516 GLA 575 W/DXS, and more!
Lamp
Specifications
Specifications
Data
Product Code
1003585
Part Type
SPH Lamp
Prod. ID / ANSI Code
SPH 115V-575WLL
Description
SPH 115V-575WLL
Description 2
JCD115V-575WBM
Item Type
Halogen
Base
G 9.5
Voltage
115
Wattage
575
Bulb Shape
T6
Bulb Finish
Clear
Color Temp (K)
3050
Filament
CC-6
Front Glass Cover
No
Initial Lumens (lm)
14000
Luminous Flux (lm)
14000
Life (hr)
800
Diameter (mm)
19
Diameter (in)
0.75
MOL (in)
4.09
MOL (mm)
104
Light Center Length (mm)
60.3
Discounts Available
Volume, Educational, Government, Military, Wholesale Accounts
