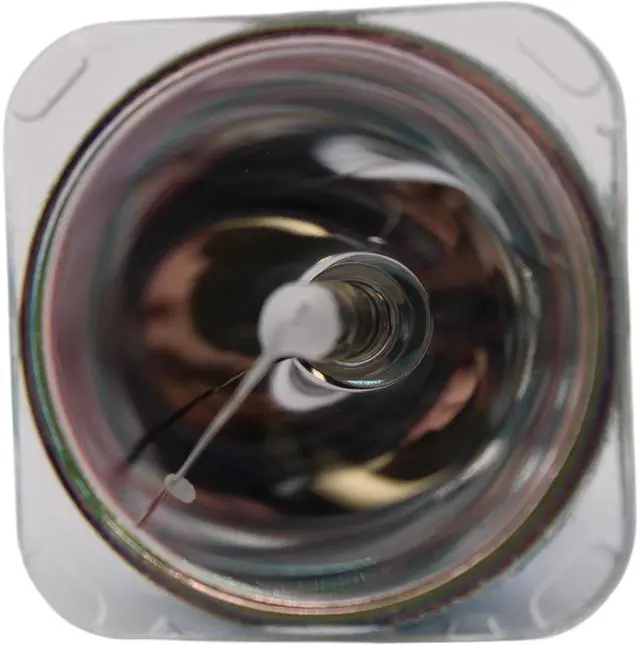

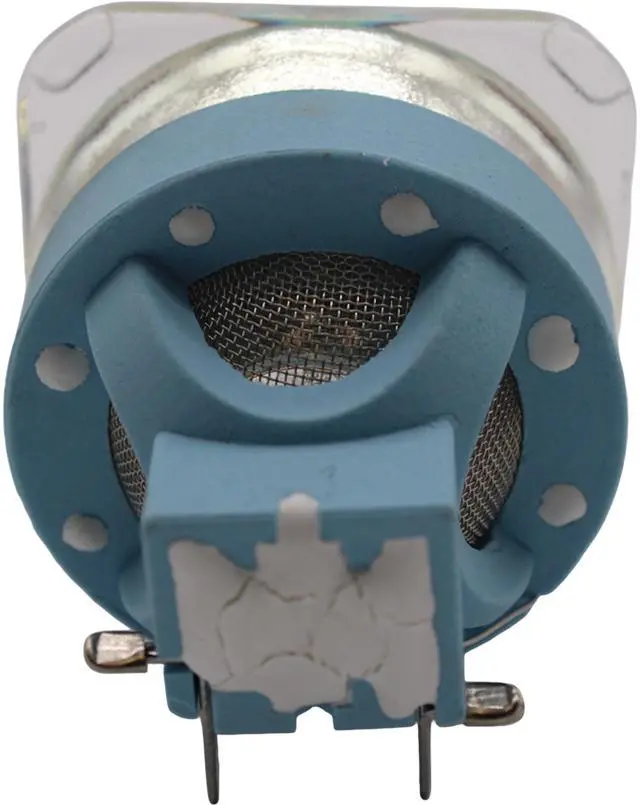

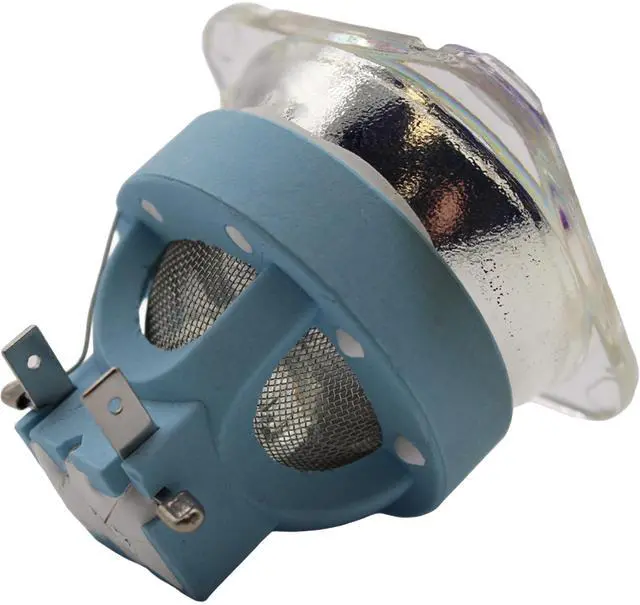

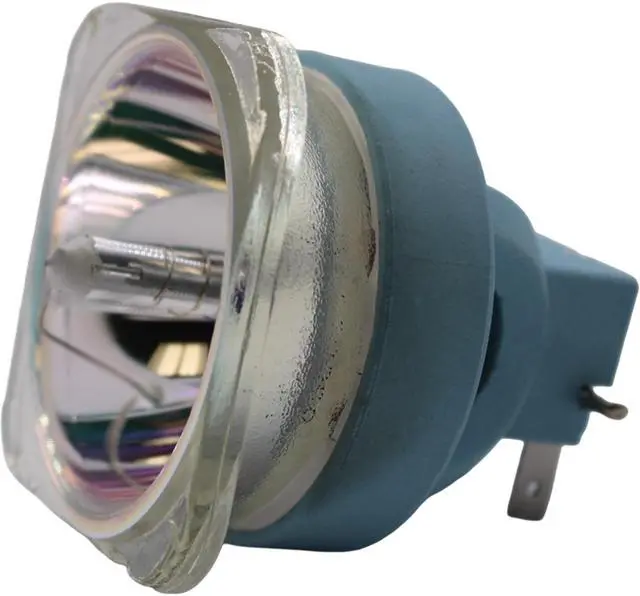

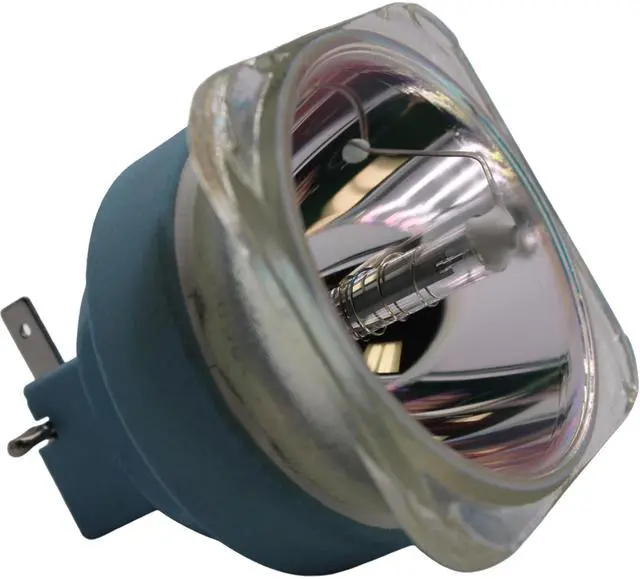

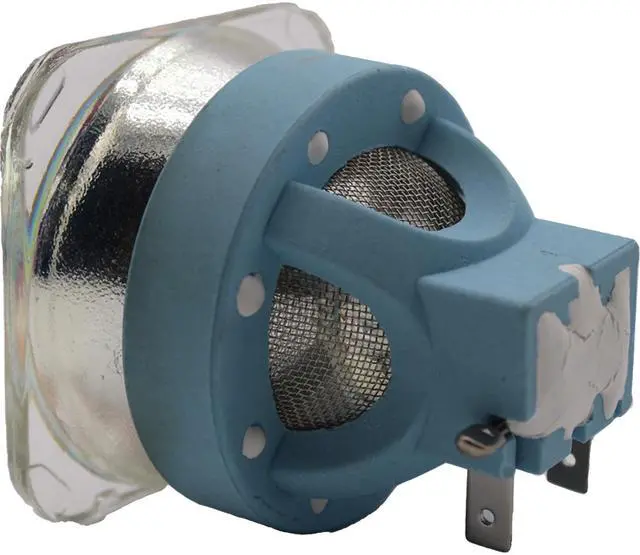

Jaspertronics MSD Platinum 11R Stage Touring Broadway Lamp - 9281-917-05314

The new Jaspertronics replacement for the MSD Platinum 11 R lamps open up new levels of creative freedom in entertainment lighting, with powerful, compact and brilliantly intense light. Their compact, lightweight design provides the freedom to create smaller, lighter luminaires for use at any location on stage. And their short arc, high color temperature and innovative reflector produce a sparkling, high beam intensity for outstanding color reproduction. They also offer long and reliable lifetime, high efficacy and fast replacement times. It all adds up to an intensely exciting creative experience.
Jaspertronics Replacement for MSD Platinum 11 R

Specifications

:




General Information





Cap-Base

- [ -]



Operating Position

UNIVERSAL [ Any or Universal (U) ]



Main Application

Stage/Touring









Life to 50% Failures (Nom)

2000 h



System Description

Reflector-E 20.9






Light Technical





Color Code

2



Luminous Flux (Nom)

12000 lm



Chromaticity Coordinate X (Nom)

0.300



Chromaticity Coordinate Y (Nom)

0.305









Correlated Color Temperature (Nom)

7800 K



Color Rendering Index (Nom)

-






Operating and Electrical





Power (Rated) (Nom)

250 W



Voltage (Max)

80 V









Voltage (Min)

55 V






Controls and Dimming





Dimmable

Yes











Mechanical and Housing





Cap-Base Information

-











Luminaire Design Requirements





Pinch Temperature (Max)

350 °C











Product Data





Full product code

871869653976700



Order product name

MSD Platinum 11 R



EAN/UPC - Product

8718696539767



Order code

53976700



Numerator - Quantity Per Pack

1









Numerator - Packs per outer box

8



Material Nr. (12NC)

928191705314



Net Weight (Piece)

85.000 g










This bulb is used in many custom applications as well as the following:
Martin Professional RUSH MH-7 Hybrid, PR Lighting PR-2206, PR Lighting XR 250 Beam II, PR XR 250 Beam II




MSD Platinum 11 R Jaspertronics 9281-917-05314
Cross Ref:
MSD Platinum 11 R Jaspertronics 30362-8
LMSDPLAT11R-P
YODN MSD 260R9
9 R 9R

MSD Platinum - The power to light your creativity
The Jaspertronics MSD Platinum 11 R is a compact and powerful lamp which is perfect for small and lightweight fixtures. It features a short arc, high colour temperature and an innovative reflector which produces a sparkling, high beam intensity for outstanding colour reproduction.

Product Specification
Code: 928191705314
Wattage: 250W
Voltage: 55V-80V
Flux: 12, 000LM
Colour temp: 7, 800K
Average Life: 2, 000 hours
Burning position: Any
Dimmable: Yes

TECHNICAL DETAILS
Product Type: LAMP / BULB
Technology: HID / HIGH INTENSITY DISCHARGE
ELECTRICAL PROPERTIES
Watts: 250W Volts: 80V
PHYSICAL CHARACTERISTICS
Shape: E 20.9 REFLECTOR
Ends: SINGLE ENDED
Overall Length (mm/"): 53MM
Diameter (mm/"): 51.5MM
LIGHT OUTPUT MEASUREMENT
Initial Lumens: 12000L COLOR CHARACTERISTICS CC
Temp / Kelvin: 7800K
LIFE: 2000H
PART NUMBERS & ORDERING INFORMATION
Part #: PHMSDPLAT11RBT
Description: PH MSD PLATINUM 11 R 1CT/8BT
Ordering Code: 0095599Mfg: Jaspertronics
Mfg Prod Description: MSD PLATINUM 11 R 1CT/8
Mfg Ordering Code: 92819170531
Trade Name: MSD PLATINUM (TOURING / STAGE)

Quantity Per Case: 1

Martin Professional RUSH MH-7 Hybrid
Martin Professional RUSH MH 11 Beam
PR Lighting PR-2206
PR Lighting XR 250 Beam II
PR XR 250 Beam II
BMH-250
BMH-350
HC-M265
LS-M210
MME250 / MME250-220
PCS-UMX250
