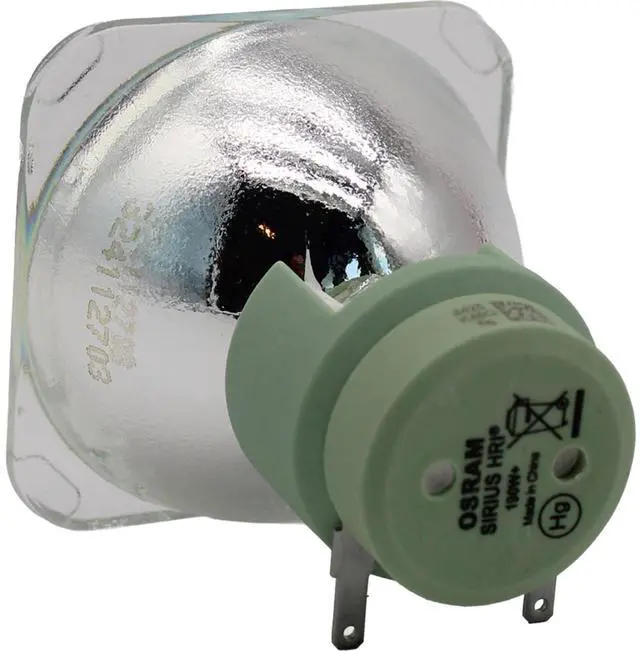

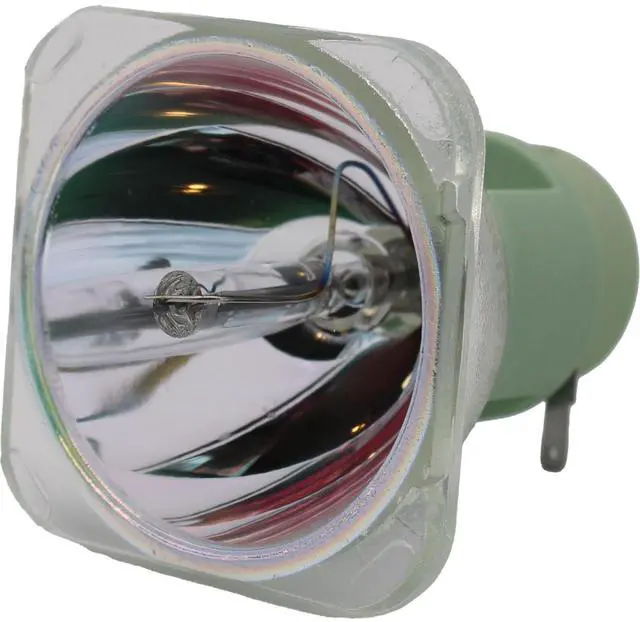

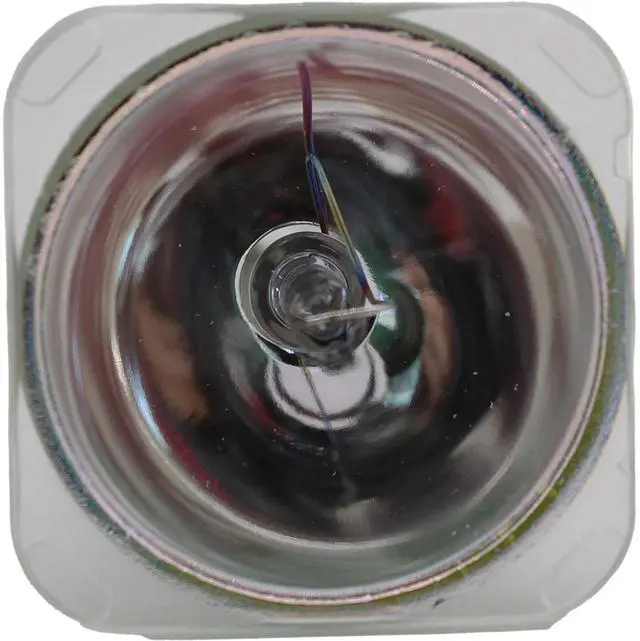

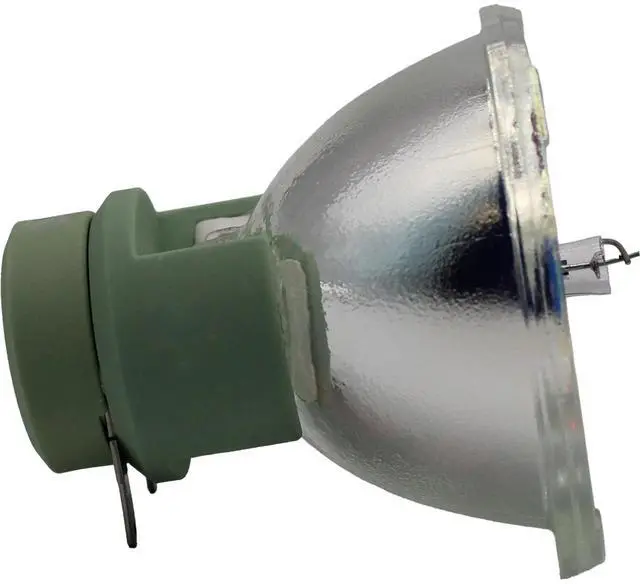

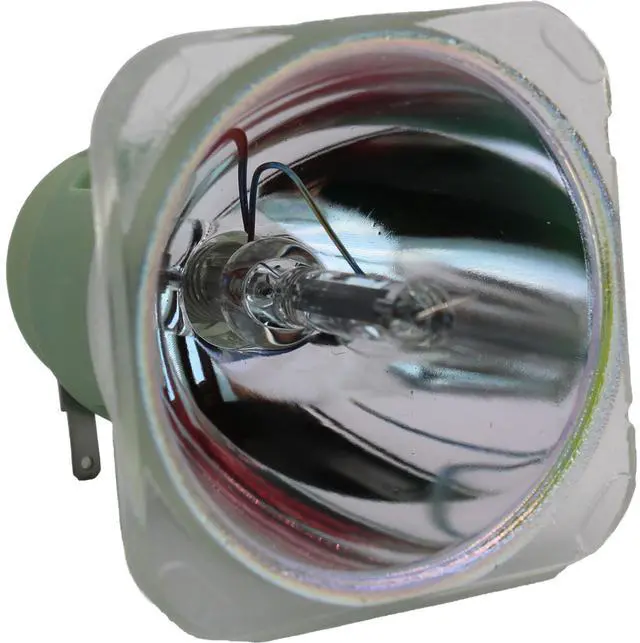

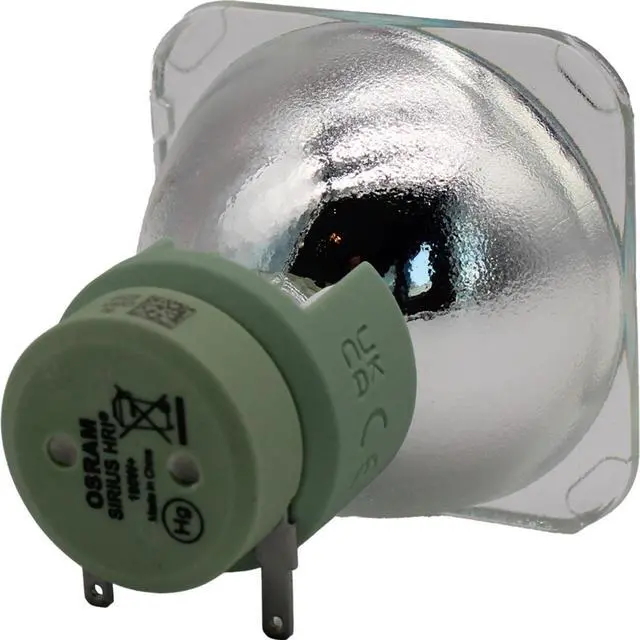

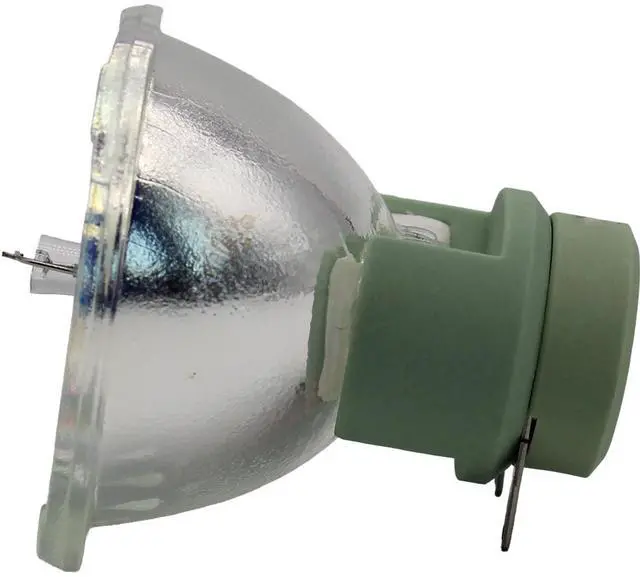

Jaspertronics 5R 190W+ Moving Head Light Discharge Lamp - Replaces the Sirius HRI - AA5474504HM

Product family benefits - Lightweight and compact E 20.6 reflector lamps - Perfectly suited for small and lightweight moving heads - Optimized burner design allows any burning position - High luminance through very short arc and high pressure - Bright light for brilliant light effects - Long lifetime - Easy lamp replacement - Stable light output over the entire lifetime - Areas of application - Concert lighting - Club and disco - Stage and theater - Studio, TV and film - Architecture & Architainment - Safety advice - Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose.

Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
- For Use In: Acme XP-5R BEAM, Claypaky Sharpy as well as other applications. - Technical Data - Electrical data - Nominal wattage - 190.00 W - Nominal current - 2.7 A - Nominal voltage - 70.0 V - Ignition voltage - 2.5 kVp - Photometrical data - Nominal luminous flux - 8100 lm - Color temperature - 8200 K - Color rendering index Ra - 73 - Maximum color temperature - 8200 K - Light technical data - Focal length - 34.5 mm - Aperture window, maximum - 5x 3.8 mm - Dimensions & weight - Diameter - 51.0 mm - Length - 54.2 mm - Arc length - 0.8 mm - Lifespan - Lifespan - 3000 h - Capabilities - Burning position - Any - Cooling - Forced - Certificates & standards - EEI Energy Label - A -
Cross Reference: - OSRAM 54402 SIRIUS HRI 5R 190W+ - Philips MSD Platinum 5R 249888 - Philips MSD Platinum 5R 243527 - The OSRAM 54402 SIRIUS HRI 5R 190W+ bulbs is used in many applications including the following - ACME XP-5R BEAM - Clay Paky Sharpy - American DJ Vizi Beam 5R - American DJ Vizi Spot 5R - DTS Jack - Ehrgeiz Cobalt Plus 5R - Ehrgeiz Cobalt Plus Beam 5R - Ehrgeiz Cobalt Plus Spot 5R - Elation Professional Platinum Beam 5R - Elation Professional Platinum Spot 5R - Elation Professional Platinum Spot 5R Extreme - Futurelight PLB-5R - Futurelight PLS-5R - Jolly X-Beam 5R - Jolly X-Spot 5R - PR Lighting XR 200 Beam - Terbly JT160-E - Terbly JT160B - Terbly PT 189B - Terbly PT160 Pro - Terbly PT160B - Terbly PT160B Pro - Triton Blue 5R-Beam - Triton Blue 5R-Beam-Pro - Triton Blue 5R-Spot -
