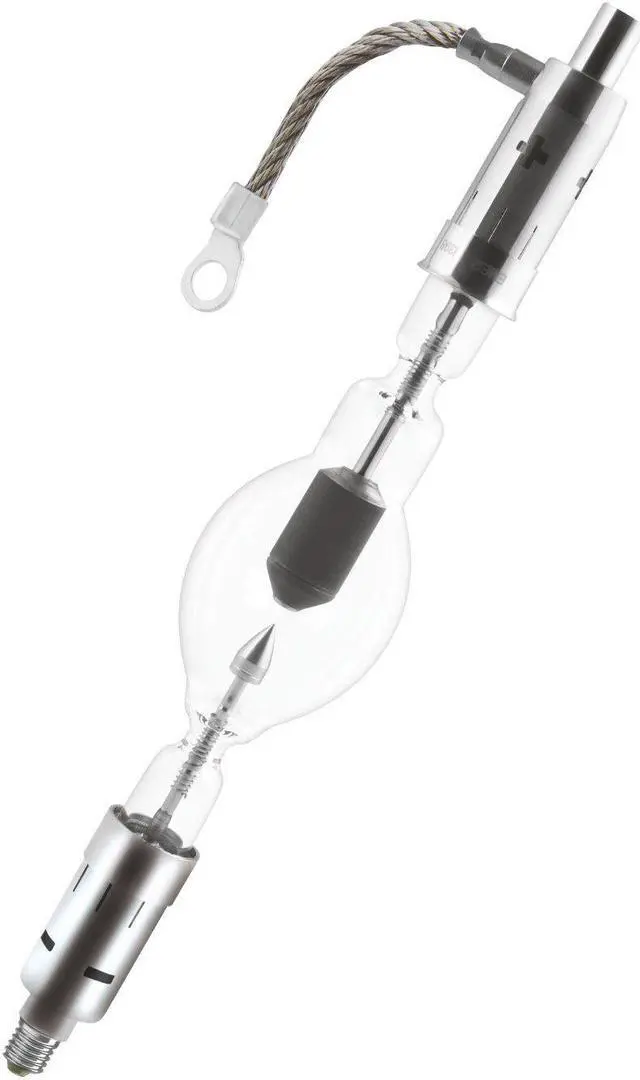

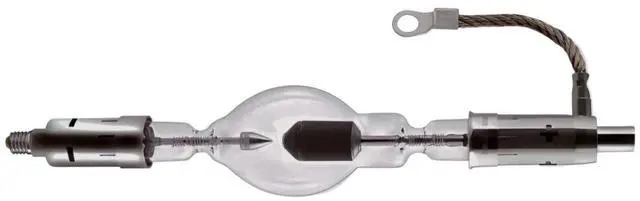

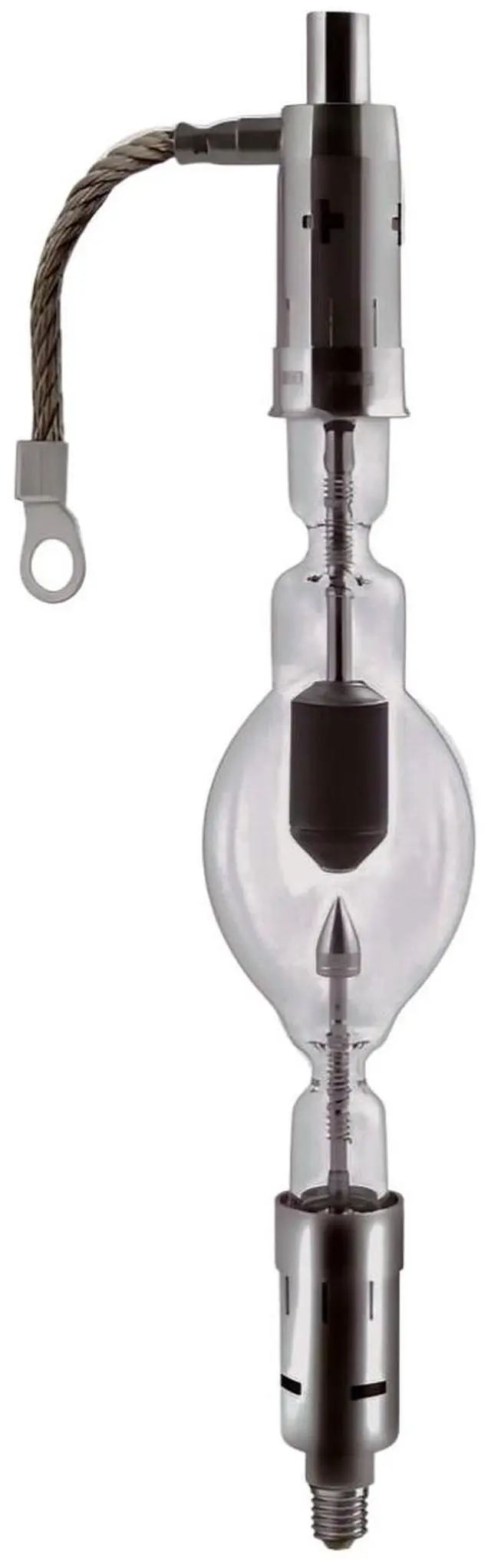

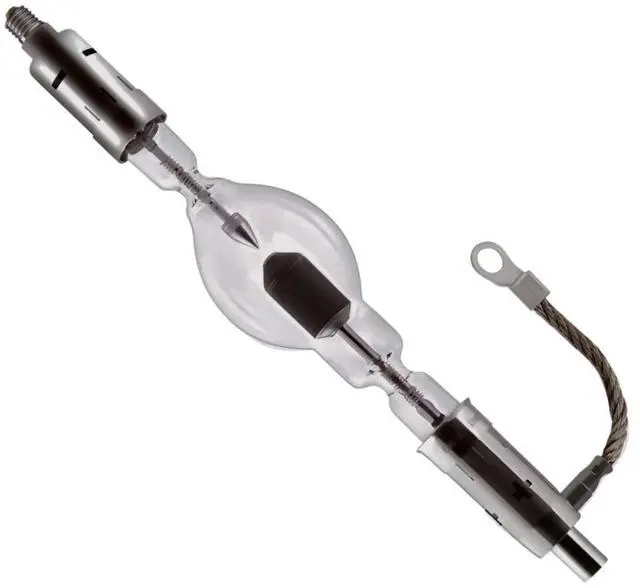

XBO 2200W/DHP OFR 67484 Xenon Short-Arc Cinema Lamp powered by Osram for Barco Projectors, 2200W DC 24V 85A, 92000 lm, LCL 123mm, 2400h

The XBO 2200W/DHP OFR (Product No. 67484) is a professional XENON short-arc cinema lamp powered by Osram and designed for select Barco digital cinema projectors. Its engineered for stable DC operation, high brightness, and the geometry required for correct optical alignment in compatible lamp housesideal for cinema booths and screening rooms that need consistent light output and predictable service intervals.
This lamp is rated at 2200 W nominal wattage, 24 V nominal voltage, and 85 A nominal current, with a 6895 A current control range for controlled arc stability. It produces 92, 000 lm nominal luminous flux and features a 123.0 mm light center length (LCL) to support proper positioning and focus.
Physical and fitment details include a 3.7 mm electrode gap (cold), SFaX27-14x80 anode base, SFc27-16/55 cathode base, 52.0 mm diameter, and 345.0 mm overall length ( 295.0 mm length with base excl. pins/connection). The lamp includes a 130 mm input-side cable/wire length and connector present, and is designed for forced cooling. Burning position is s15/p15 (for vertical burning position: anode (+) on top). Maximum permitted ambient temperature at the pinch point is 230 °C.
Lifetime ratings are 2400 hours nominal, with 1500 warranty hours and a service warranty lifetime of 2000 hr.

Compatible projector list (as provided): Barco DP2K-8S, DP2K-8Sx, DP2K-10S, DP2K-12C, DP2K-15C, DP2K-19B, DP2K-20C, DP2K-23B, DP4K-19B, DP4K-23B, plus Barco 10S/12C/15C/20C (with cathode adapter R858100) and Barco 19B/23B (with cathode adapter R865555).
