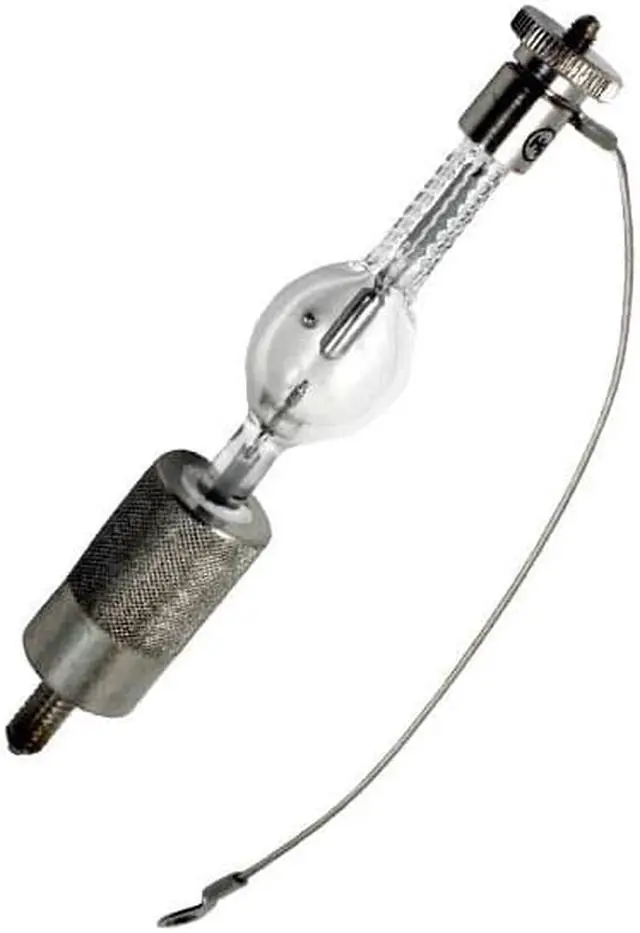

Ushio EmArc Enhanced SMH-850/SB1 Metal Arc Discharge Lamp - Long-Lasting Industrial-Grade Lighting Solution for High-Demand Environments and Precision Applications - SMH-850/SB1

Ushio EmArc Enhanced SMH-850/SB1 Metal Arc Discharge Lamp - 5001634
Features Benefits
Up to 60 lumens per watt efficacy two times that of Xenon sourcesHighly durable, rugged elliptical and parabolic reflector designs very high light path efficiencies for small diameter fiber optic bundle applications
Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
Far better color control over life than conventional metal halide lamps
Hot reignition
Power is 850 watts versatility/ power tunability
Custom reflector designs available
Small arc gap sizes down to 3.5 mm highly effective optical collection capability
Unique hybrid gas discharge technology 1, 000 hours of life; no internal pressure when cold
Operation on lower cost DC power supplies reducing OEM system design costs
6000K correlated color temperature Xenon-like light for crisp, white imaging

Applications

Medical fiber optics for endoscopy or headlight illumination
Biotechnology / Micro-ArrayIndustrial UV Curing
Machine VisionCosmetic DentistryProjection / EntertainmentMicroscopyBoroscopyPhototherapy


Ushio SMH-850/SB1

Specifications

:

Ordering Code: SMH-850/SB1
Lamp Series: EmArc
Voltage: 90
Wattage: 850
Amperage: 9.4
Burn Position: V
Color Temp: 6000K
Arc Gap: 3.5 mm
Luminous Flux: 70000 lm
Life: 1000 hr
Diameter: 21 mm
MOL: 135.5 mm
Light Center Length: 104.5 mm

Works with the following units and more

Strong International Radiance
