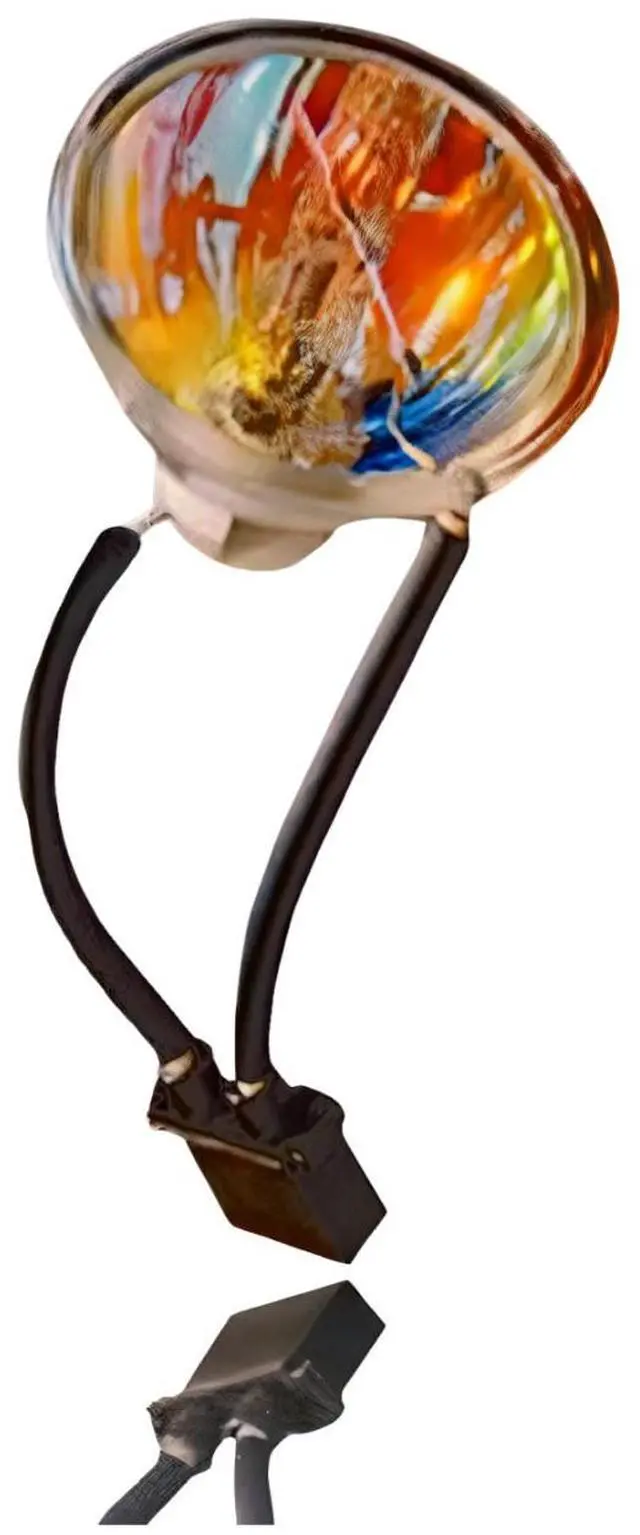

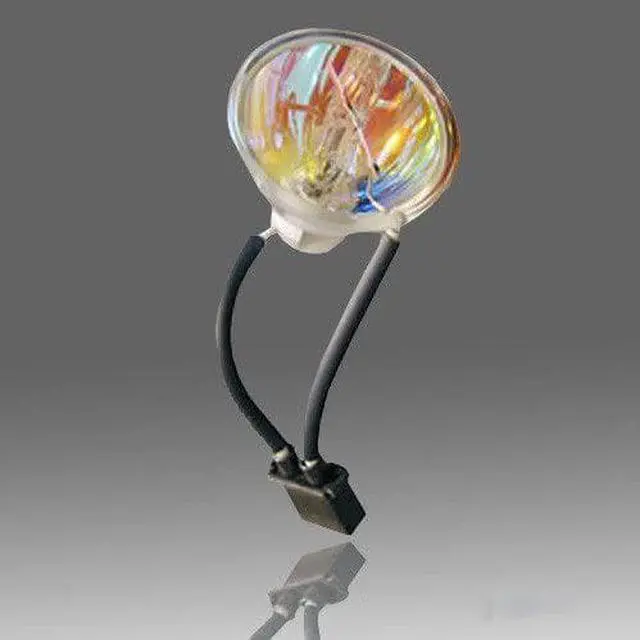

Ushio EmArc Enhanced SMR-202/D1 Metal Arc Discharge Lamp - Durable and Reliable High-Intensity Lighting for Industrial, Commercial, and Professional Use - SMR-202/D1

Ushio EmArc Enhanced SMR-202/D1 Metal Arc Discharge Lamp - 5001466
Features Benefits
Up to 60 lumens per watt efficacy two times that of Xenon sourcesHighly durable, rugged elliptical and parabolic reflector designs very high light path efficiencies for small diameter fiber optic bundle applications
Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
Far better color control over life than conventional metal halide lamps
Hot reignition
Power ranges from 160-200watts versatility/ power tunability
Custom reflector designs available
Small arc gap sizes down to 1.6 mm highly effective optical collection capability
Unique hybrid gas discharge technology 2, 500 hours of life; no internal pressure when cold
Operation on lower cost DC power supplies reducing OEM system design costs
6500K correlated color temperature Xenon-like light for crisp, white imaging

Applications

Medical fiber optics for endoscopy or headlight illumination
Biotechnology / Micro-ArrayIndustrial UV Curing
Machine VisionCosmetic DentistryProjection / EntertainmentMicroscopyBoroscopyPhototherapy


Ushio SMR-202D1

Specifications

:

Ordering Code: SMR-202/D1
Lamp Series: EmArc
Voltage: 56
Wattage: 160-200
Amperage: 3.50
Burn Position: V
Color Temp: 6900K
Arc Gap: 2.0 mm
Luminous Flux: 5900 lm
Life: 4000 hr
Reflecter: 70 mm

Works with the following units and more

Phoebus Manufacturing Imarc
