JBL Studio 590 Dual 8" Floorstanding Loudspeaker with High-Frequency Single

JBL Studio 590 Dual 8" Floorstanding Loudspeaker with High-Frequency
The JBL® Studio 590 floorstanding loudspeaker brings professional-quality sound to the home experience. The Studio 590 uses the technology that JBL engineers developed for pro-audio loudspeakers to deliver accurate, powerful sound to your living room. The Studio 590 floorstanding speaker is a perfect complement to other members of the Studio 5 Series, including the Studio 530 bookshelf and the Studio 520C center-channel loudspeakers. The Studio 590 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the same technology used in JBL concert sound systems – to deliver concise, sustained high frequencies. A pair of 8-inch (200-millimeter) PolyPlas™ cones with Symmetrical Field Geometry™ (SFG) magnet assemblies handle low frequencies.

25 – 250 watts suggested amplifier power range
JBL engineers designed the Studio 590 floorstanding loudspeaker to deliver enhanced, room-filling sound from a compatible AVR (audio/video receiver) or 25- to 250-watt power amplifier, whether you are using the Studio 590 as a stand-alone unit or as part of a surround-sound system.

Dual 8" (200mm) ribbed PolyPlas woofer cones
Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 590 floorstanding loudspeaker delivers accurate low-frequency sounds from a pair of 8-inch (200-millimeter) ribbed PolyPlas woofers. The ribs improve strength while reducing distortion. The result is rich, powerful, articulate bass.

Symmetrical Field Geometry (SFG) magnet assembly
Thanks to a heavy-duty Symmetrical Field Geometry (SFG) magnet assembly, the Studio 590 floorstanding loudspeaker’s pair of low-frequency woofers delivers highly focused bass. The result is pristine, articulate sound.

Warranty
5 Year Electronic

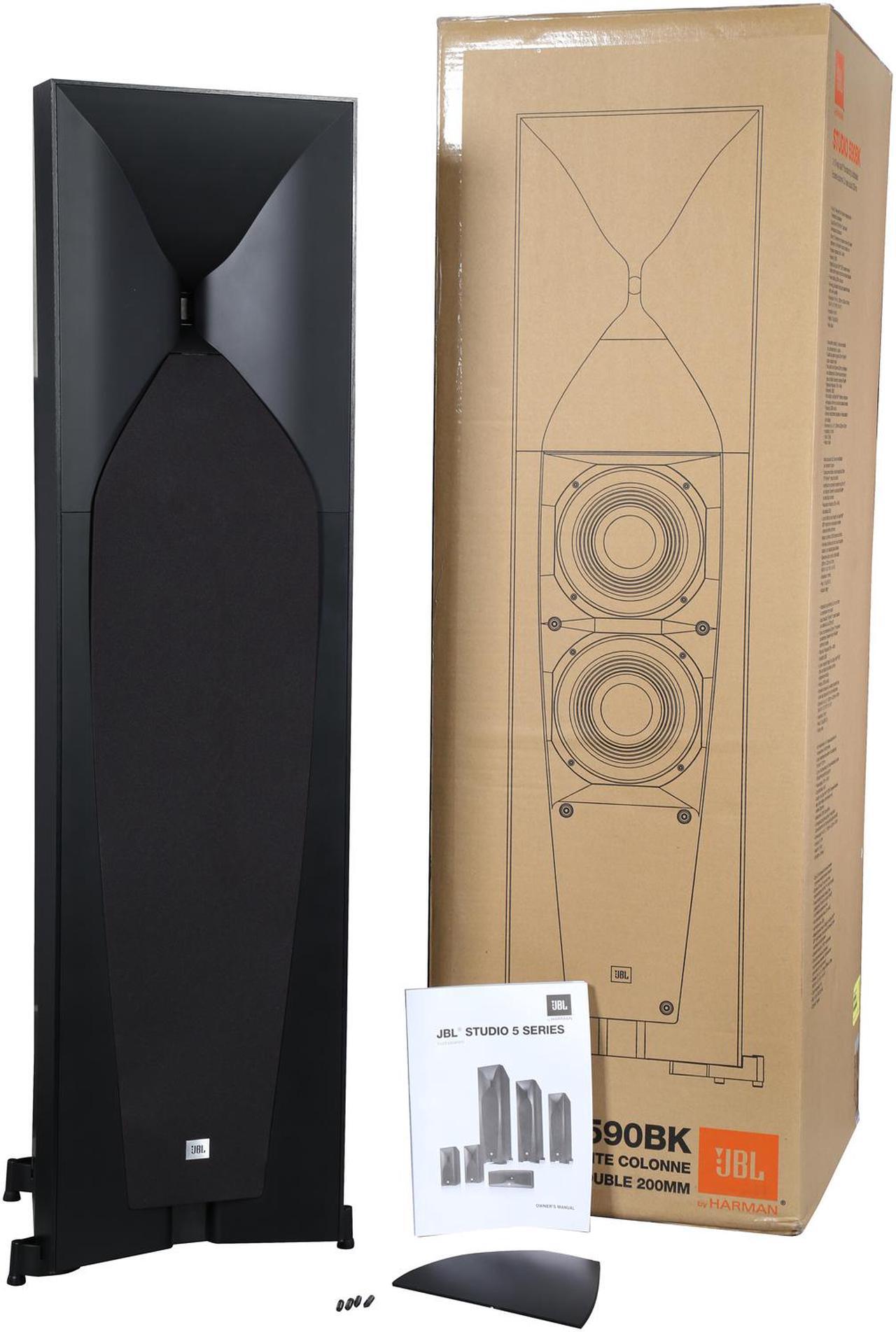

What's in the Box?
1 Studio 590 floorstanding loudspeaker
1 horn cover
2 port tube inserts
4 metal spikes
Owner’s manual

Technical Specs
25 – 250 watts suggested amplifier power range
Dual 8" (200mm) ribbed PolyPlas™ woofer cones
Symmetrical Field Geometry™ (SFG) magnet assembly
" (25mm) high-frequency compression driver
Glass-filled ABS Bi-Radial® high-frequency horn
Low-loss, 2-1/2-way crossover network
Bi-wire capability
Sturdy 3/4" (19mm) MDF enclosure
Nominal Impedance|6 ohms
Crossover Frequencies|1.5kHz
Sensitivity|(2.83V@1m) 92dB
Frequency Response|35Hz-40kHz
Connector Type|Dual gold-plated binding posts (bi-wire capable)

Dimensions
Width (in)|12-11/16
Depth (in)|16-1/4
Height (in)|49-3/4
Weight (lb)|69.5
