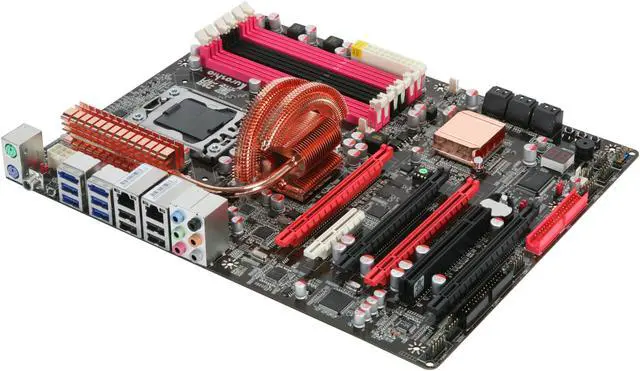

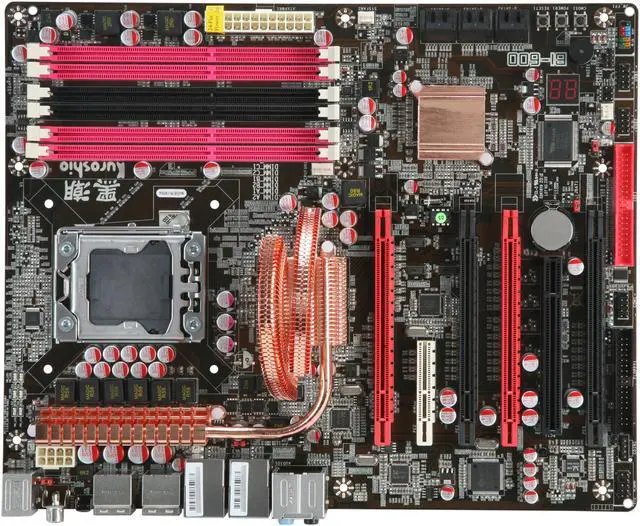

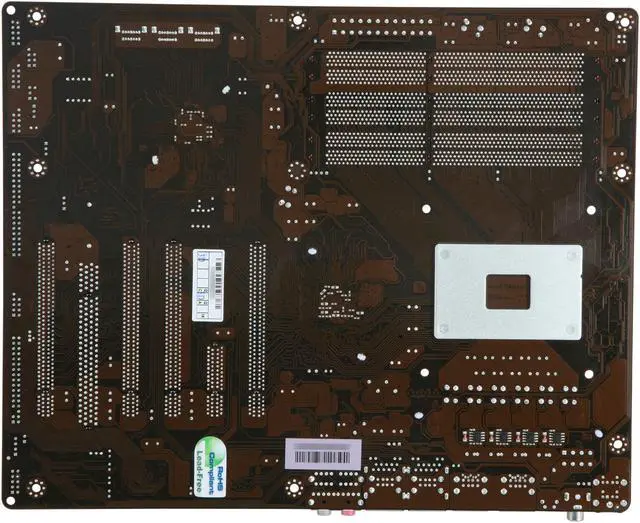

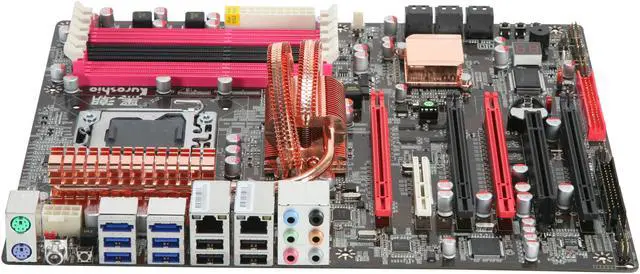

JetWay JBI-600-LF LGA 1366 Intel X58 ATX Intel Motherboard

(12) Write a Review
  • Intel X58
  • Core i7 (LGA1366)
  • DDR3 1600/1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (12)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JBI-600-LF

Model
Brand JetWay
Model JBI-600-LF
Supported CPU
CPU Socket Type LGA 1366
CPU Type Core i7 (LGA1366)
FSB QPI 6.4GT/S
Chipsets
Chipset Intel X58
South Bridge Intel ICH10R
Memory
Number of Memory Slots 6x240pin
Memory Standard DDR3 1600/1333
Maximum Memory Supported 24GB
Channel Supported Dual / Triple Channel
Expansion Slots
PCI Express 2.0 x16 4 x PCI-Express x16 slot by 8-lane slots
PCI Express x4 1 x PCI Express x4
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek RT8111CVC
Second LAN Chipset Realtek RT8111CVC
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 8 x USB 2.0
eSATA 2 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Features
Features "IMAGE IT!" System Backup Software and "ProMagicPLUS!" System Recovery System
Debug port & DIY Cool & DIY Switch x4
Additional Information
First Listed on Newegg June 03, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
