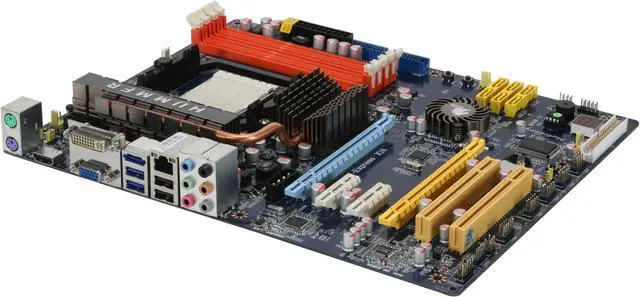

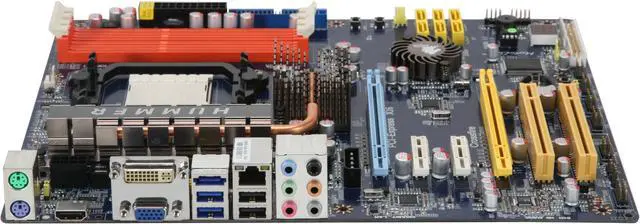

JetWay JHA08-LF AM3 AMD 790GX HDMI ATX AMD Motherboard
- AMD 790GX
- AMD AM3 Series processors
- DDR3 1333/1066
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JHA08-LF
| Brand | JetWay |
|---|---|
| Model | JHA08-LF |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | AMD AM3 Series processors |
| Chipset | AMD 790GX |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (by 8-LANE) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD 3300 |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111CVC |
|---|
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| Audio Ports | 6 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 305mm x 245mm |
| Power Pin | 24 Pin |
| Date First Available | March 30, 2009 |
|---|
