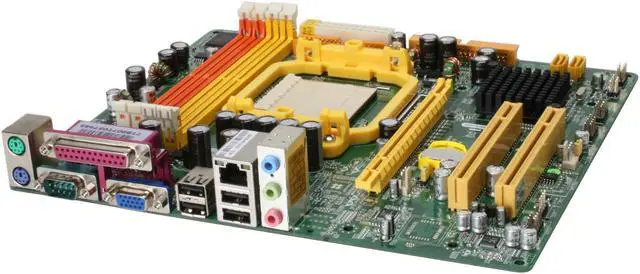

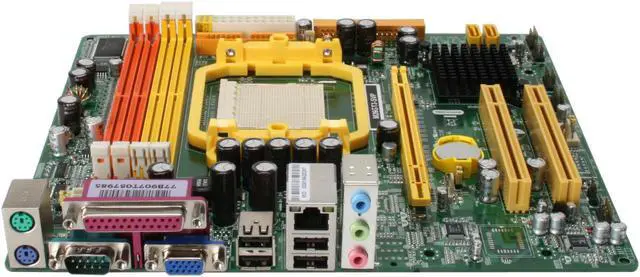

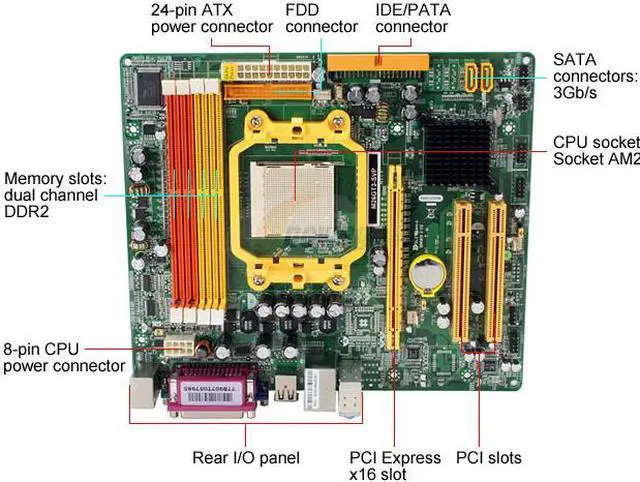

JetWay JM26GT3-SVP AM2 NVIDIA NF6100-405 Micro ATX AMD Motherboard
- NVIDIA NF6100-405
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (62)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JM26GT3-SVP
| Brand | JetWay |
|---|---|
| Model | JM26GT3-SVP |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | NVIDIA NF6100-405 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Slots | 2 x PCI Slots |
|---|---|
| Other Slots | 1 x PCI Express x8 |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC861 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Support Socket AM2 64-bit Dual core AMD Athlon 64 X2 processor Support HTT 1000MHz Integrated 525MHz GeForce 6100 Graphics Dual Channel DDR2 800 Memory DIMMs Support 2 Serial ATA2 Devices with RAID 0, 1 Support Hardware NV Firewall Ethernet LAN Supported Azalia 8-Channel Audio CODEC CPU Vcore 7-Shift |
|---|
| First Listed on Newegg | July 26, 2007 |
|---|
