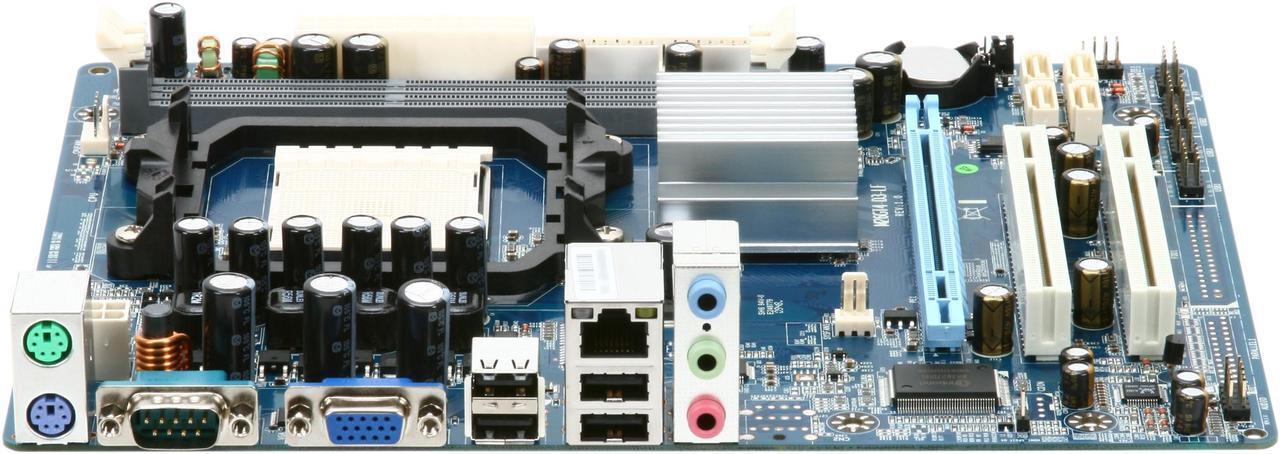

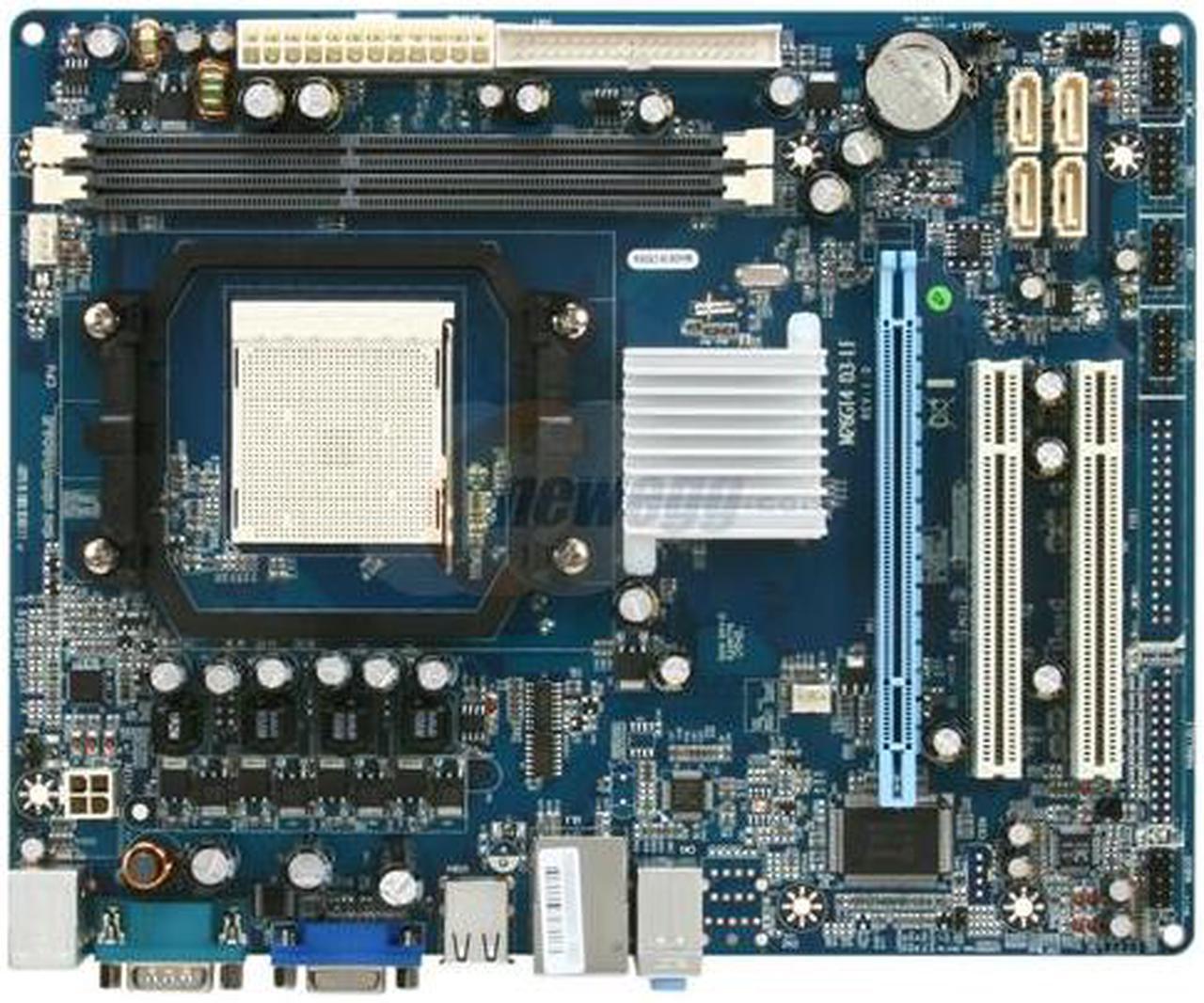

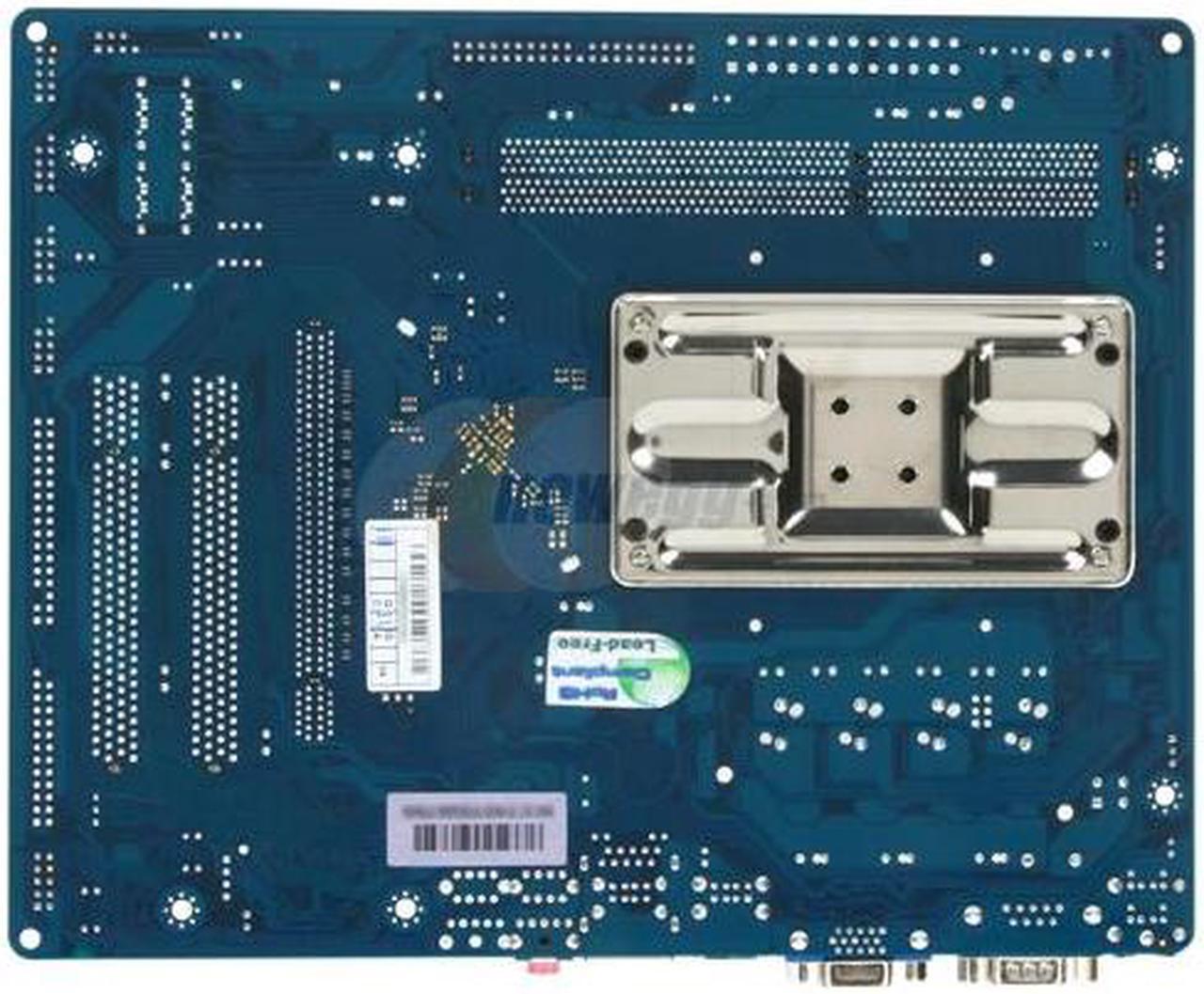

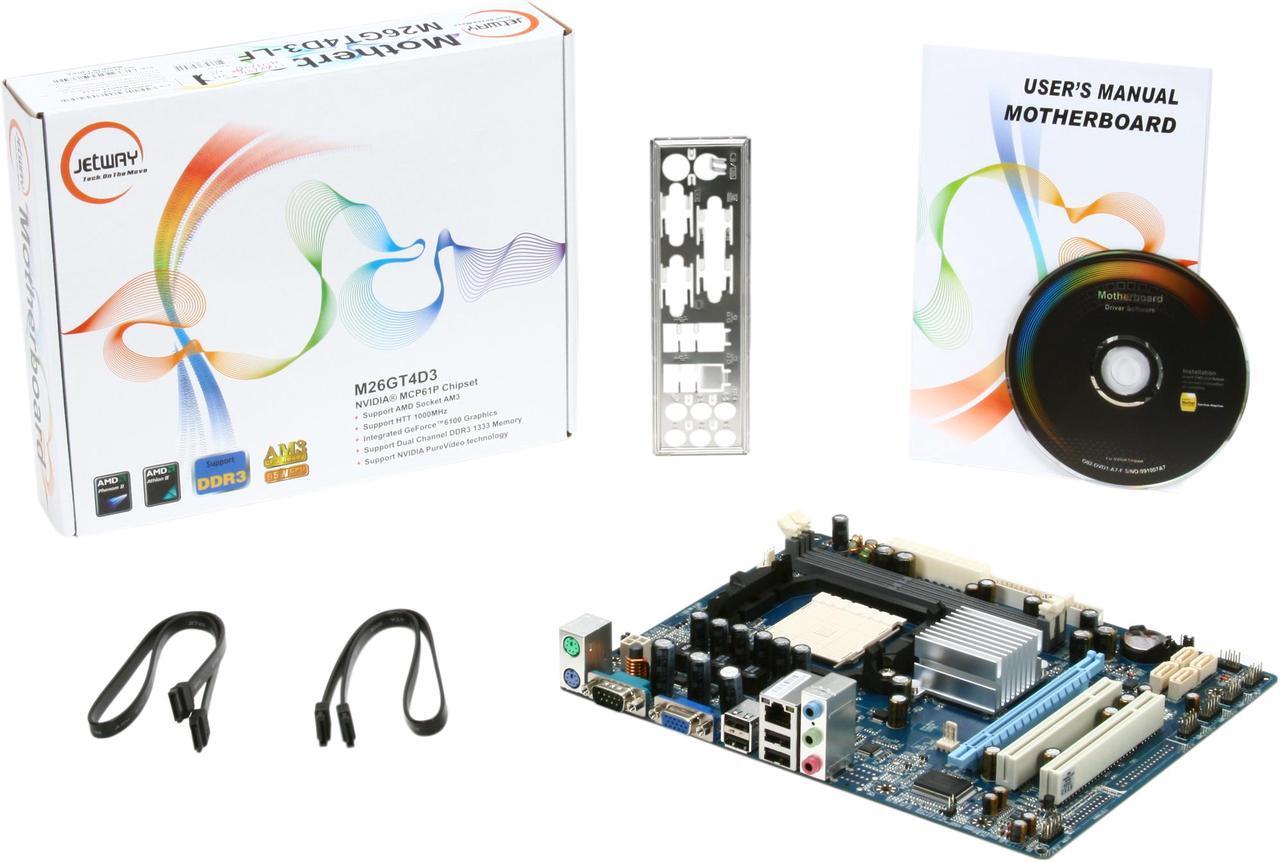

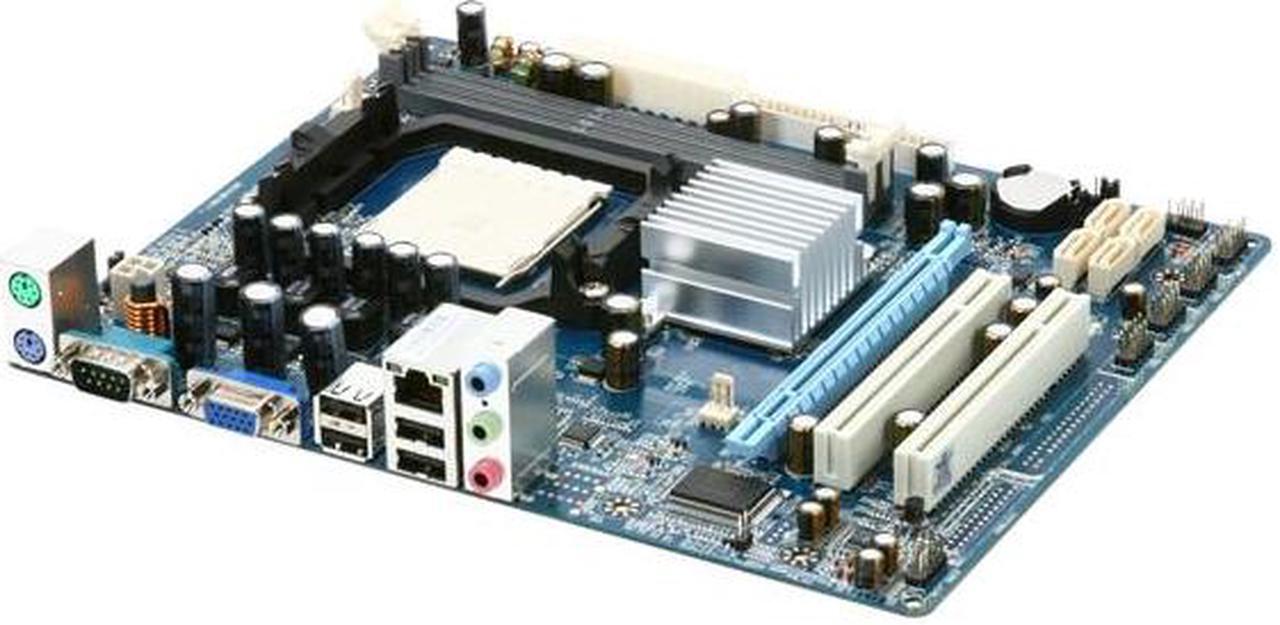

JetWay JM26GT4-D3-LF AM3 NVIDIA NF6100-430 (MCP61P) Single Chipset Micro ATX AMD Motherboard

(9) Write a Review
  • NVIDIA NF6100-430 (MCP61P) Single Chipset
  • Phenom II / Athlon II / Sempron 100 Series Support up to 95W CPU
  • DDR3 1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (9)

Learn more about the JETWAY JM26GT4-D3-LF

Model
Brand JetWay
Model JM26GT4-D3-LF
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Support up to 95W CPU
FSB 1000 MHz
Chipsets
Chipset NVIDIA NF6100-430 (MCP61P) Single Chipset
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
SATA RAID 0/1/0+1/5
Onboard Video
Onboard Video Chipset NVIDIA GeForce 6100
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8103EL
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 3 x High Speed USB2.0 Connectors for 6 USB 2.0 Ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.6"
Power Pin 24 Pin
Additional Information
Date First Available February 08, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
