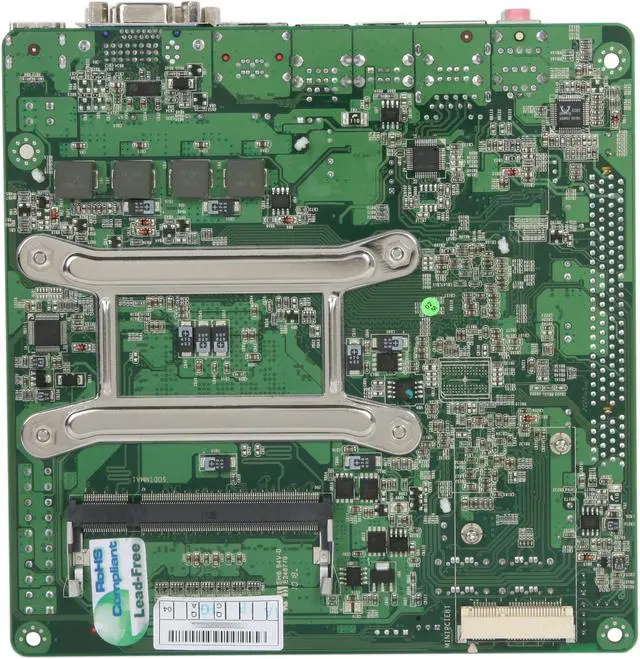

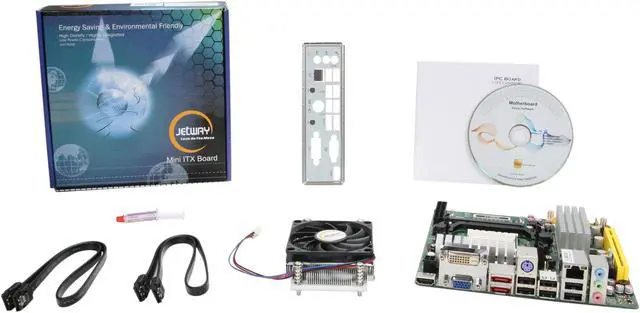

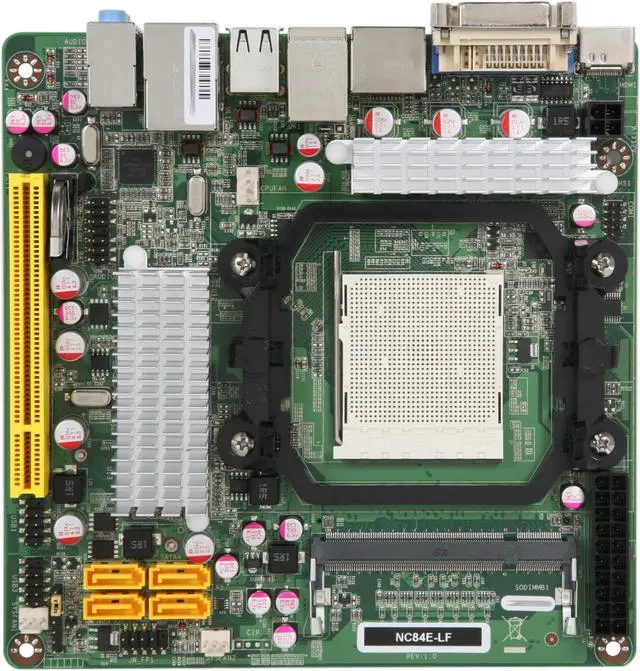

JetWay JNC84E-LF AM3/AM2+/AM2 AMD 785G HDMI Mini ITX AMD Motherboard

(8) Write a Review
  • AMD 785G
  • Phenom II / Phenom / Athlon II / Athlon64 /Sempron
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (8)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JNC84E-LF

Model
Brand JetWay
Model JNC84E-LF
Supported CPU
CPU Socket Type AM3/AM2+/AM2
CPU Type Phenom II / Phenom / Athlon II / Athlon64 /Sempron
Chipsets
Chipset AMD 785G
South Bridge AMD SB750
Memory
Number of Memory Slots 2x200pin SO-DIMM
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Slots 1 x PCI Slot
Storage Devices
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4200
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports

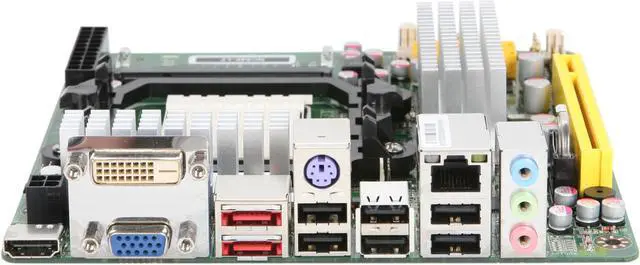

Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
eSATA 2 x eSATA 3Gb/s
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0 ports
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 20 Pin
Features
Features Support HT3.0 Technology

Advanced 3+1 PWM Design, 20-pin ATX Power

OC-CON High-Polymer Solid Capacitors

ECO-design for EuP (Energy Using Product)

Support CPU Smart FAN, Ready for Windows 7
Additional Information
First Listed on Newegg June 21, 2010
