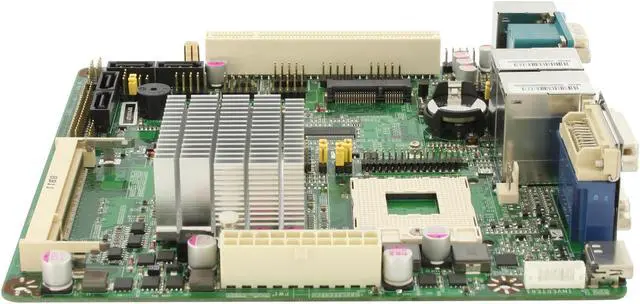

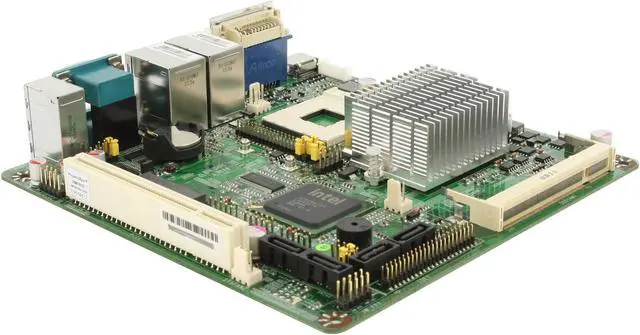

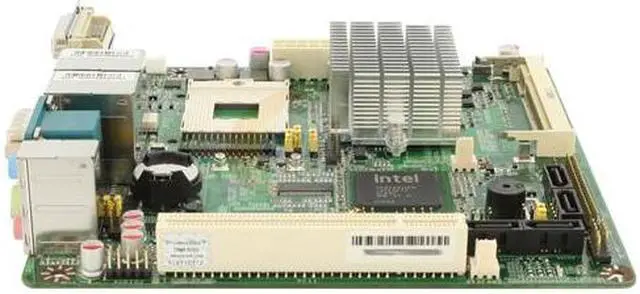

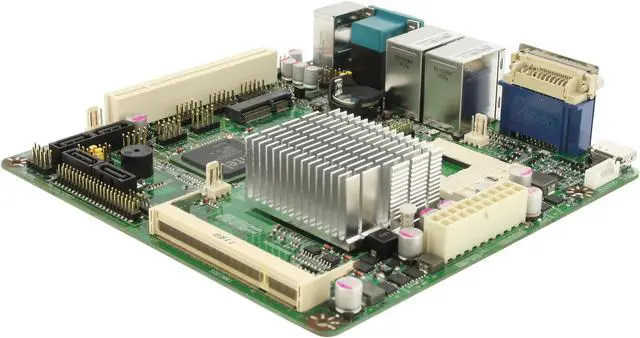

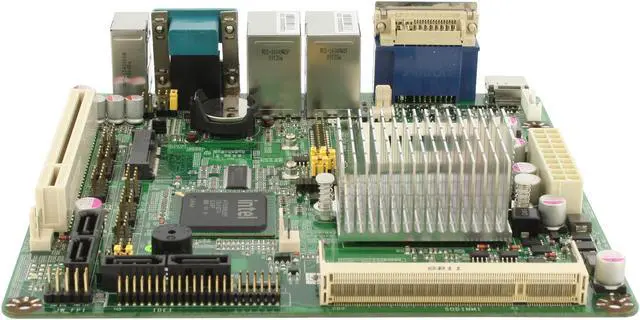

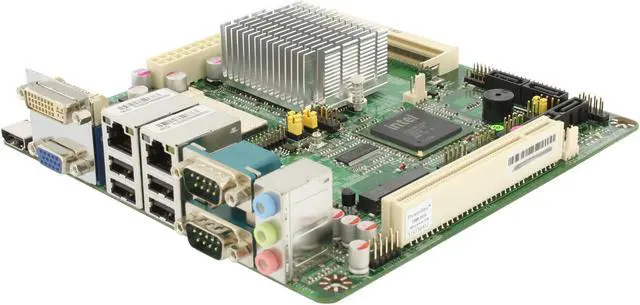

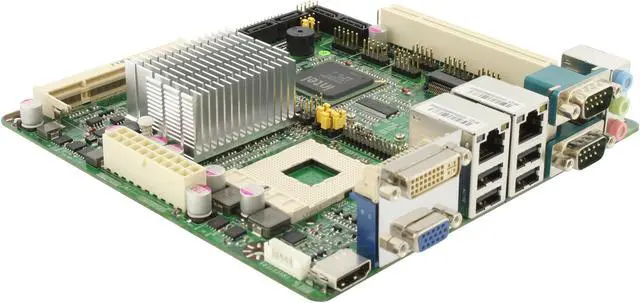

JetWay JNF93R-LF Socket P Intel GM45 HDMI Mini ITX Intel Motherboard

(9) Write a Review
  • Intel GM45
  • Intel Core 2 Duo/Quad 45nm Socket P (Penry) Mobile processor
  • DDR2 800/667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (9)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JNF93R-LF

Model
Brand JetWay
Model JNF93R-LF
Supported CPU
CPU Socket Type Socket P
CPU Type Intel Core 2 Duo/Quad 45nm Socket P (Penry) Mobile processor
Chipsets
Chipset Intel GM45
South Bridge Intel ICH9-M E
Onboard Video
Onboard Video Chipset Intel GMA 4500M HD

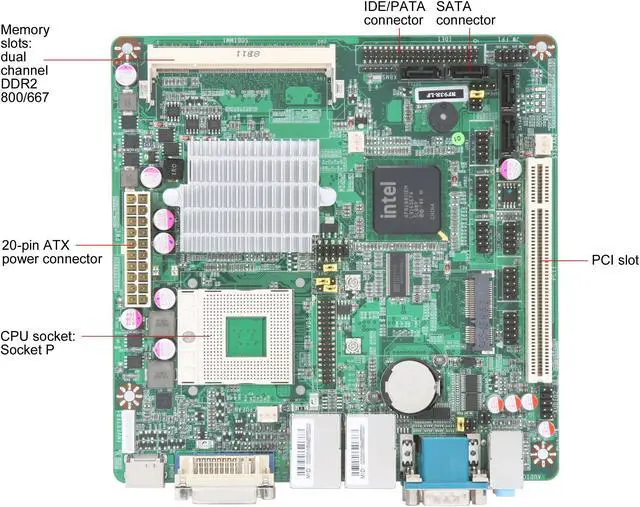

Memory
Number of Memory Slots 2x200pin SO-DIMM
Memory Standard DDR2 800/667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Slots 1 x PCI Slot
Mini Card Slots 1 x Mini PCIe
Storage Devices
SATA RAID 0/1
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Second LAN Chipset Realtek 8111C
Max LAN Speed 2 x 1Gbps

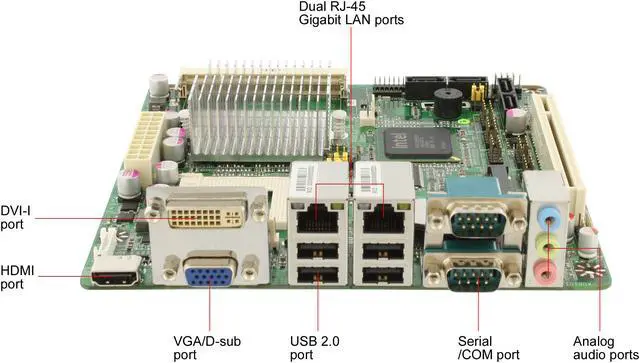

Rear Panel Ports
Back I/O Ports 1 x HDMI / 4 x USB 2.0/1.1
COM 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0/1.1 headers for 6 USB 2.0 ports
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 20 Pin
Features
Features Onboard 18-bit dual channel LVDS connector
Support Watchdog Technology
Additional Information
First Listed on Newegg August 25, 2009
