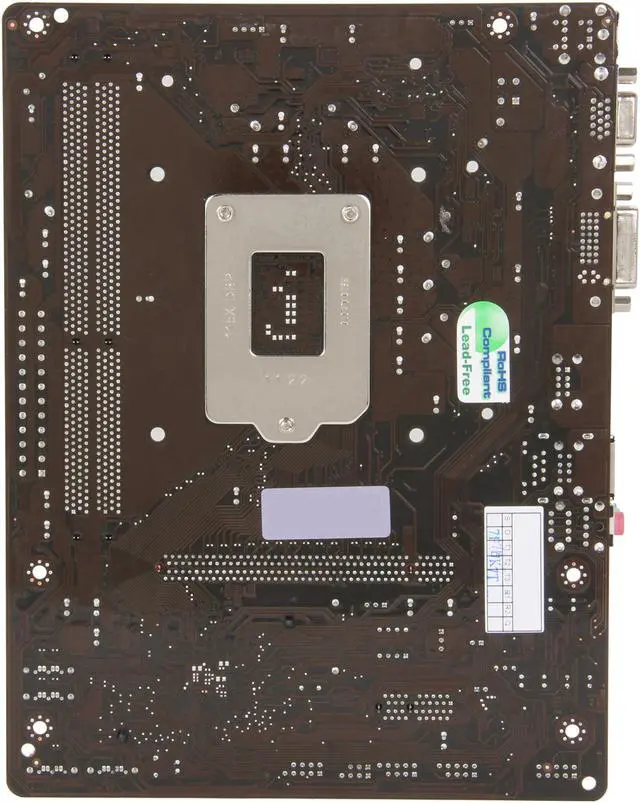

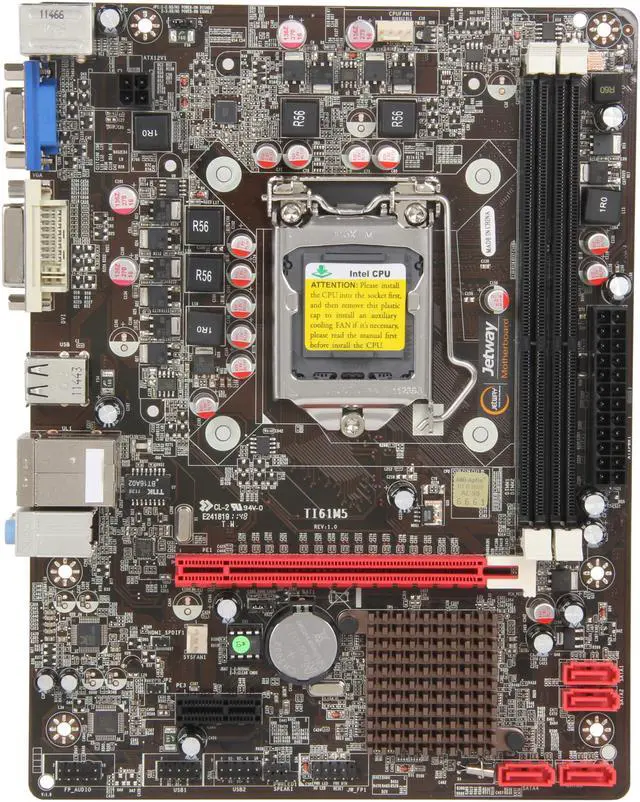

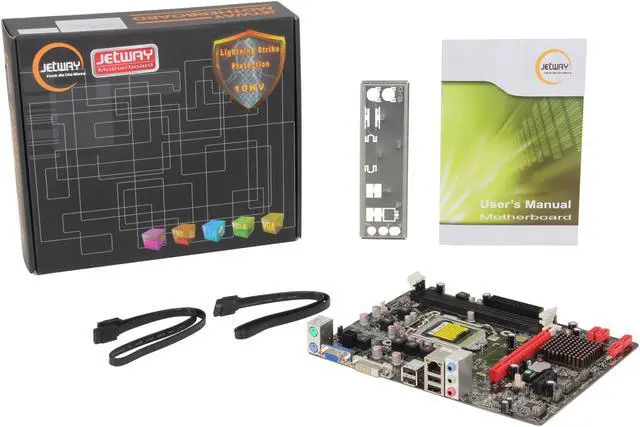

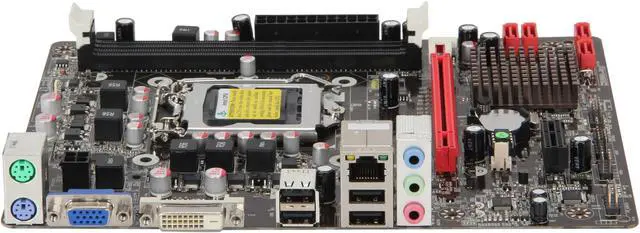

JetWay JTI61M5 LGA 1155 Intel H61 Micro ATX Intel Motherboard
- Intel H61
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
- DDR3 1333/1066
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JTI61M5
| Brand | JetWay |
|---|---|
| Model | JTI61M5 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H61 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| Audio Channels | 6 Channels |
|---|
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | CPU / Chassis Fan connectors 1 x 4-pin ATX 12V Power connector 1 x 24-pin ATX Power connector 1 x HDMI_SPDIF header 1 x Front panel audio header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.06" x 6.89" |
| Power Pin | 24 Pin |
| Features | INTELH61 Express Chipset Supports 2nd generation Intel Core processor family Support INTEL LGA1155 series Processors Support PCI-Express 2.0 Support Dual Channel DDR3 1333/1066 Integrated HD Audio CODEC with 6.0 CH Support PCI Express Ethernet LAN 10/100 Mb/s Onboard 4 x SATA 2 connectors 3+1+1 Phase CPU Power Support Support Thunder Protection Function Micro-ATX Form Factor(175mm X 230mm) |
|---|
| Date First Available | January 19, 2012 |
|---|
