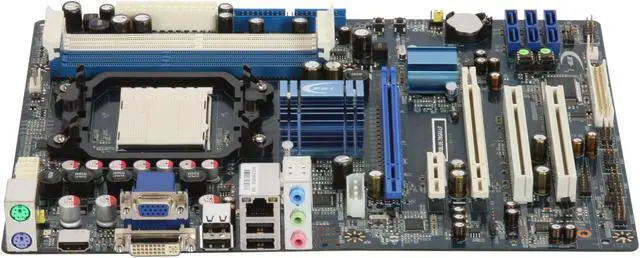

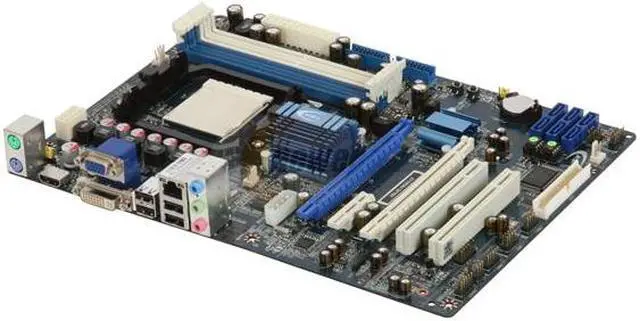

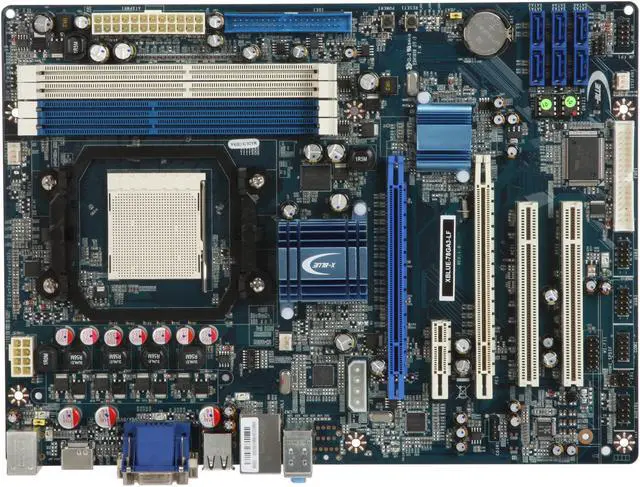

JetWay JXBLUE-78GA3-LF AM3/AM2+/AM2 AMD 780G HDMI ATX AMD Motherboard

(6) Write a Review
  • AMD 780G
  • Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
  • DDR3 1333 / DDR2 1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JXBLUE-78GA3-LF

Model
Brand JetWay
Model JXBLUE-78GA3-LF
Supported CPU
CPU Socket Type AM3/AM2+/AM2
CPU Type Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
Chipsets
Chipset AMD 780G
South Bridge AMD SB700
Memory
Number of Memory Slots 2x240-pin DDR2 + 2x240-pin DDR3
Memory Standard DDR3 1333 / DDR2 1066
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express x16 slot by 16-lane
1 x PCI Express x16 slot by 4-lane
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x Ultra DMA 133 / 100 / 66 IDE connector for 2 IDE devices
SATA RAID 0/1/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 3200
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek RTL8111CVC
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Features
Features Advanced Power Design that supports the latest Socket-AM3 CPU
Onboard DDR2 64MB sideport memory
Support G.P.I Technology
Support WI-FI Technology
Additional Information
First Listed on Newegg June 09, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
