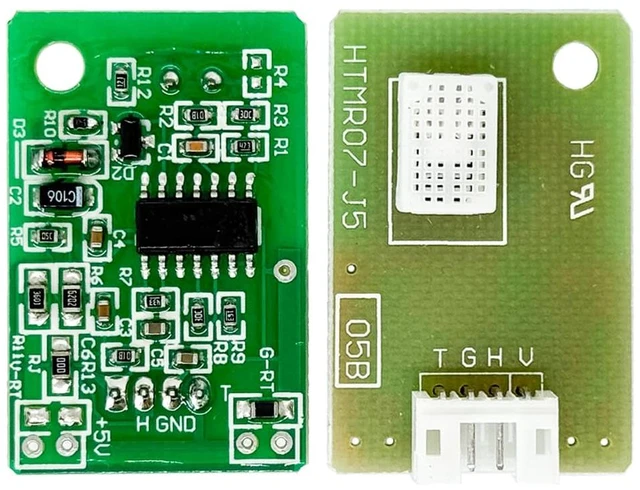

HTMR07-J5 Humidity Sensor Module Temperature Sensor | Compatible with HOKURIKU/HDK HSU-07 Series Sensors, Replacement Part, Fit for Dehumidifier

Advanced Sensing Technology: The HTMR07-J5 is a temperature and humidity module that uses resistive polymer humidity sensor and high-precision thermistors as sensing elements. The sensor outputs in analog voltage mode, featuring simple communication and stable performance

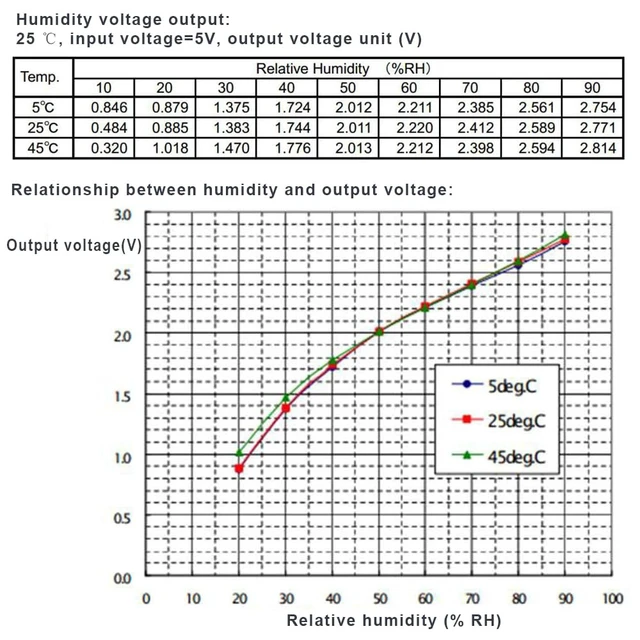

Operating Principle: The curve of the resistance value of the humidity resistance element changing with the relative humidity is converted into a linear voltage output through the conversion circuit
Technical Specifications: Power supply: 5VDC+/-5%; Power consumption current: 5mA MAX (2mA.AVG); Temperature sensing element: NTC thermistor, 10K+/-1%, B value=3435K+/-1%; Measuring range: Humidity: 20%-95%RH, temperature: 0-50 ; Measurement accuracy: Humidity: +/-3%RH (25 , 60%RH, input voltage=5V), Temperature: +/-1 ; Humidity output signal: input voltage=5V; Product size: 1.34"x0.87"x 0.26"; Terminal: 2.54mm 4Pin; Fix hole: M3
Wide Range of Applications: This temperature and humidity module is applicable to industries such as warehousing, tobacco, and pharmaceuticals; Temperature and humidity meters, humidification equipment, dehumidification equipment, high-end air conditioners and other products
Compatibility Information: This replacement humidity temperature sensor module part can compatible with HOKURIKU/HDK HSU-07 series sensor. Please make sure that the model and specifications match your dehumidifier before placing an order

Specification:

Humidity sensor: polymer humidity resistance

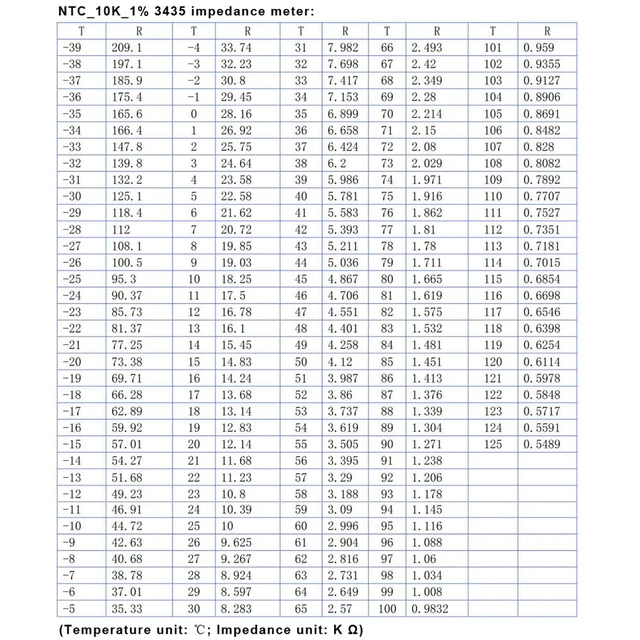

Temperature sensing element: NTC thermistor, 10K+/-1%, B value=3435K+/-1%
Power supply: 5V DC+/-5%
Power consumption current: 5mA MAX (2mA.AVG)
Measuring range: Humidity: 20%-95%RH, temperature: 0-50 ?
Measurement accuracy: Humidity: +/-3%RH (25 ?, 60%RH, input voltage=5V) Temperature: +/-1 ?
Humidity output signal: input voltage=5V

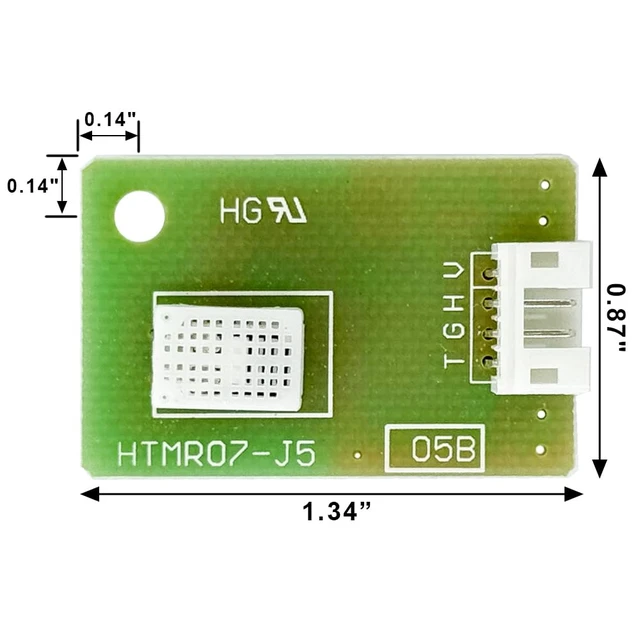

Product size: 1.34"x0.87"x 0.26"
Terminal: 2.54mm 4Pin
Fix hole: M3

Package included:

	JFQWLE Battery Compartment Contact Piece Kit Replace for FLUKE 1503 1507 1508...	JFQWLE Battery Compartment Contact Piece Replacement for Fluke 187 189 725 72...

Customer Reviews	—	—
Price	—	—
Application	JFQWLE Battery Compartment Contact Piece Kit Replace for FLUKE 1503 1507 1508 1577 1587CFC Multimeter Battery Spring Contact Plate Replacement Parts/Batteries Holder Fixing Clip	JFQWLE Battery Compartment Contact Piece Replacement for Fluke 187 189 725 726 87/89 4 Generation Multimeter Battery Spring Contact Plate/Batteries Holder Fixing Clip

Specification:

Humidity sensor: polymer humidity resistance
Temperature sensing element: NTC thermistor, 10K+/-1%, B value=3435K+/-1%
Power supply: 5V DC+/-5%
Power consumption current: 5mA MAX (2mA.AVG)
Measuring range: Humidity: 20%-95%RH, temperature: 0-50 ?
Measurement accuracy: Humidity: +/-3%RH (25 ?, 60%RH, input voltage=5V) Temperature: +/-1 ?
Humidity output signal: input voltage=5V
Product size: 1.34"x0.87"x 0.26"
Terminal: 2.54mm 4Pin
Fix hole: M3

Package included:

	JFQWLE Battery Compartment Contact Piece Kit Replace for FLUKE 1503 1507 1508...	JFQWLE Battery Compartment Contact Piece Replacement for Fluke 187 189 725 72...

Customer Reviews	—	—
Price	—	—
Application	JFQWLE Battery Compartment Contact Piece Kit Replace for FLUKE 1503 1507 1508 1577 1587CFC Multimeter Battery Spring Contact Plate Replacement Parts/Batteries Holder Fixing Clip	JFQWLE Battery Compartment Contact Piece Replacement for Fluke 187 189 725 726 87/89 4 Generation Multimeter Battery Spring Contact Plate/Batteries Holder Fixing Clip

Output Configuration	Analog
Resistance	20% - 95% RH
Tolerance	Humidity: +/-3%RH, Temperature: +/-1 ?
Transducer Function	JFQWLE
Supply Voltage Max	5 volts
Application	41111900
Approvals/Standards	not_capable_emitting_rf_energy
