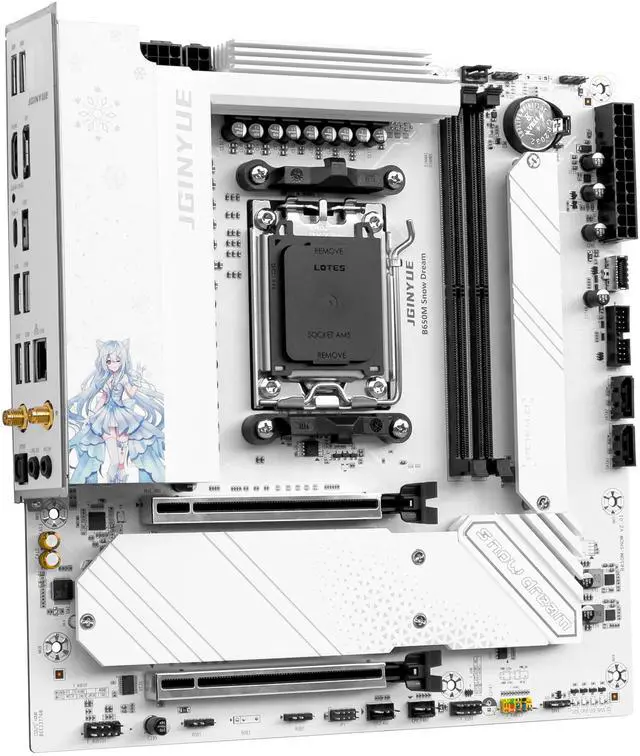

JGINYUE B650M Snow Dream AM5 Motherboard Micro-ATX Supports AMD Ryzen 9000/8000/7000 Series Processors 2x DDR5 Memory 96G Boost 9000+MHz/OC, 1 x PCIe 4.0 x16, 3 x M.2 Gen4, 2.5G LAN
- Supports AMD AM5 Ryzen 7000/8000/9000 series processors
- 2xDDR5 capacity expandable up to 96G dual channel 4800~7000+(O.C) MHz
- 2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
- 1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
- 4xARGB 5V3 pin (MCU independent control chip)
- 1xType-E slot, expandable with 1 5Gbps Type-C interface
- 1xType-C slot 1x2.5G network interface diagnostic light
- 1xWiFi interface supports PCIE protocol module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

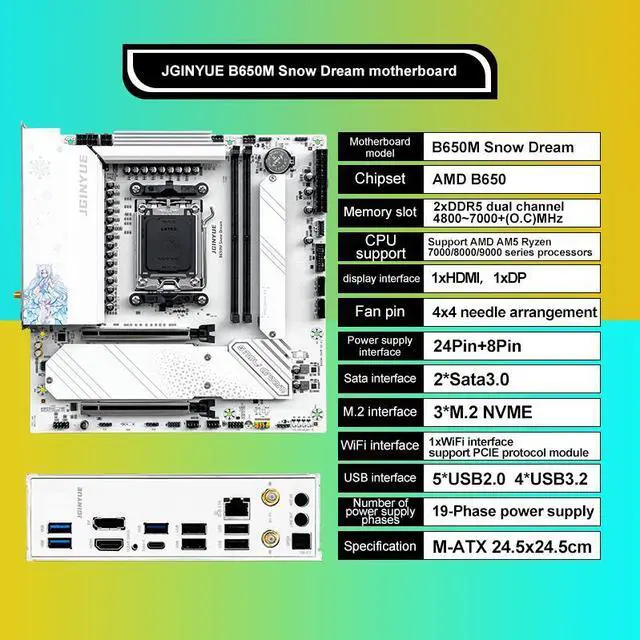

Motherboard model: B650M Snow Dream
CPU socket: Supports AMD AM5 Ryzen 7000/8000/9000 series processors
Chipset: AMD B650 chipset
Memory slot: 2xDDR5 dual channel
Memory capacity: 96G
Memory frequency: 4800~7000+(O.C)MHz
Storage interface:2xSATA3.0,3xM. 2 slots/supports PCIe 4.0x4
PCIe slot: :1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
USB interface: 4xUSB 2.0,3xUSB 3.2,1 x USB 2.0 pin bank expandable 2 USB 2.0, 1 x USB 3.2 pin bank expandable 2 USB 3.2
ARGB needle arrangement: 4 x ARGB 5V3 pin (MCU independent control chip)
Display interface:1xHDMI 1xDP, Type-C interface,1xType-E slot, expandable with 1 5Gbps Type-C interface 1xType-C slot
Fan pin: 4 x 4 needle arrangement
Number of power supply phases: 19 phase power supply
WiFi interface: 1xWiFi interface supports PCIE protocol module
Network: RTL8125BG 2.5G Ethernet chip
Audio chip: Realtek ALC897

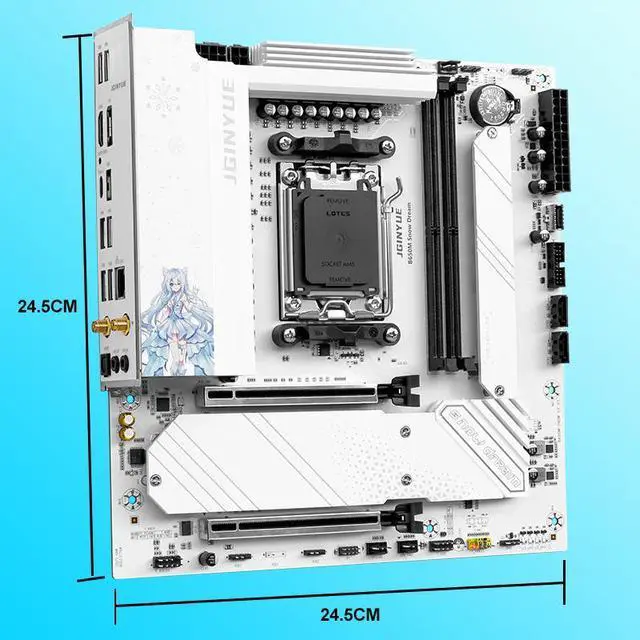

Specification: 24.5x24.5cm M-ATX
Other interfaces:1xCMOS button diagnostic light
