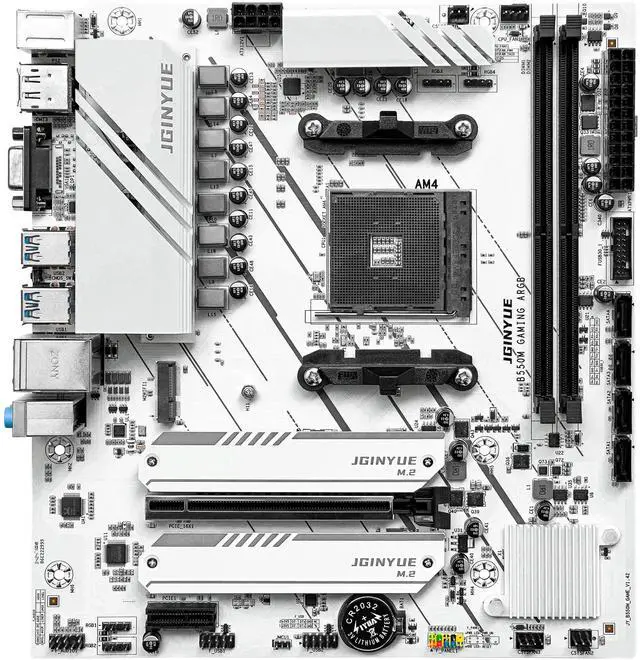

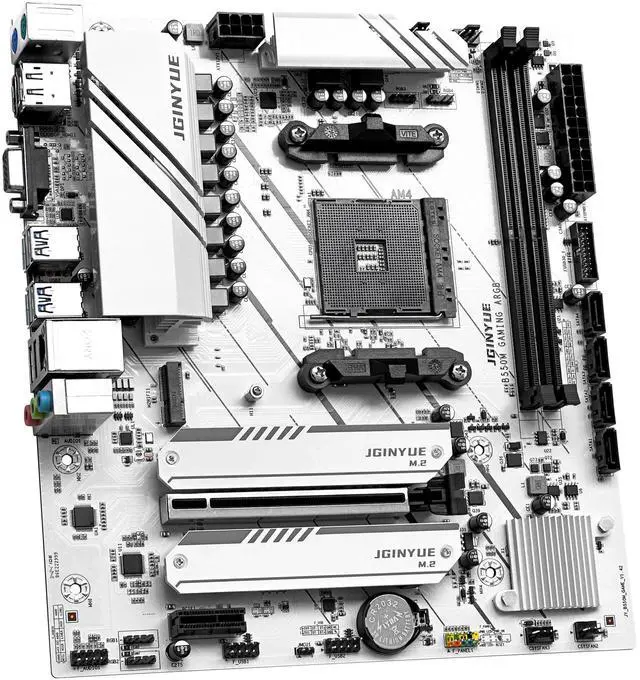

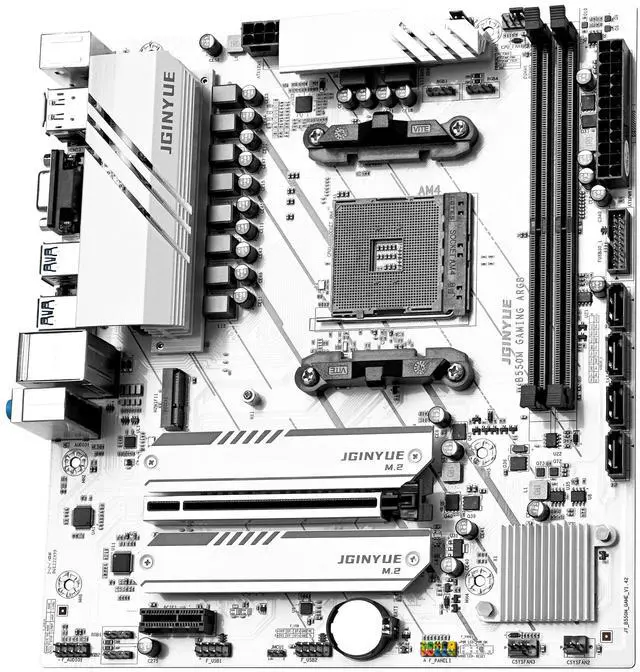

JGINYUE B550M GAMING ARGB AMD Motherboard DDR4, AM4 Socket, M.2 NVMe, WiFi, 10-Phase Po Supports Ryzen R5 4000/5000 Series Processors M-ATX
- Supports AMD AM4 4000 and 5000 series processors
- Supports dual channel 2 DDR4 memory slots with a maximum capacity of 64GB
- Memory frequency: 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
- Display interface: 1 HDMI, 2 DP interfaces
- 4 SATA3.0, 1 M.2 NVME protocol interface (directly connected to CPU for automatic recognition 3.0 or 4.0), 1 M.2 NVME protocol 3.0 interface
- 4 USB 3.2 and 2 USB 2.0 in the rear; Front 1 USB 3.2 pin, 1 USB 2.0 pin
- 1 PCI Express x16 slot (directly connected to CPU automatically recognized by CPU)
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

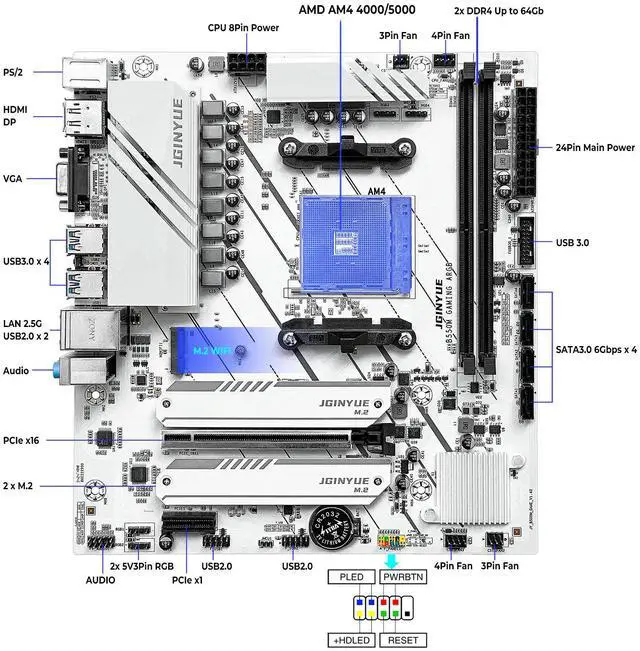

Memory slot: 2xDDR4 memory slots
Memory capacity: Maximum support for 64GB (32GB * 2)
Memory frequency: Dual channel support 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)

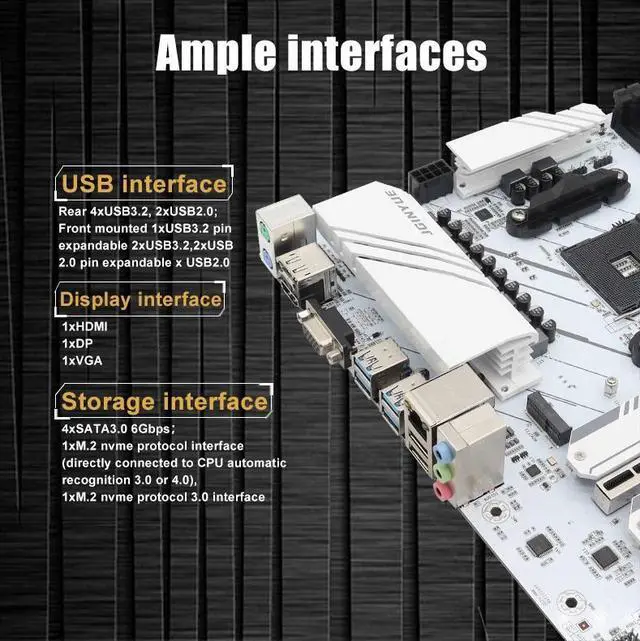

Display interface: 1xHDMI,1xDP,1xVGA
Storage interface: 4xSATA3.0 6Gbps; 1xM.2 nvme protocol interface (directly connected to CPU automatic recognition 3.0 or 4.0), 1xM.2 nvme protocol 3.0 interface

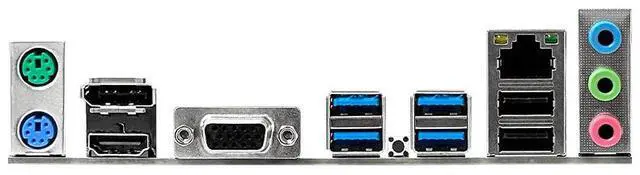

USB interface: Rear 4xUSB3.2, 2xUSB2.0; Front mounted 1xUSB3.2 pin expandable 2xUSB3.2, 2xUSB2.0 pin expandable x USB2.0
PCIe interface: 1xPCI Express x16 slot (directly connected to CPU automatically recognized based on CPU), 1xPCI Express x1 slot
Wireless interface: 1xWiFi interface (compatible with PCIe protocol)
Onboard sound card: Realtek ALC897
Onboard network card: Realtek 8111H
Power socket: Mainboard powered by 24 pins, CPU powered by 8 pins
Fan pin: 2x4 needles 2x3 needles
Number of power supply phases: 10 phase power supply
PCB layers: 6-layer PCB
RGB pin: 4xRGB 5V 3-pin

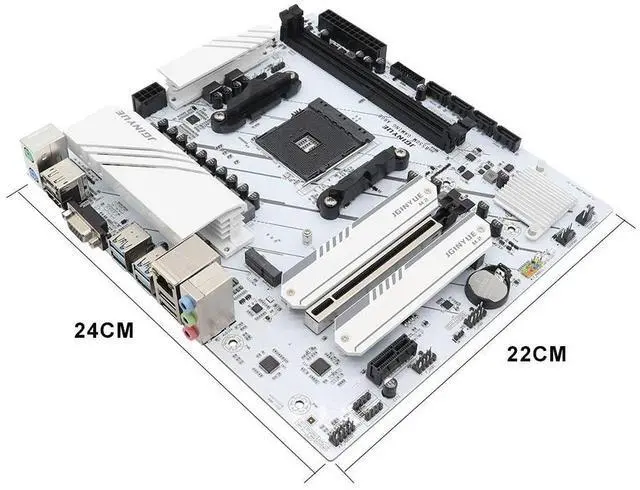

Size specifications: 24cmx22cm M-ATX
support system: Windows10;Windows11
Other interfaces: 1 one click BIOS clear button; PS/2 keyboard and mouse interface
