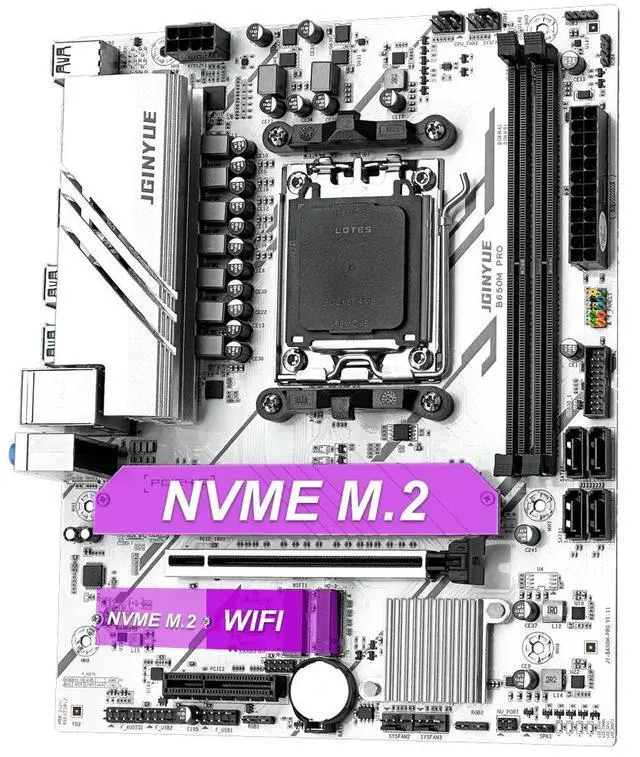

JGINYUE B650M PRO AMD AM5 Motherboard DDR5 6000+MHz Ryzen 7000/8000/9000 Serie M.2 NVME 4.0 PCI Express x16 Micro ATX
- Noted :This motherboard did not including wifi Module ,if you need wifi module ,please contact our sales for help.
- Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors
- Supports dual channel 2 DDR5 memory slots with a maximum capacity of 64G
- Memory frequency: 4800 to 6000+MHz
- Display interface: 1 HDMI, 1 DP interface
- 4 SATA3.0, 2 M.2 NVME protocol 4.0 interfaces
- 1 PCI Express x16 slot and 1 PCI Express x4 slot
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now

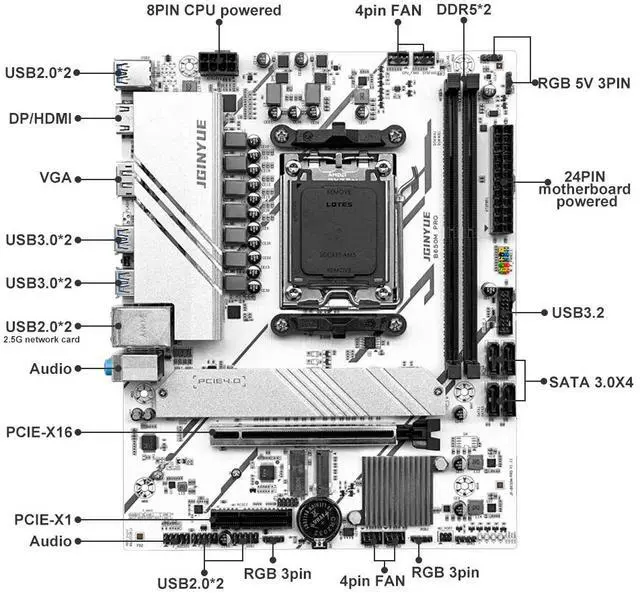

Motherboard model:B650M PRO
Chipset:AMD B650 chipset
CPU pins:Supports AMD AM5 Ryzen 7000/8000/9000 series desktop processors
Memory slot:2 DDR5 memory slots
Memory capacity:Maximum support for 64G
Memory frequency:Dual channel support 4800~6000/6400 (O.C)/6800 (O.C) MHz
Display interface:1 HDMI, 1 DP
Storage interface:4 SATA3.0 6Gbps; 2 M.2 nvme protocols 4.0

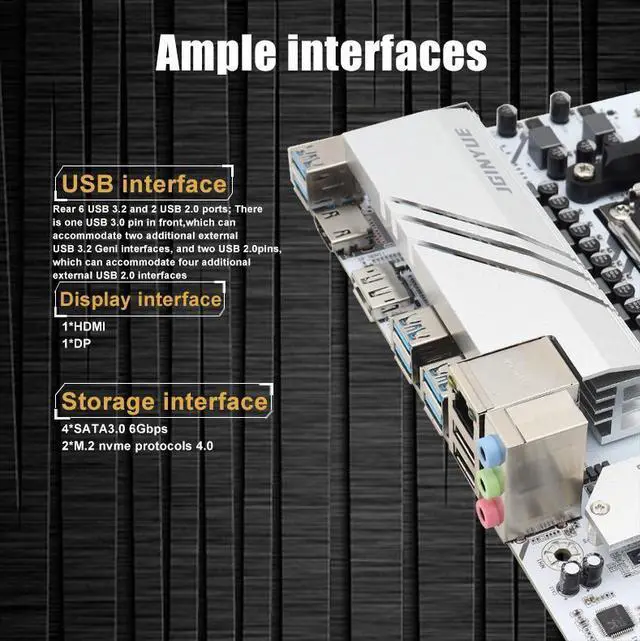

USB interface:Rear 6 USB 3.2 and 2 USB 2.0 ports; There is one USB 3.0 pin in front, which can accommodate two additional external USB 3.2 Geni interfaces, and two USB 2.0 pins, which can accommodate four additional external USB 2.0 interfaces
PCIe interface:1 PCI Express x16 slot, 1 PCI Express x4 slot
Wireless interface:1 WiFi interface (compatible with PCIe protocol)
Onboard sound card:Realtek ALC897
Onboard network card:Realtek 8111H
Power socket:Mainboard powered by 24 pins, CPU powered by 8 pins
Fan pin:4 pieces with 4 needles
RGB pin:4 RGB 5V 3-pin (MCU control chip)
Number of power supply phases:9-phase power supply

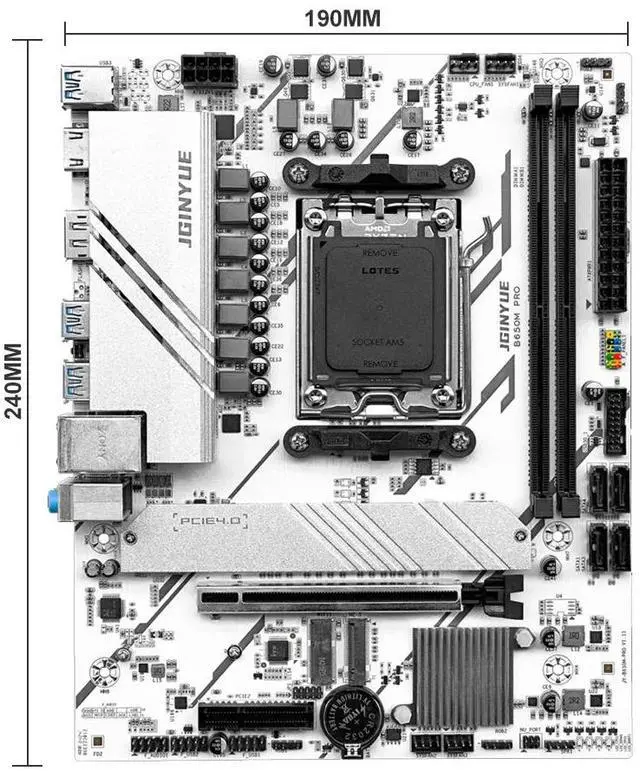

Size specifications:24cmx19cm M-ATX
Support system:Windows10;Windows11
Other interfaces:1 one click BIOS clear button; 4 diagnostic lights; 1 SPK1 buzzer pin
