JGINYUE B850M Snow Dream WiFi AMD Motherboard for AM5 Ryzen 9000series MAX to 9950X3D Desktop DDR5 128GB RAM PCIe5.0 M.2 5.0 Type-C M-ATX
- Socket AM5 supports AMD Ryzen 9000/8000/7000 series desktop processors
- 4x DDR5 UDIMM, Maximum memory capacity of 192GB, supporting DDR5 4800-7000 (OC) MT/s
- 2xSATA3.0 3xM. 2 slots/1 * PCIe 5.0x4/2 * PCIe 4.0x4
- 1xPCIe 5.0X16 slot 1xPCIe 4.0X16 slot X4 speed
- 4xARGB 5V3 pin (MCU independent control chip)
- 1xType-E slot, expandable with 1 10Gbps Type-C interface, 1xType-C slot
- 1x2.5Gbps Ethernet interface
- 1xWiFi interface (onboard WiFi6E module with antenna)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
B850M Snow Dream WIFI
Motherboard model: B850M Snow Dream WIFI
CPU socket: AM5 supports AMD Ryzen 9000/8000/7000 series desktop processors
chipset: AMD B850

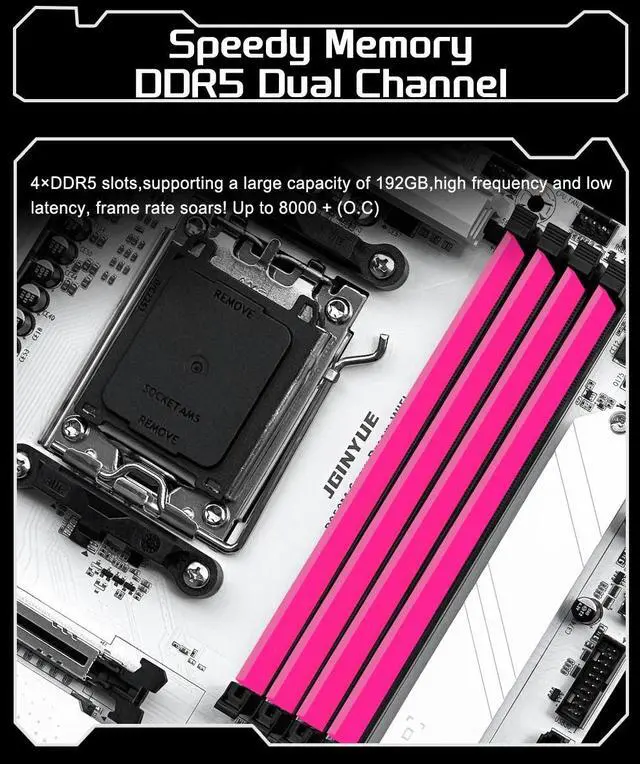

Memory slot: Supports 4x DDR5 UDIMM, maximum memory capacity of 192GB, memory support DDR5 4800-7000 (OC) MT/s, Ryzen Maximum overclocking frequency of 8000 series processors: maximum speed up to 7000+MT/s * [1DPC 1R dual channel with two single-sided granular memory inserts]
Storage interface: 2xSATA3.0 3xM. 2 slots/1 * PCIe 5.0x4/2 * PCIe 4.0x4
PCIe slot: 1xPCIe 5.0X16 slot 1xPCIe 4.0X16 slot X4 speed
USB interface: 4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2
ARGB needle arrangement: 4xARGB 5V3 pin (MCU independent control chip)

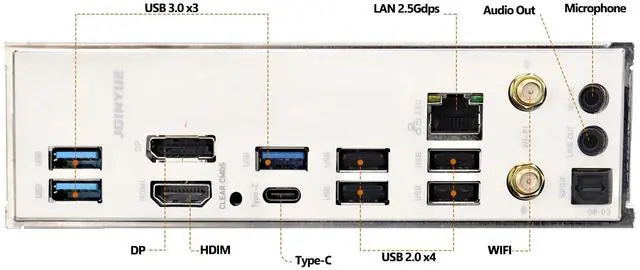

Display interface: 1xHDMI 1xDP
Type-C interface: 1xType-E slot, expandable with 1 10Gbps Type-C interface, 1xType-C slot
Fan pin: 4x4 needle arrangement

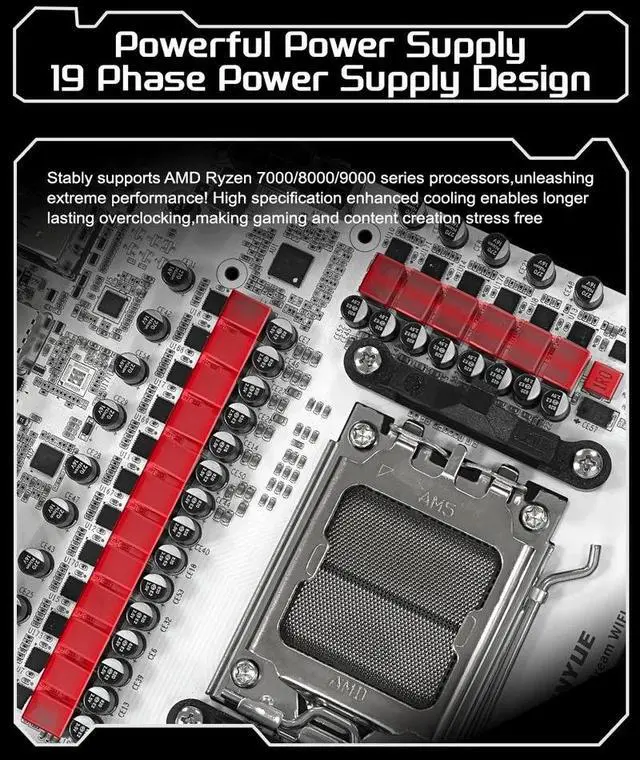

Number of power supply phases: 19 phase power supply
WiFi interface: 1xWiFi interface (onboard WiFi6E module with antenna)
Network: RTL8125BG 2.5G Ethernet chip
Audio chip: Realtek ALC897
Specification: 24.5x24.5cm M-ATX
Other interfaces: 1xCMOS button diagnostic light
