The width of the JONSBO C6 case is 202mm.

does it include a case fan?

The product supports fan options, including positions for a bottom fan (1 x 120mm or 1 x 140mm), front fan (1 x 120mm), and top fan (1 x 120mm or 1 x 140mm), but it does not specify if a case fan is included.

How easy is it to access the interior components for upgrades or maintenance with the tool-free open design of the upper cover and side panel?

The design features an easy and quick disassembly with a tool-free open upper cover and side panel, which facilitates access to the interior components for upgrades or maintenance.

Can this case accommodate a graphics card, and if so, what is the maximum GPU length it can support?

Yes, this case can accommodate a graphics card with a maximum GPU length of 220-255mm.

What type and number of cooling fans can be installed in this mesh case, and are any fans included with the purchase?

The case supports a total of 5 fan options: Bottom - 1 x 120mm or 1 x 140mm, Front - 1 x 120mm, and Top - either 1 x 120mm or 1 x 140mm. No fans are specified as included with the purchase.

$60^.00

$79.99

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list(Found on 9 wish lists)

Sold by JONSBO

Top Rated

4.7 (389 seller ratings)

Shipped by Newegg

Meet Your Seller

JONSBO

See Seller Store

JONSBO C6 WHITE MATX Mesh Case,Simple Compact Desktop Micro ATX Chassis,1+2 Disk Bays Steel Plate Case,ATX Power Bite (L185mm Max.),Support 75mm CPU Cooler,Upper Cover/Side Panel Tool-free Open,White

Name: JONSBO C6 WHITE MATX Mesh Case,Simple Compact Desktop Micro ATX Chassis,1+2 Disk Bays Steel Plate Case,ATX Power Bite (L185mm Max.),Support 75mm CPU Cooler,Upper Cover/Side Panel Tool-free Open,White
Uploaded: 2026-01-14
Description: JONSBO C6 WHITE MATX Mesh Case,Simple Compact Desktop Micro ATX Chassis,1+2 Disk Bays Steel Plate Case,ATX Power Bite (L185mm Max.),Support 75mm CPU Cooler,Upper Cover/Side Panel Tool-free Open,White

(34)(27) Write a Review

Options: C6 White

C6 Black
C6 White
C6-ITX Black
C6-ITX White
C6 MAX BLACK

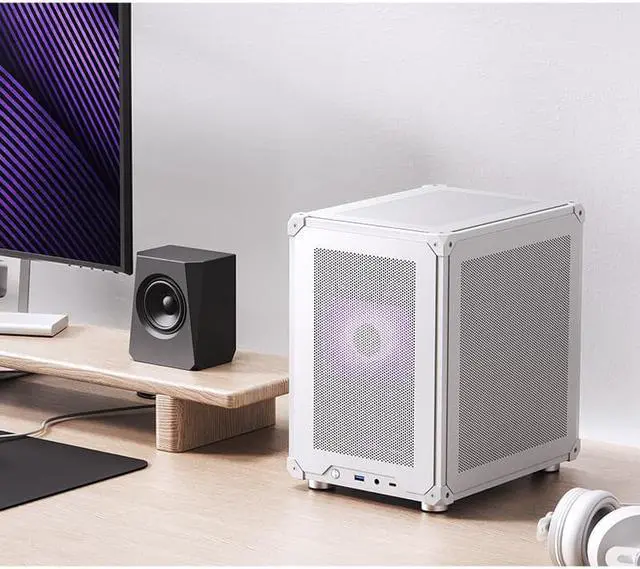

Simple Compact Desktop Micro ATX mesh chassis:
Heat free-All sides in mesh, Front/Upper/Lower 3 fan positions

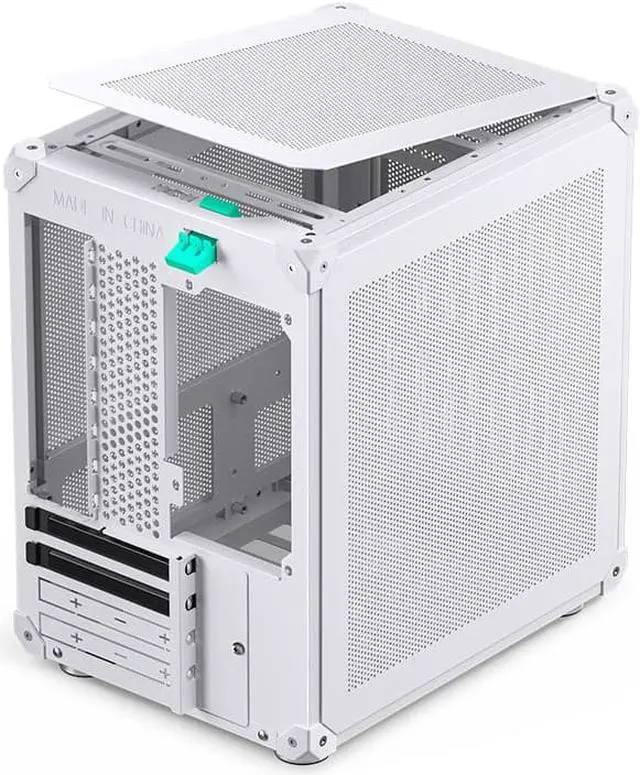

Easy and quick disassembly design-
Upper Cover/Side Panel Tool-free Open
Removable ventilation grille on the front panel for easy installation of the hard disk drive

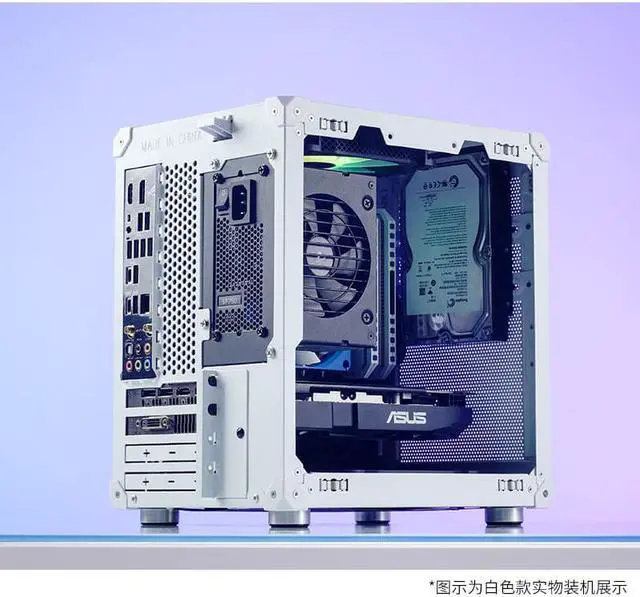

Hardware Support :
Compatible motherboard: ITX/M-ATX ( 2 project references)
Drive Bay:3.5HDD *1 or 2.5SSD*2
Front interface:Type-C(20PIN)/USB3.0*1/AUDIO*1+MIC*1 (2 IN 1)
ATX PSU 185mm
Cooler support 75mm
GPU support 200-255mm

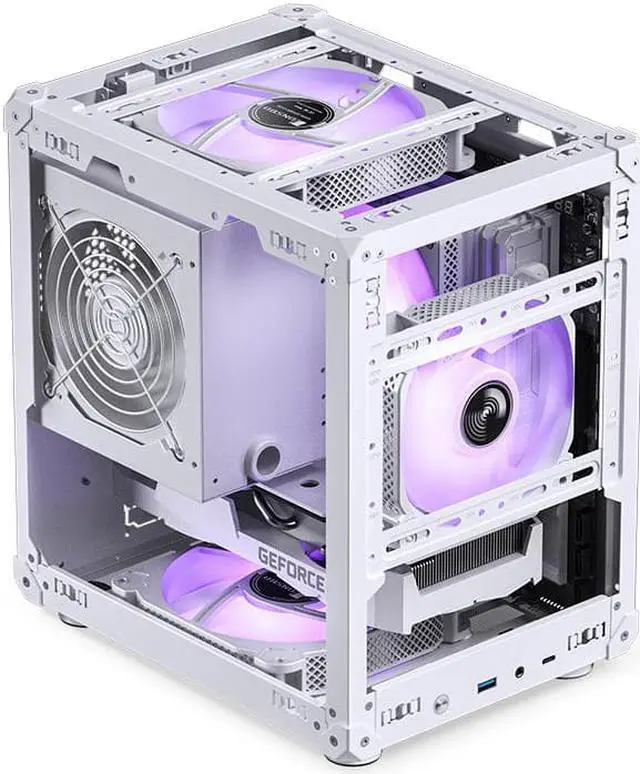

Fan: Top plate 120mm*1 or 140mm*1 (Optional)
Bottom 120mm or 140mm*1
Front 120mm*1or HDD
Material:0.7mm steel plate
Color :White

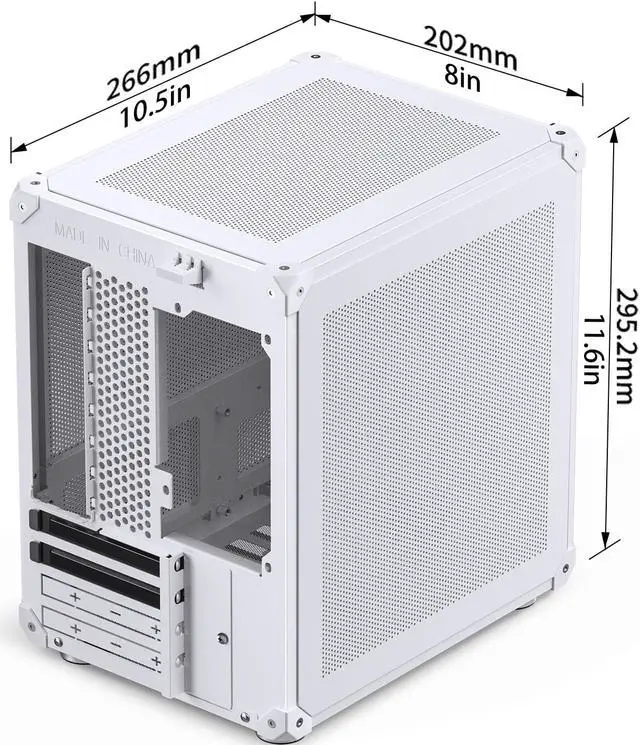

Size :202mm(W) x266mm(D)x295.2mm(H) (Include the footpad)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (34)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

JONSBO C6 BLACK MESH MATX Computer Chassis

Model
Brand	Jonsbo

Details
Type	Micro ATX / Mini-ITX
Color	White
Case Material	Steel
Motherboard Compatibility	Micro ATX / ITX
Dust Filters	Bottom

Expansion
Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	2

Cooling System
Fan Options	Bottom - 1 x 120mm / Bottom - 1 x 140mm / Front - 1 x 120mm / Top - 1 x 120mm / Top - 1 x 140mm

Dimensions & Weight
Max GPU Length	220-255mm
Max CPU Cooler Height	75 mm
Max PSU Length	185 mm

Additional Information
First Listed on Newegg	May 16, 2023
