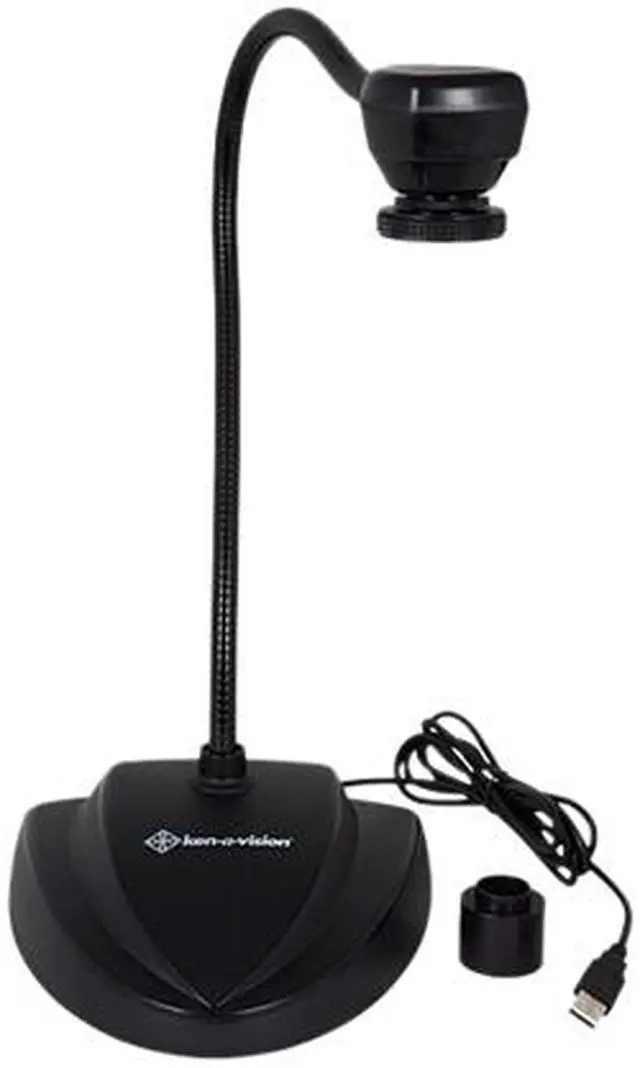

Ken-A-Vision Digital Vision Viewer 1280 x 720 Document Camera
- 1280 x 720
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Ken-A-Vision, Inc. Digital Vision Viewer
| Brand | Ken-A-Vision |
|---|---|
| Model | Digital Vision Viewer |
| Cabinet Color | Black |
|---|
| Native Resolution | 1280 x 720 |
|---|
| Lens | 6mm Lens Manual Focus Digital Zoom: Controlled by software buttons up to 16x |
|---|
| USB | USB 2.0 compliant |
|---|
| Users Controls | White Balance: Auto or manual controlled by software buttons Color/B&W: Black and White controlled by software buttons Gamma Adjustment: Auto or manual controlled by software buttons Negative/Positive: Controlled by software buttons Image Rotation: 360 Degrees in both directions controlled by software buttons Capture/Freeze: Freeze image via software button Audio Recording: Synchronized recording via software buttons Image Compression: JPEG Annotation: in software or working with Interactive Whiteboard interfaces Light Control: Low Light achieved through CMOS and varied through software with Memory Control |
|---|---|
| Features | Image Sensor: 1/4" CMOS Pixel Count: 1280(H) X 1024(V) Frame Rate Variable with selected screen size Default 13 fps at max resolution of 1280 X 1024 (1.3) VGA 30 fps at resolution of 640 X 480 Field of View: 11.5" X 7.5" / 29.21cm X 19.05cm OSD: Controlled by software buttons Output Resolution: HD 720P Output: VGA, RGB (DVI, HDMI depending on your computer's configuration) RS232: via Software interface of computer Lighting: Minimal greater than 20 lux NO ACCESSORY LIGHTS REQUIRED Cross Platform OS: Windows, Mac, LINUX UVC Driverless: Universal Video Class NO DRIVER required to operate Advance Imaging Software: For Science, Math or Geography Studies to include 3D rendering, measurement of varied angles, counting, and much more Average Set up time: less than 5 minutes for 1 - 1,000 units using MSI for Cross platform software installations Free Software: For the life of the product on software and hardware IWB Compliant: Interactive White Board Compliant for most current boards Viewing Angle: 60 degree: diagonal, 50 degree: Horizontal Goose Neck: 360 Degrees X 180 Degrees Memory Free Surgical Flexible Neck Manual focus camera head Small, dynamic base with no confusing buttons Factory-installed USB cable Sturdy, flexible neck does not sag Compatible with interactive whiteboards |
| Regulatory Approvals | CE, FCC, RoHS, ISO 9001-2008 |
| Power Supply | 5 VDC, 200 mA from USB port ONLY meeting green initiative |
|---|
| First Listed on Newegg | June 27, 2012 |
|---|
