Question 1

Audio quality?
Live audio?
Where is the microphones?
Any other info would be appreciated.
Thanks

Accepted Answer

I can't speak to the audio quality because I'm not using that feature (Interesting, I guess, since I'm an Audio Engineer). In order to record and playback audio, you need a camera with a built in microphone and a cable to support that feature. None of which is bundled with any of the DVR-camera combos. So, you'd have to buy an audio capable camera and cable and add it to the system. The 4 & 8 channel KGuard DVR's have two audio inputs and the 16 channel has four inputs. The 16 channel DVR can also handle more PTZ capable cameras if you plan to use them.

The system:
Overall, I'm not happy with the system and cannot recommend it.
The EL1621 DVR that I bought has multiple issues and I find out (after the sale) that KGuard does not do advance replacement of their products even with the proper RMA. So, if I want to return the DVR for repair of the factory problems, my security system has to be down for the duration. This would have been a deal killer had I known about it in advance.

The image quality 600TVL cameras that come bundled with the DVR are quite good, even at night. Curiously, if you wish to add more cameras, KGuard does not offer more of the same cameras that came with the system but, will steer you to another of their cameras.That said I will get to test KGuard's RMA process because one camera has failed.

Tech help is non-existent. I have emailed them twice with no reply.

I suggest looking at another brand.

Question 2

Why won't oenanswer Dennis's question?

Accepted Answer

what was his querstion

Question 3

I see there are 8 camera cables included, what length are they?

Accepted Answer

The cables are 60'.  Also I was able to install a 2 tb drive with no issue

Brand	KGuard
Model	EL1621-8HW212B-1T
Type	Kit Solution

Camera inputs	16 Channel

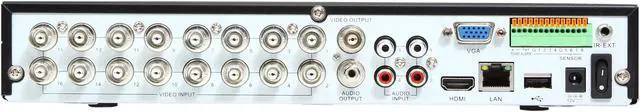

Video Input	16 x BNC
Audio Input	4 x RCA
Resolution Recording	D1: NTSC: 480fps@CIF (360x240), 240fps@HD1 (720x240), 240fps@D1 (720x480) PAL: 400fps@CIF (360x288), 192fps@HD1 (720x288), 192fps@D1 (720x576) 960H: NTSC: 480fps@WCIF (480x240), 176fps@WHD1 (960x240), 176fps@WD1 (960x480) PAL: 400fps@WCIF (480x288), 144fps@WHD1 (960x288), 144fps@WD1 (960x576)
Recording Mode	Always / Manual / Motion Detection / Schedule
Recording Compression	H.264 Level

Video Output	1 x BNC, 1 x VGA, 1 x HDMI
Audio Output	1 x RCA
Resolution Display	VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Storage Capacity	1TB SATA HDD, Up to 2TB
Backup Device	HDD, USB, Network

Network Connection	RJ45, 10M/100M
Network Protocol	DHCP, PPPoE, Static IP

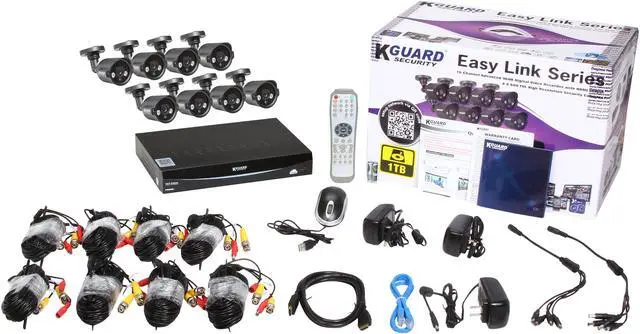

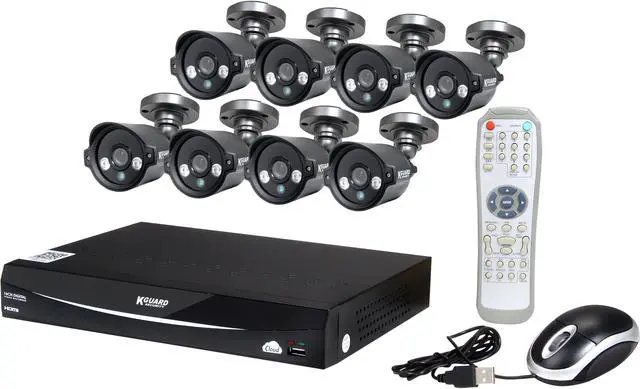

KGuard EL1621-8HW212B-1T 16 Channel H.264 Level Surveillance DVR Kit

Learn more about the KGuard EL1621-8HW212B-1T

Customer Reviews of the KGuard EL1621-8HW212B-1T

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Features	Video Format: NTSC / PAL Playback: Local Playback: Max. 16 Channels Simultaneously Playback Search: Date & Time / Event List / Time Bar Playback Mode: Play, Fast Forward, Fast Rewind, Slow Motion, Zoom. PTZ Control: RS485 Built-In, supports PELCO-P & PELCO-D.
Power Supply	12V/5A

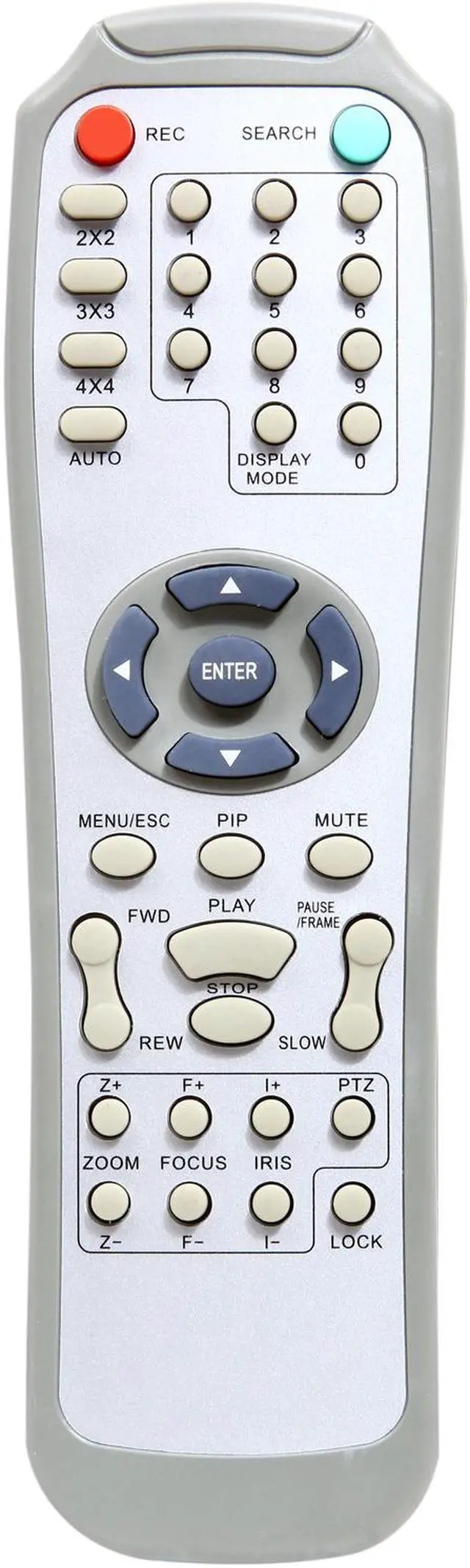

Remote Control	Yes

Bundled Camera Number	8

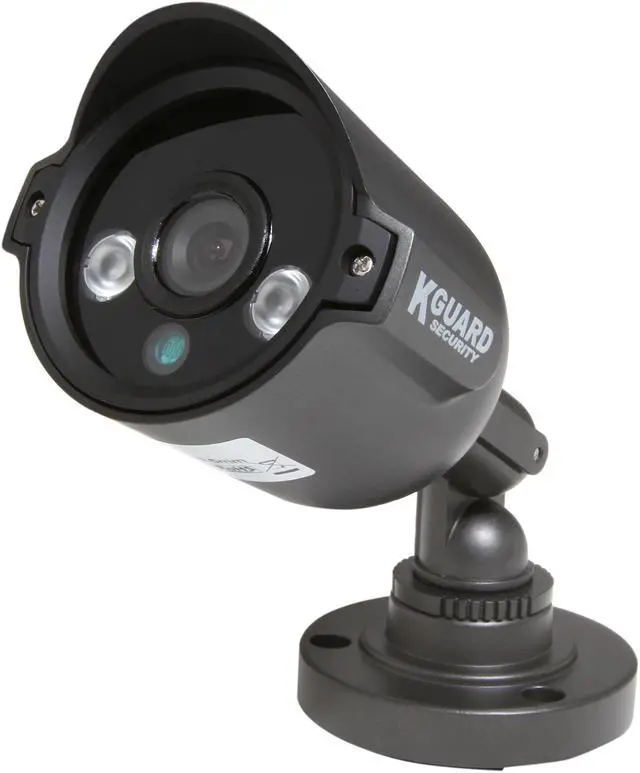

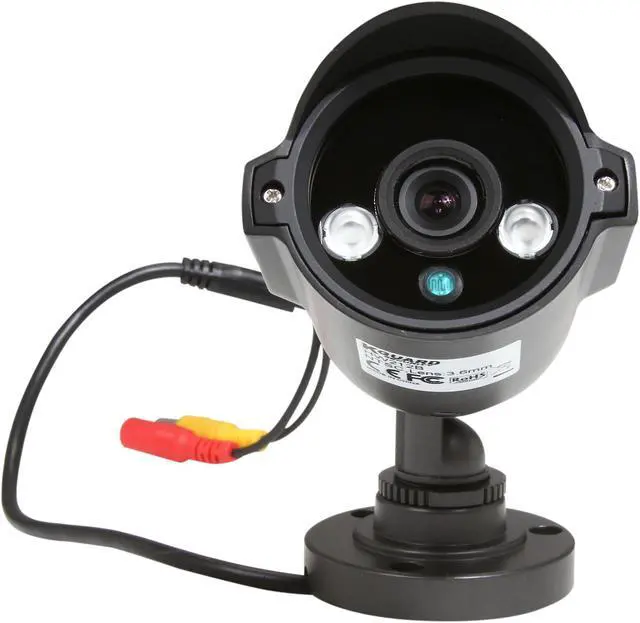

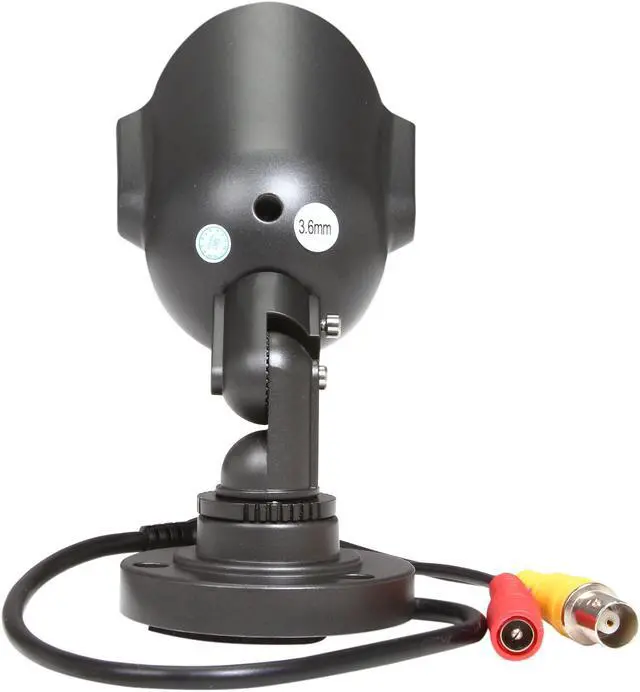

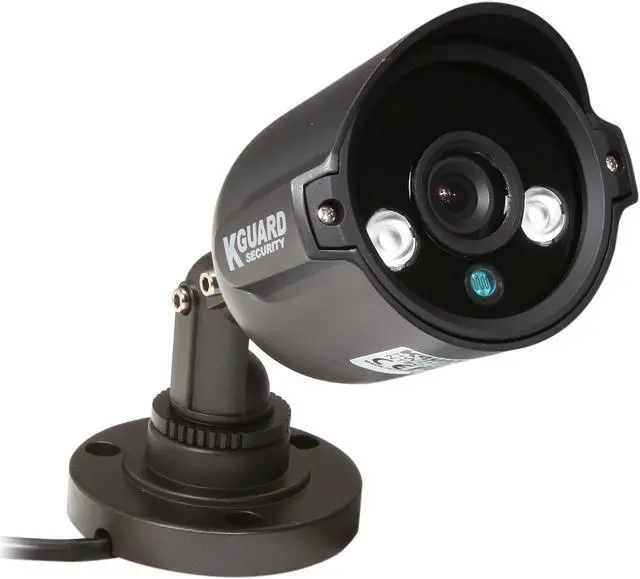

Bundled Camera Spec	Image Sensor: KGUARD Fulcolor Horizontal Resolution: 600 TVL Electronics Shutter: -NTSC 1/60-1/100,000(sec) -PAL 1/50-1/100,000(sec) Lens: 3.6mm Fixed Viewing Angle: 75 Degrees Video Output: 1.0VP-P, 75 ohms S/N Ratio: More than 48dB(AGC OFF) Day / Night Mode: Color during day / switches to B&W at night Minimum Illumination: While Infrared LED on "0" lux Gain Control: Auto Backlight Compensation: Auto Night Vision: Night Vision Distance: 20m / 65ft Illumination: Mini Infrared Array Infra-Red Wavelength: 850nm Infra-Red LED Life: 10,000hrs Indoor / Outdoor: Weatherproof (Both) Body Construction: Aluminum Dimensions - Camera with Stand (WxDxH): 68x58x153mm Weight - Camera with Stand: 240g / 0.53lbs.

Item#: N82E16881377081
