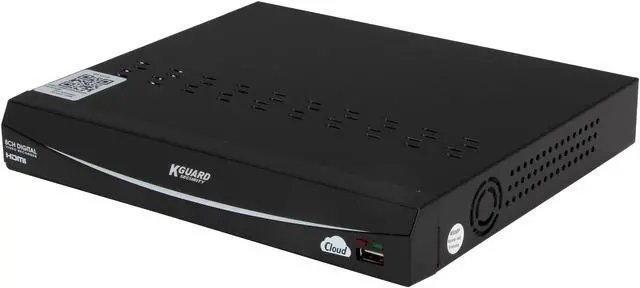

KGuard EL821-4HW212B-500G 8 Channel Easy Link 960H Cloud DVR w/500GB HDD, 4 X 600 TVL Day/Night, In/Outdoor Camera, All-In-One Surveillance Kit

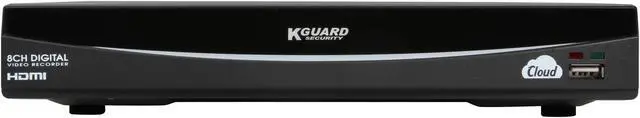

- 960H DVR w/500GB HDD
- QR Code Scan for Faster & Easier Remote Viewing Setup
- Upload to Cloud Storage

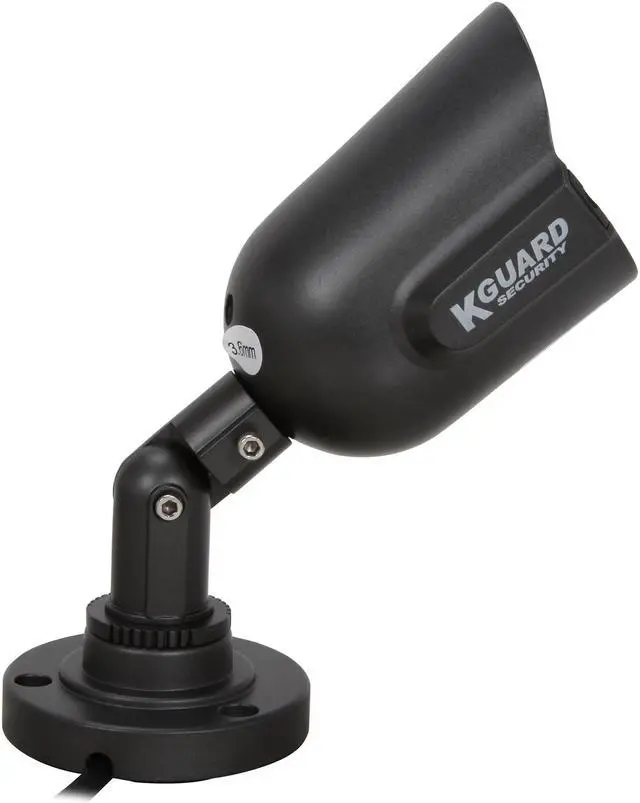

- 600 TVL, Day/Night, In/Outdoor Camera
- 3.6mm Fixed Lens for wide Angle
- Motion/Schedule/Playback
Learn more about the KGuard EL821-4HW212B-500G
| Brand | KGuard |
|---|---|
| Model | EL821-4HW212B-500G |
| Type | Kit Solution |
| Camera inputs | 8 Channel |
|---|---|

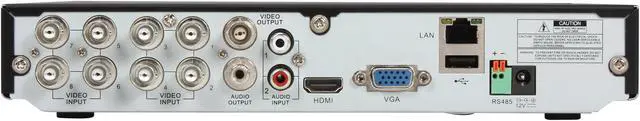

| Video Input | 8 x BNC |
| Audio Input | 2 x RCA |
| Resolution Recording | D1: NTSC: 240fps@CIF (360x240), 240fps@HD1 (720x240), 240fps@D1 (720x480) PAL: 200fps@CIF (360x288), 200fps@HD1 (720x288), 200fps@D1 (720x576) 960H: NTSC: 240fps@WCIF (480x240), 88fps@WHD1 (960x240), 88fps@WD1 (960x480) PAL: 200fps@WCIF (480x288), 72fps@WHD1 (960x288), 72fps@WD1 (960x576) |
| Recording Mode | Always / Manual / Motion Detection / Schedule |
| Recording Compression | H.264 Level |
| Video Output | 1 x BNC, 1 x VGA, 1 x HDMI |
|---|---|
| Audio Output | 1 x RCA |
| Resolution Display | VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p |
| Storage Capacity | 1 x 500GB SATA HDD, Up to 2TB |
|---|---|
| Backup Device | HDD, USB, Network |
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | DHCP, PPPoE, Static IP |
| Features | Video Format: NTSC / PAL Playback: Local Playback: Max. 8 Channels Simultaneously Playback Search: Date & Time / Event List / Time Bar Playback Mode: Play, Fast Forward, Fast Rewind, Slow Motion, Zoom. PTZ Control: RS485 Built-In, supports PELCO-P & PELCO-D |
|---|---|
| Power Supply | 12V/2A |

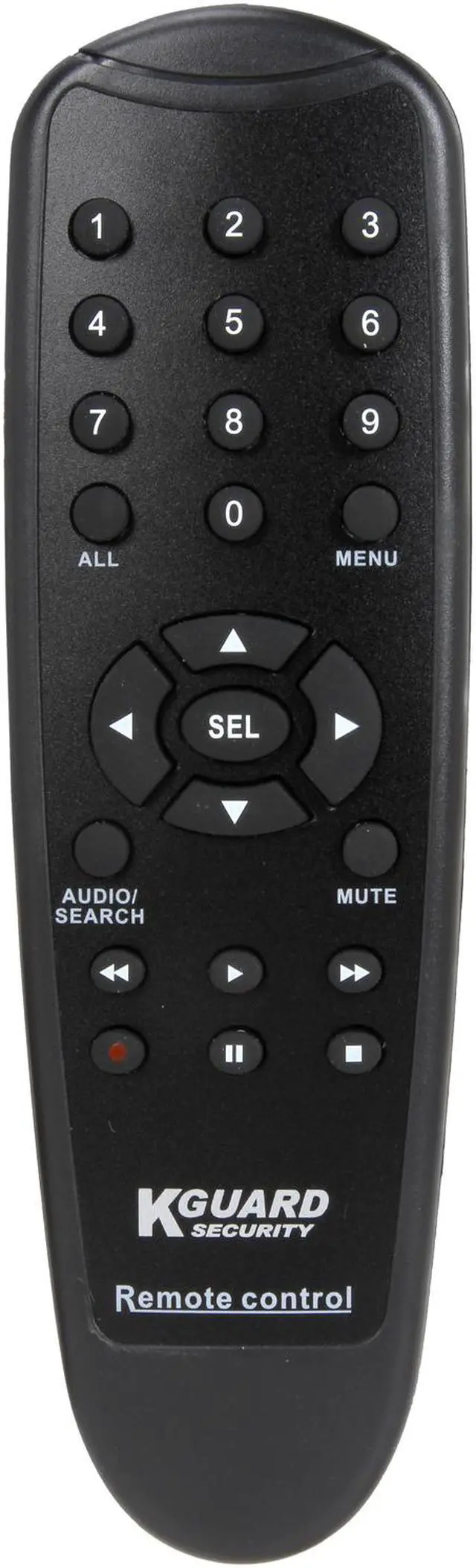

| Remote Control | Yes |
| Bundled Camera Number | 4 |
|---|---|

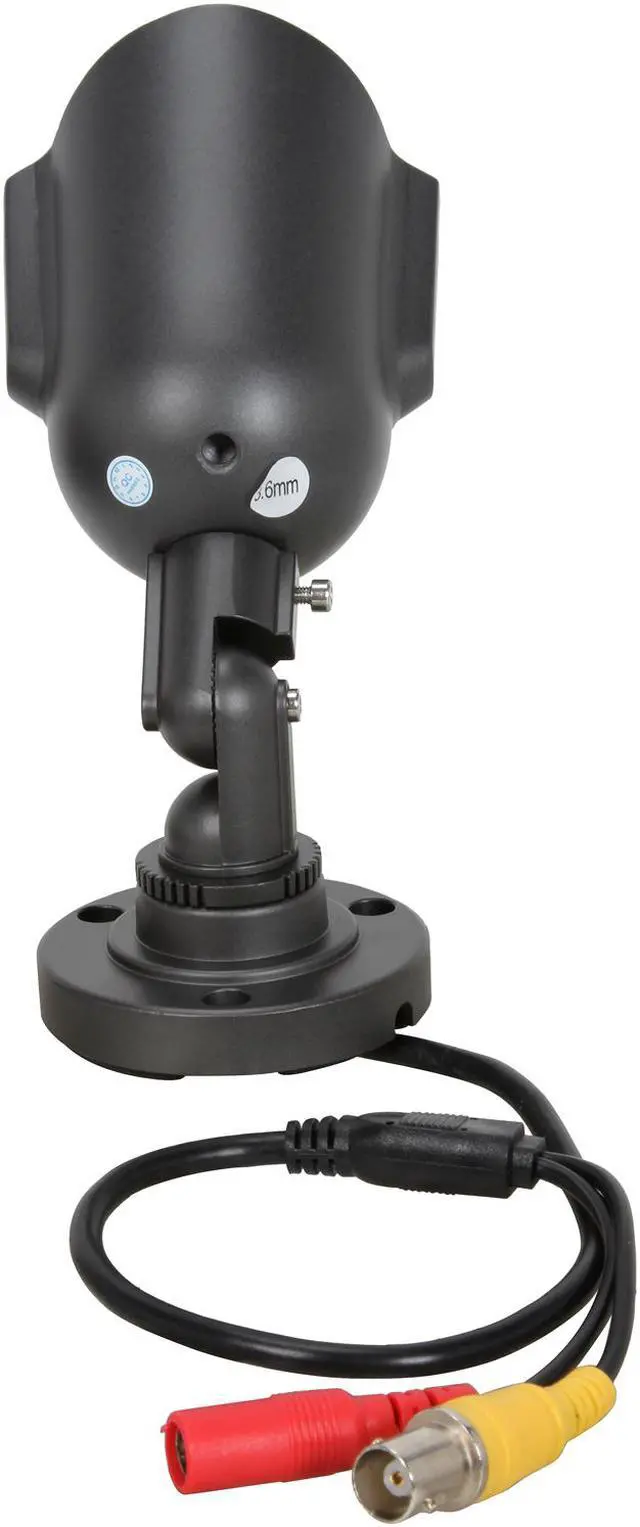

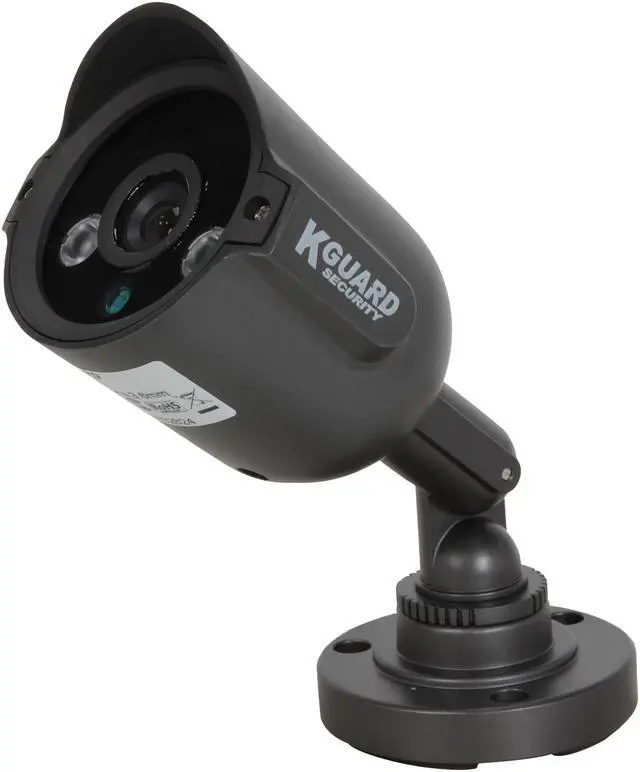

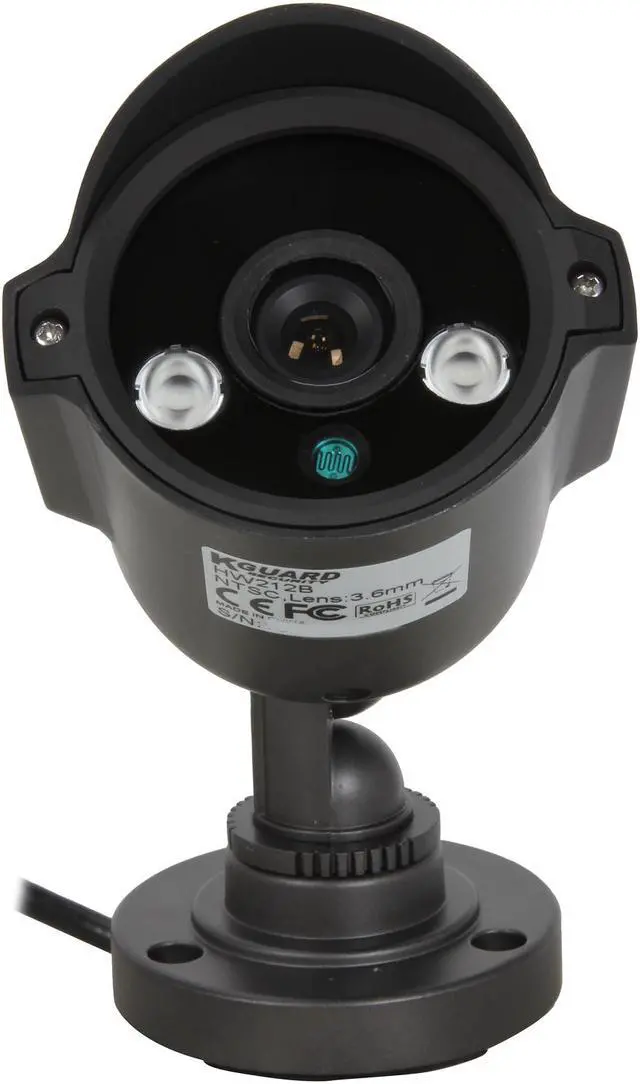

| Bundled Camera Spec | Image Sensor: KGUARD Fulcolor Horizontal Resolution: 600 TVL Electronics Shutter: -NTSC 1/60-1/100,000(sec) -PAL 1/50-1/100,000(sec) Lens: 3.6mm Fixed Viewing Angle: 75 Degrees Video Output: 1.0VP-P, 75 ohms S/N Ratio: More than 48dB(AGC OFF) Day / Night Mode: Color during day / switches to B&W at night Minimum Illumination: While Infrared LED on "0" lux Gain Control: Auto Backlight Compensation: Auto Night Vision: Night Vision Distance: 20m / 65ft Illumination: Mini Infrared Array Infra-Red Wavelength: 850nm Infra-Red LED Life: 10,000hrs Indoor / Outdoor: Weatherproof (Both) Body Construction: Aluminum Dimensions - Camera with Stand (WxDxH): 68x58x153mm Weight - Camera with Stand: 240g / 0.53lbs. |
| Dimensions | 250x230x45 mm |
|---|

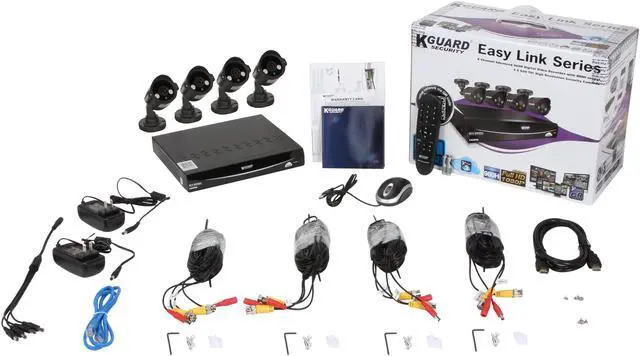

| Package Contents | EL821 DVR Power Adapter HDMI Cable Remote Control USB Mouse Software CD Quick Guide Ethernet Cable 4 x Camera Slim Cable 4-Way Split Power Cable Power Adapter |
|---|
| First Listed on Newegg | October 29, 2013 |
|---|
