Brand | KGuard |
---|---|
Model | KG-S100 |
Type | Standalone DVR |
---|---|
Camera inputs | 4 Channel |
Video Input | 4 x Vp-p 75O BNC |
Audio Input | 1 |
Audio Output | 1 audio output (Mono) |
Display Frame Rate | 120 IPS for NTSC / 100 IPS for PAL |
Recording Frame Rate | Frame: 720 × 480 pixels with 30 IPS < NTSC > / 720 × 576 pixels with 25 IPS < PAL > CIF: 352 × 240 pixels with 120 IPS < NTSC > / 352 × 288 pixels with 100 IPS < PAL > |
Recording Mode | Manual / Timer / Motion / Alarm / Remote |
Storage Capacity | IDE type, ATA66, support HDD x 1, support each HDD capacity over 400GB |
Network Connection | 10/100 Base-T |
---|---|
Network Protocol | TCP/IP, PPPoE, DHCP and DDNS |
Network Remote | Remote control and live view via Ethernet |
Features | Compression format providing crystal clear images with real time performance. Multiplex: Allow live display, record, playback, backup and network operation at the same time. Long-Recording Hours: 500GB HDD can record more than 170 days. (4CH, CIF Best Quality, 15IPS) Backup Function: Support network remote recording & backup Remote Surveillance: Remote surveillance with the licensed software AP and IE browser Web surveillance with 5 users simultaneously Intelligent Motion Trigger Recording: With advanced settings for motion detection, scheduled motion detection recording (4 different adjustable factors for the motion detection sensitivity) and convenient search function, customized security environment is achieved. Alarm triggered recording will send alerts with images to the designated e-mails and FTP address Support pre-alarm recording (8MB) Covert Recording: A mask replaces the live image with a blank screen, and the monitor shows nothing but recording is still on. A/V Support: Support 1 audio-in, 1 audio-out to record sounds Support VGA converter (optional) General: System auto recovery after power reconnected Support daylight-saving function |
---|

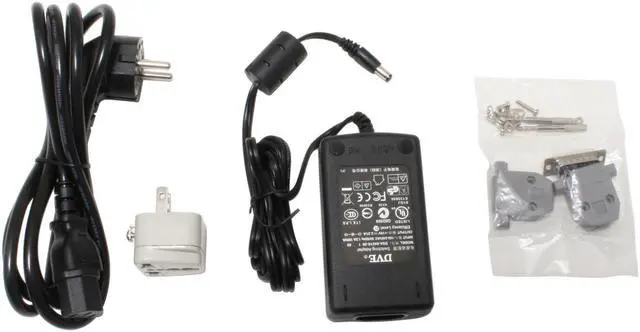

Package Contents | KG-S100 Driver Disk User Manual Software Disk Power Adapter Power Cord Screw Sets |
---|
Date First Available | January 08, 2007 |
---|
Pros: This DVR does its job and well. It is easy to use and quick to setup with detailed documentation. I had motion detection, timed recording and it networked in just a few minutes. The software included works fine and is user friendly. It is easy to search and navigate through archived video. I can monitor my cameras on the net from anywhere and the frame rate is fine. If you need a standalone DVR then this one is worth taking a look at.
Cons: None yet.
Overall Review: Newegg.com is the best.
